4. NOMENCLATURE

4.1. INSTRUMENT DESCRIPTION

4.2. ALIGNMENT MARKS AND HAND PROTECTION

Put the conductor as close as possible to the middle of the jaws on the intersection of the
indicated marks (see Fig. 2) in order to meet the meter accuracy specifications.
Always keep your hands under the hand protection. This protection is always located in a
suitable position to guarantee a correct safety distance from possible exposed or live parts
(see Fig. 2)

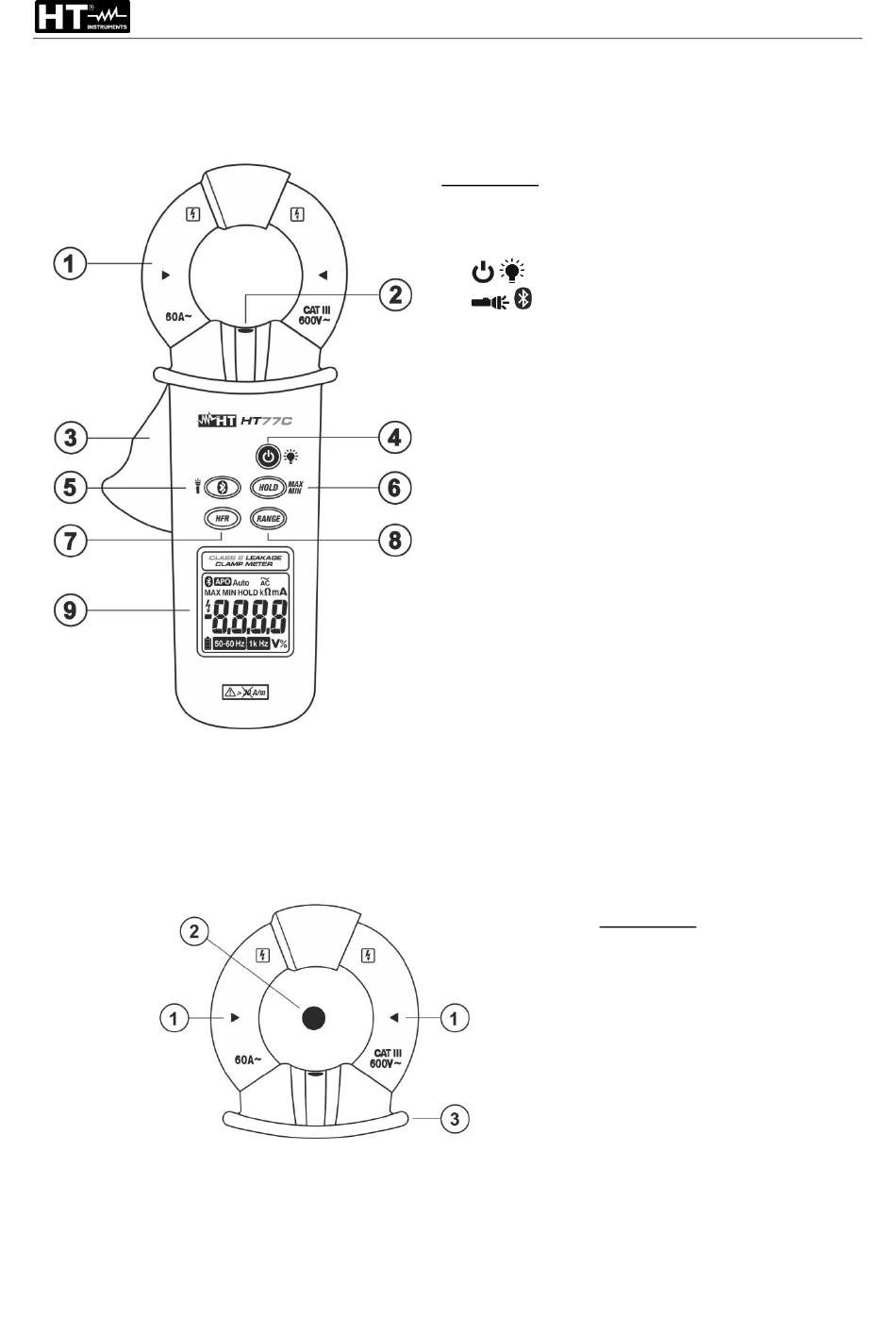

Fig. 1: Instrument description
Fig. 2: Alignment marks and hand protection
CAPTION:
1. Inductive clamp jaw
2. White LED torch
3. Opening lever
4. / key
5. / key
6. HOLD/MAXMIN key
7. HFR key
8. RANGE key
9. LCD display
EN - 5
CAPTION:
1. Alignment marks
2. Cable
3. Hand protection
