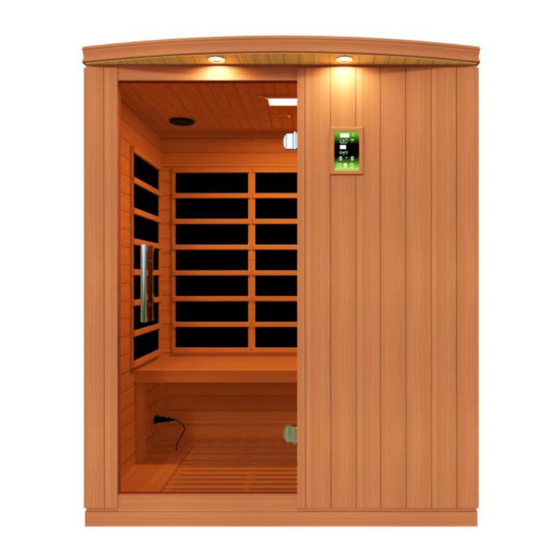

Golden Designs DYNAMIC SAUNA DYN-6210-04 Owner's Manual

2 & 3 person model saunas

Hide thumbs

Table Of Contents

Quick Links

Download this manual

OWNER'S MANUAL

CARBON MODEL SAUNAS

FOR INDOOR USE ONLY

DYN-6210-04 - 120VAC 15 AMP Dedicated Circuit Required

DYN-6310-04 - 120VAC 20 AMP Dedicated Circuit Required

Carefully and thoroughly read this Owner's Manual before using/operating

the sauna. We recommend keeping this Owner's Manual for regular review

and future reference.

DYN-6210-04 / DYN-6310-04

2 & 3 Person Model Saunas

Table of Contents

Need help?

Do you have a question about the DYNAMIC SAUNA DYN-6210-04 and is the answer not in the manual?

Questions and answers

Summary of Contents for Golden Designs DYNAMIC SAUNA DYN-6210-04

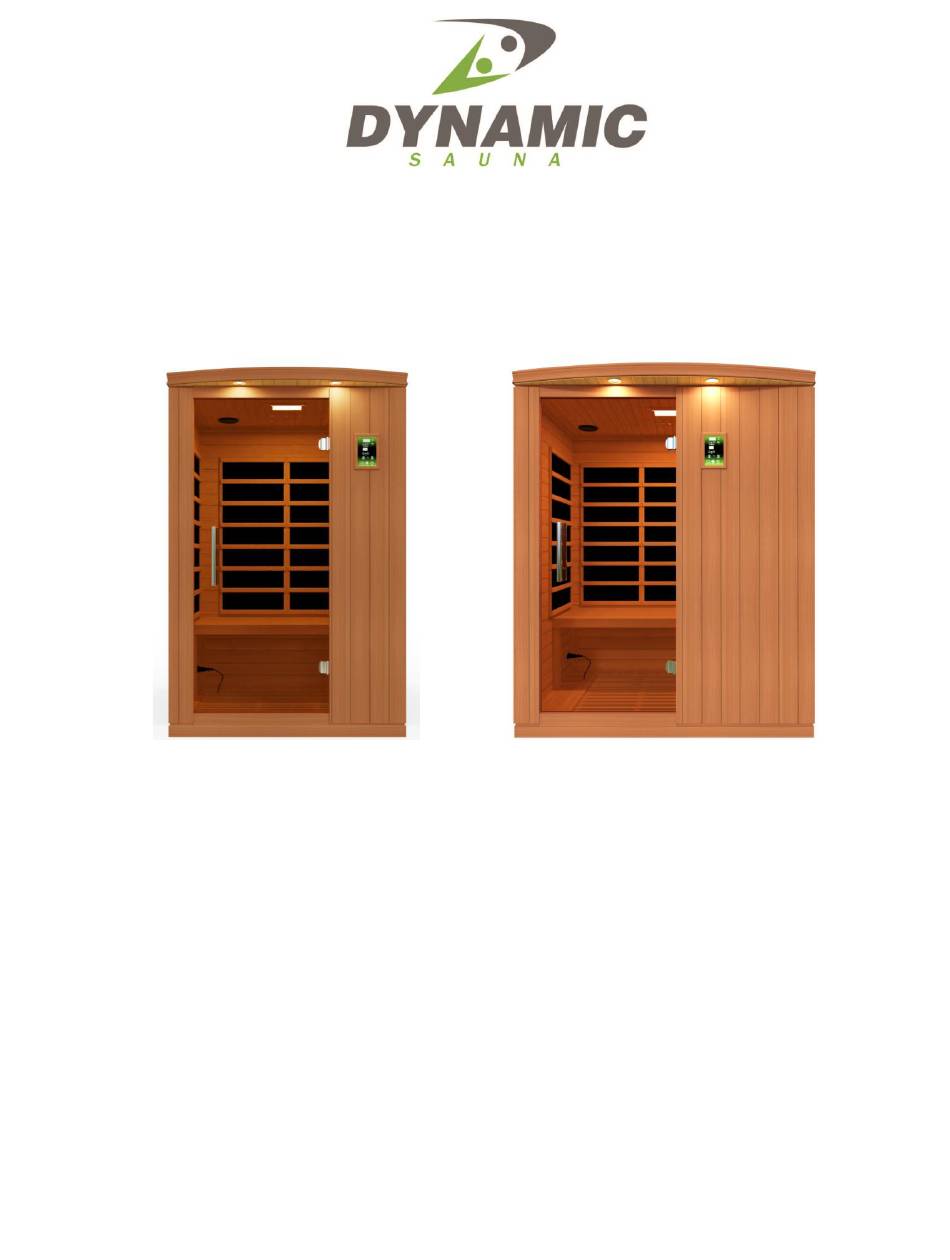

Page 1 DYN-6210-04 / DYN-6310-04 2 & 3 Person Model Saunas OWNER’S MANUAL CARBON MODEL SAUNAS FOR INDOOR USE ONLY DYN-6210-04 - 120VAC 15 AMP Dedicated Circuit Required DYN-6310-04 - 120VAC 20 AMP Dedicated Circuit Required Carefully and thoroughly read this Owner’s Manual before using/operating the sauna.
Page 2: Table Of Contents
TABLE OF CONTENTS Packing List Visual Assembly Diagrams Parts Description Schematic Dimensional Diagram Screw Identification and Location Chart Assembly Instructions Operating the Sauna Tips for Using Your Sauna Safety Instructions Safeguards for Your Sauna Troubleshooting Guide Warranty Warranty Card WARNING: Visually inspect all heaters before assembly to make sure they are not damaged.
Page 3: Are Infrared Rays Safe
What Are Infrared Rays? Infrared is the band of light we perceive as heat. We cannot see this band of light with the naked eye, but we can feel this type of light in the form of heat. Our sun produces most of its energy output in the infrared segment of the spectrum.
Page 4 EMF Levels from Common Homes Sources After many years and numerous studies on EMF exposure, no government body including the Occupational Safety and Health Administration (OSHA) have established permissible exposure limits (PEL). Currently, there is no consensus on the potential health hazard from any exposure to EMF.
Page 5: How It Works
HOW IT WORKS Infrared Saunas differ from traditional saunas in that they use infrared radiant energy to directly penetrate into the body's tissue to produce perspiration. Traditional saunas use steam to heat the air inside the sauna, which then heats your body until you begin to perspire.
Page 6: Visual Assembly Diagrams
*PLEASE READ INSTRUCTIONS BEFORE ASSEMBLY* Visual Assembly Diagarm DYN-6210-04 *The above assembly diagram i s for a quick reference visual guide only. All sauna models are not shown. Parts and accessories may vary and are subject to change. Backrests are sold separately. We have found that starting the assembly process with the floor and front wall panel first may be the easiest, but it is not mandatory.
Page 7 *PLEASE READ INSTRUCTIONS BEFORE ASSEMBLY* Visual Assembly Diagarm DYN-6310-04 *The above assembly diagram i s for a quick reference visual guide only. All sauna models are not shown. Parts and accessories may vary and are subject to change. Backrests are sold separately. We have found that starting the assembly process with the floor and front wall panel first may be the easiest, but it is not mandatory.
Page 8: Parts Description
PARTS DESCRIPTION NOTE: The pictures and diagrams shown within this owner’s manual are representations of this model. Actual model may vary. Design and Construction are subject to change. Backrests are sold separately.
Page 9 PARTS DESCRIPTION NOTE: The pictures and diagrams shown within this owner’s manual are representations of this model. Actual model may vary. Design and Construction are subject to change. Backrests are sold separately.
Page 10: Schematic
SCHEMATIC NOTE: The pictures and diagrams shown within this owner’s manual are representations of this model. Actual model may vary. Design and Construction are subject to change. Backrests are sold separately.
Page 11 SCHEMATIC NOTE: The pictures and diagrams shown within this owner’s manual are representations of this model. Actual model may vary. Design and Construction are subject to change. Backrests are sold separately.
Page 12: Dimensional Diagram
DIMENSIONAL DIAGRAM for DYN-6210-04...
Page 13 DIMENSIONAL DIAGRAM for DYN-6310-04...
Page 14: Screw Identification And Location Chart
Screw Identification and Location Chart...
Page 15 Highlights Power Supply (Control Box) The POWER SUPPLY is the control center of the sauna room. It is installed on the topside of the ROOF PANEL and has inputs/outputs connected to it. (see Figure 1) Figure 1 POWER IN - main power of the sauna room HT1, HT2, HT3, HT4, HT5, HT6 –...
Page 16 III. MP3 Auxiliary Port The MP3 Auxiliary Port allows you to connect a MP3 player or other device with the auxiliary function to the speakers in the sauna room for your listening pleasure. (see Figure 2) Figure 2 Buckles External Buckles The external buckles are used to connect the LEFT and RIGHT SIDE PANELS to the REAR PANEL.
Page 17 V. Panel Descriptions For easier installation, please understand and distinguish the differences between each panel. A. Floor Panel When the floor panel faces upward, you will find the floor heater towards the front of the sauna room. (see figure 5) FLOOR HEATER FLOOR HEATER POWER CORD Figure 5...
Page 18: Assembly Instructions
C. Rear Panel The rear panel is the panel with the buckles. The buckles are mounted on the outside of the rear panel. (see figure 7) Figure 7 D. Understanding The Difference Between The Inside And Outside Of The Rear Panel You will find the heat emitters on the inside of the rear panel.
Page 19 B. Installing the FLOOR PANEL 1. Place the FLOOR PANEL on the floor. Make sure the front of the FLOOR PANEL is facing the correct direction. (see Section V. Panel Descriptions) C. Installing the FRONT PANEL and SIDE PANELS 1. Place the FRONT PANEL onto the recessed area on the FLOOR PANEL.
Page 20 together at an angle - as the wall panels slide downward, the guide and guide insert brackets pull the wall panels tighter together. D. Installing the REAR PANEL 1. Remove the protection paper from the buckles (tape). Place the REAR PANEL onto the FLOOR PANEL.
Page 21 F. Installing the ROOF PANEL 1. The side of the ROOF PANEL with the power supply box faces upward. 2. The edge nearest the power supply is the front of the ROOF PANEL. Be careful of the wires coming from the REAR PANEL when you set the ROOF PANEL down onto the panels.
Page 22 H. Installing the TEMPERATURE SENSOR 1. Enter the sauna and remove the protective covering from the TEMPERATURE SENSOR. Situate the TEMPERATURE SENSOR so that it is vertical, pointing downward. (see Figure 13) Figure 13 Note: Some sauna models are shipped with a spare TEMPERATURE SENSOR in case the TEMPERATURE SENSOR is damaged in transit.
Page 23: Operating The Sauna
Figure 15 Assembly Complete Operating the Sauna NOTE: Before the sauna is turned on, remove plastic protective covering from the CONTROL PANELS. Please check and confirm that the connections to the POWER SUPPLY (including the power cord), HEAT EMITTERS, CD/RADIO, and TEMPERATURE SENSOR are connected properly and are snug and tight.
Page 24 Control Panel Power On/Off: Press to control the main power of the sauna Power Indicator: Indicates the status of the sauna’s main power Work Start/Stop: Press to control the working functions of the sauna Work Indicator: Indicates the working status of the sauna Heat Indicator: Indicates the status of heating function Light: Press to control the lighting function Time Display: Displays the heating time of the sauna in minutes...
Page 25 degrees Fahrenheit / 46 degrees Celsius as a reference starting point for a time period of about 20 to 30 minutes (this represents the actual time you are in the sauna at the desired temperature). As you become more comfortable and familiar with the sauna, you can increase the temperature and time period according to your personal preference.
Page 26 10. Bluetooth can be used on the sauna room. You first will need to pair your device with the sauna room. Open your device’s Settings Menu and then locate and open Bluetooth. You will find “iSauna” or “BT100” or “Bluetooth”. Now you can pair your device.
Page 27: Tips For Using Your Sauna
Use 2 towels during your sauna session. Fold the first towel several times and place it on the bench. As you sit on this towel, it will absorb a majority of your perspiration while adding comfort as you sit on the bench. Use the second towel to either constantly wipe the perspiration from your body to perspire faster and also to avoid having too much perspiration dripping onto the floor.
Page 28: Safety Instructions
opened and let your body cool down. Once your body has cooled down and you feel comfortable, you can exit the sauna. After about fifteen minutes and when your body has completely cooled down, you can take a shower or bath to clean your body.
Page 29: Safeguards For Your Sauna
problems, please contact the manufacturer or its agent immediately to avoid hazardous situations. 15. Make sure that the electrical outlet is in good working order. A common problem with electrical outlets is loose wiring on the connection points of the terminals of the outlet.
Page 30: Troubleshooting
cleaning. 3. The power supply cord should be routed so that it is not walked on or pinched by any object that may be placed against it. 4. When replacement parts are required, be sure they meet the specified requirements of the manufacturer. Unauthorized substitutes may result in a fire, electrical shock, or other hazardous situations.
Page 31 up to the rooftop of the sauna and locate the temperature sensor connection wires near the air vent towards the rear of the sauna. After you have located the wires labeled “TEMP SENSOR”, disconnect the connection and reconnect the connection. If you have a second person available, please have them continue to look at the control panel as you disconnect and reconnect the temperature sensor connection to see if the “-L”...
Page 32 panel, then the power supply may need to be reset. Go to the roof of the sauna and locate the power supply. Press the RESET button to reset the power supply. The RESET button is on the same side of the power supply as the power cord.
Page 33 2. Remove the exterior wood frame around the exterior control panel. Simply unscrew the screws holding the wood frame on. 3. Once the wood frame has been removed, lift the control panel up and out. On the backside of the control panel, you will see a connection plug.
Page 34 Solution: If you are hearing a humming noise from either speaker or both speakers while the Bluetooth feature is connected with your musical device, then there may be an issue with the control panel(s). To confirm this, please connect your musical device using the MP3 AUX wire that came with the sauna room to connect your musical device to the sauna speaker system.
Page 35 and time to 90 minutes. Record the starting/beginning temperature and the temperature after 15 minute intervals up to 90 minutes (do not enter the unit or open the door during this test). If the sauna room goes above 130 degrees F (usually after about 40 to 50 minutes of preheating with a beginning temperature above 70 degrees F) at any given time, then we know that the heat emitters are working successfully.
Page 36: Limited Lifetime Warranty
Limited Lifetime Warranty 5 Year Limited Warranty*: Golden Designs, Inc. under the Dynamic brand name warranties the wood, structure, heating elements, and electronics against defects in material and workmanship for a period of 1 to 5 years from the original date of purchase. This sauna is for INDOOR use only.
Page 37 ▪ Outdoor applications ▪ Normal wear and tear or weathering ▪ Use of product not in accordance with instructions ▪ Worn out receptacle Surface cracks are not considered defects in material or workmanship, as they are normal characteristics of all woods. This includes minor cracks due to wood expansion and contraction.
Page 38 PAGE INTENTIONALLY LEFT BLANK...
Page 39: Warranty Card
WARRANTY CARD Congratulations on your purchase of an Infrared Sauna from Golden Designs, Inc. Please take the time to complete the following Warranty Card and mail it back to: Golden Designs, Inc. 3550 Jurupa Street, Unit B Ontario, CA 91761 Please include a copy of your sales receipt showing date of purchase as this will serve as proof of purchase.
