Installation: Case Removal From Skid
Remove Lower Front Panel From Case:
•
To prevent damage to the case, remove the lower front
panel from the case before removing it from the pallet.
•
The lower front panel is held in place by magnets only. No
screw removal is required.
•
Place the lower front panel in a secure location while
removing the case from the pallet.
Remove Lower Rear Panel From Case:
•
To prevent damage to the case, if the lower rear panel is
on the case, lift it UP and OFF.
•
The lower rear panel is held in place by magnets.
•
Place lower rear panel in a secure location while
removing the case from the pallet.
Disconnect Case From Pallet:
•
Remove screws from shipping brackets. Remove and
discard shipping brackets from the pallet.
•
Place J-bar/pry under base frame. Raise the case up
from the pallet to take the weight off the casters.
•
With the case raised, lower the casters all the way down
against the pallet.
•
Remove the rubber shipping blocks.
Fusion® User Manual
Zephyr® User Manual

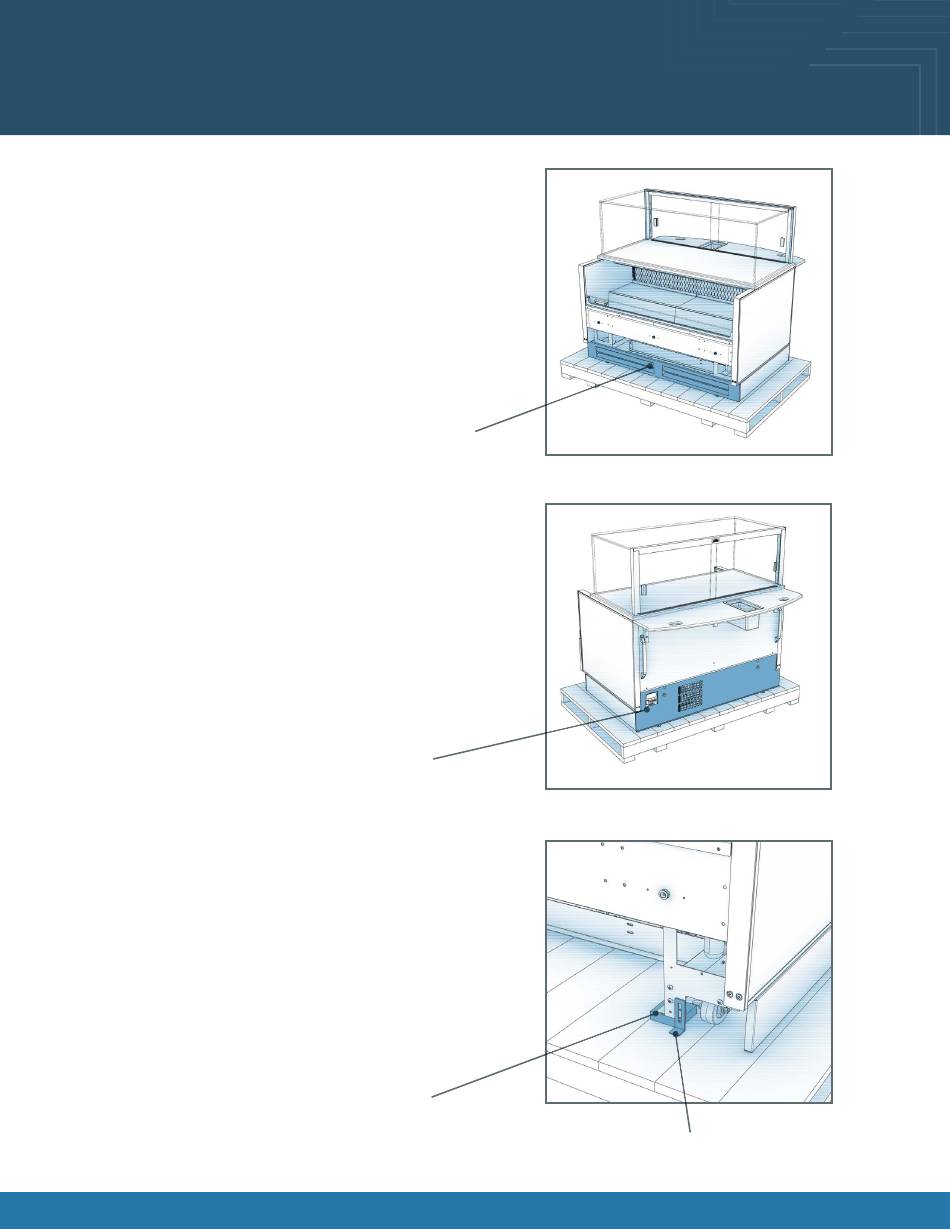

Lower Front Panel
Lower Rear Panel
Rubber Shipping
Block
Shipping Bracket
6
6
