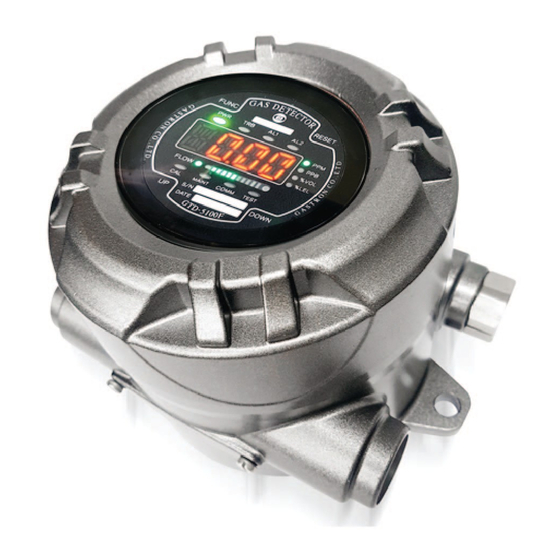

GASTRON GTD-5100F Series Instruction Manual
  1. Manuals
  2. Brands
  3. GASTRON Manuals
  4. Gas Detectors
  5. GTD-5100F
  6. Instruction manual

GASTRON GTD-5100F Series Instruction Manual

Hide thumbs Also See for GTD-5100F Series:
Table of Contents

Advertisement

Quick Links

Download this manual
Gas Leak Alarm Design, Development, Production, Installation and
Additional Services
DOC NO.GT-07220030500
GTD-5100F
Instruction Manual
Revision: 1.15
Please read Manual carefully for correct use.
Copyright ⒞GASTRON, Co., LTD. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GTD-5100F Series and is the answer not in the manual?

Questions and answers

Related Manuals for GASTRON GTD-5100F Series

Summary of Contents for GASTRON GTD-5100F Series

  • Page 1 Gas Leak Alarm Design, Development, Production, Installation and Additional Services DOC NO.GT-07220030500 GTD-5100F Instruction Manual Revision: 1.15 Please read Manual carefully for correct use. Copyright ⒞GASTRON, Co., LTD. All rights reserved.
  • Page 2 GTD-5100F Instruction Manual Thank you for purchasing the product of GASTRON. As a gas detector and gas monitoring system specialist, GASTRON has won consumers’ recognition for the top-tier quality and convenience of products. As a trustworthy partner for consumers, GASTRON is continuously researching for and dedicating effort to developing gas detectors that meet customer needs.

  • Page 3: Table Of Contents

    GTD-5100F Instruction Manual TABLE OF CONTENTS Overview ..............................5 Structure ..............................6 Specifications ............................6 3.1. Basic Specifications......................... 6 3.2. Mechanical Specifications........................ 8 3.3. Electrical Specifications(Standard Terminal Unit) ................8 3.4. Electrical Specifications (PoE Terminal Unit)..................9 3.5. Environmental Specifications ......................9 3.6.
  • Page 4 GTD-5100F Instruction Manual mA Zero Offset (INTERFACE→mA OFFSET) ..............32 7.5. SYSTEM Mode..........................32 CALENDAR (SYSTEM → CALENDAR) ................32 PASSWORD (SYSTEM → PASSWORD)................32 7.6. Test Mode ............................33 mA OUTPUT (TEST → mA OUTPUT)..................33 RELAY (TEST → RELAY) ....................33 DISPLAY (TEST → DISPLAY) .....................34 GAS SIMULATION (TEST –...

  • Page 5: Overview

    GTD-5100F Instruction Manual 1. Overview In industrial sites, a wide range of gases including flammable and toxic gases, freon gas, and organic compound gas are used. To prevent gas leakage in the sites, gas detectors are installed and operated. However, for semiconductor production facilities, gas detectors are used for each of the diverse types of gas, such as C4F6, CH2F2, CH3F, C5F8, COS, CH4, and CO, resulting in the issues of high product cost and difficulties in product installation and maintenance.

  • Page 6: Structure

     RANGE : 0 ~ 9999  Refer to ‘[Table.17 Gas List]’ Measuring Range * Inquire GASTRON for special gas. ≤ ±3% / Full Range Accuracy ≤ 2% / Full Range Zero Drift Varying by sensor module and flow, refer to sensor specifications or...
  • Page 7 GTD-5100F Instruction Manual ATEX/IECEX: Ex db IIC T6 for Tamb = -20℃ to +60℃ Ex db IIC T5 for Tamb = -20℃ to +75℃ IP65 Approvals Classification KFI : R-R-G99-GTD-5100F(KC EMC) UL : Class I Div. 1 Group A,B,C and D T6 Ta= -20°C to 60°C T5 Ta= -20°C to 75°C Standard...

  • Page 8: Mechanical Specifications

    GTD-5100F Instruction Manual 3.2. Mechanical Specifications ITEMS SPECIFICATION Explosion Proof type Explosion-proof enclosure Dimension Standard type : 195(W) x 139(H) x 154(D) mm Weight including Sensor Standard type : 4kg Mounting type Wall mount Mounting Holes Hole : ( Ø 11 ±0.1 ) x 2ea 3/4”...

  • Page 9: Electrical Specifications (Poe Terminal Unit)

    GTD-5100F Instruction Manual 3.4. Electrical Specifications (PoE Terminal Unit) ITEMS SPECIFICATION 48 V Power-over-Ethernet Input Voltage IEEE 802.3af compliant, 37 to 57V CLASS 0 (0.44 ~ 12.95W) Max. wattage: 11.2W @ +48 V Wattage Max. current: 233mA @ +48 V Alarm1, Alarm2, Fault Relay Relay contact Rated 2 A @ 30VDC or 2 A @ 125 VAC...

  • Page 10: Name And Description Of Each Part

    GTD-5100F Instruction Manual 4. Name and Description of Each Part 4.1. Components [Figure GTD-5100F Components] Name Descriptions Case Body & Cover Provide protection against external environmental change and impact Mount Hole Mounting hole used for fixing case Front Display Display detector status information (Refer to 4.2 for details) Window Glass Show display status information.

  • Page 11: Front Display Configuration

    GTD-5100F Instruction Manual 4.2. Front Display Configuration [Figure 4. Front Display Configuration] Name Descriptions SD Card SD card for F/W upload insertion port LCD Display Display information on gas concentration and current state, and parameter settings, etc.  PWR (Power): LED turned on when power is supplied ...

  • Page 12: Installation

    GTD-5100F Instruction Manual 5. Installation  The cover of the detector installed in a worksite must not be opened or handled by persons other than the authorized, or a person in charge of installation and repair from the head office. Otherwise, serious human and property damage can be caused due to fire or explosion, etc.
  • Page 13 GTD-5100F Instruction Manual  After separating the cover, separate the display cover in the following order: ① Grab the handle of the display cover and pull to separate it from the body. ② To fix it back on after separation, turn it by 90˚. (90°, 180°, 270°, 360°...

  • Page 14: Terminal Unit Structure And External Connection Pin Map

    GTD-5100F Instruction Manual 5.2. Terminal Unit Structure and External Connection Pin Map Standard Terminal Unit Structure [Figure 8. Standard Terminal PCB Layout] Description Main PCB Connector LED for system power supply state LED for external input voltage state Current interface mode setting switch Current interface terminal (CH1, CH2) Relay Selection jumper RS-485 terminating resistance selection switch...

  • Page 15: Poe Terminal Unit Structure

    GTD-5100F Instruction Manual Ref. No. Name Description  CH1 4~20mA Sink Mode Output Sink-1(+)  CH1 4~20mA Isolation Mode ‘+’  CH1 4~20mA Source Mode Output SRC-1(-)  CH1 4~20mA Isolation Mode CN10  CH2 4~20mA Sink Mode Output Sink-2(+) ...

  • Page 16: Poe Terminal Pin Map And Poe Connector Description

    GTD-5100F Instruction Manual Description Main PCB Connector LED for system power supply state LED for external input voltage state PoE Input Connector (RJ-45) Trouble, Alarm1, Alarm2 relay terminal System on/off switch Relay Selection jumper [Table 5: Information of PoE Terminal PCB Main Components] PoE Terminal Pin Map and PoE Connector Description [Figure 11.

  • Page 17: Power Configuration

    5.3. Power Configuration ※ Cut off power before connecting power terminal  Standard Terminal Unit External Safety Power Supply Unit [Figure 12. STD Terminal Power Wiring]  Shield cable of 1.5sq or higher must be used.  To use external power (DC24V), connect it to “CN6” terminal of terminal unit as shown in the figure. PoE Terminal Unit RJ-45 Jack...

  • Page 18: Source Configuration Wiring

    GTD-5100F Instruction Manual Source Configuration Wiring GTD-5100F Source Controller Signal-1 Src-1 Src-2 Signal-2 [Figure 14. 2CH Source Wiring]  Adjust switch to SRC (Source) by referring to [Table 7].  Connect cable for gas channel by referring to [Figure 14]. ...

  • Page 19: Isolated Configuration Wiring

    GTD-5100F Instruction Manual Isolated Configuration Wiring GTD-5100F Controller Isolated Sink-1 Src-1 Sink-2 Src-2 [Figure 16. 2CH Isolated Wiring]  Adjust switch to ISO by referring to [Table 7].  Connect cable for gas channel by referring to [Figure 16].  EX) 1CH - Isolated connection settings CH1 switch →...

  • Page 20: Alarm Relay Terminal Configuration

    GTD-5100F Instruction Manual 5.5. Alarm Relay Terminal Configuration  Applied to both standard and PoE terminal units For mode settings, refer to “Relay Selection Jumper” in [Table 4] and [Table 6].   Connect to terminal unit according to each function. Alarm Terminal Mode Settings “TROUBLE”(J1) - Jumper N.O connection...

  • Page 21: Blanking Unused Cable Entry

    GTD-5100F Instruction Manual  The power cable installation distances according to cable classification are as follows: Copper resistance (ohms/m) Meters Feet 3.31 0.00521 1535 5036 2.08 0.00828 3169 1.31 0.01318 1988 0.82 0.02095 1250 0.518 0.0333 [Table 11. Power Cable maximum distance] 5.8.

  • Page 22: Operation

    GTD-5100F Instruction Manual 6. Operation 6.1. Power On  After checking wiring, power and voltage, turn on power switch at the front.  When PWR (Power) LED (GREEN) is turned on and warm-up is completed following initializing, configuration, and self-test, gas measuring mode is started. ...

  • Page 23: Measuring Mode

    GTD-5100F Instruction Manual 6.2. Measuring Mode Display LCD Configuration  In measuring mode, the gas measurements and various information about the detector operation are displayed in real time. [Figure 18. Measuring Mode] Figure Name Description  Flow: Current flow  Icon: Speed changing according to flow Flow information ...

  • Page 24: Screen Configuration By Gas Concentration

    GTD-5100F Instruction Manual Screen Configuration by Gas Concentration  Normal Measuring State:  Measured gas concentration 0% - less than AL1  Alarm1:  When measured gas concentration is AL1 or higher  “AL1 LED” turned on  Alarm2:  When measured gas concentration is AL2 or higher ...

  • Page 25: Function Setting (Function Menu) And Control

    GTD-5100F Instruction Manual 6.4. Function Setting (Function Menu) and Control  Click “FUNC” key for 2 seconds in measuring mode to enter password input stage.  Password input  “Password” input window is opened.  The default value set at factory release is “00 (** == 00).” It can be changed within “00 - 99.”...

  • Page 26: Setting Function

    GTD-5100F Instruction Manual 7. Setting Function 7.1. Setting Mode Configuration Description Level 1 Level 2 RANGE Set high scale and unit of gas for measuring MEASURING ALARM Set conditions for the first and second alarms CROSS SCALE Set relative sensitivity of sensor CALIBRATION Calibrate flow FLOW RATE...

  • Page 27: Measuring Setting

    GTD-5100F Instruction Manual 7.2. Measuring Setting Range Setting (Location: MEASURING → RANGE) High Scale and Unit Setting for Gas for Measuring Classification Description  Gas for measuring set  If there are two gases for measuring “DISABLED” is GAS NAME activated.

  • Page 28: Gas Name Initializing (Measuring → Gas Name → Init)

    GTD-5100F Instruction Manual  How to change gas name Set name of gas for measuring to change When “CANCEL” is changed to “SAVE,” click “SAVE”. Gas Name Initializing (MEASURING → GAS NAME → INIT) Initializing Name of Gas for Measuring ...

  • Page 29: Flow Rate Mode

    GTD-5100F Instruction Manual 7.3. Flow Rate Mode CALIBRATION (FLOW RATE - CALIBRATION) Flow Calibration Classification Description  Set calibration flow FLOW  Set flow within “100mL - 1000mL”  Set pump unit control calibration count CTRL  Set value within “0.0% - 30.0%” ...

  • Page 30: Interface Mode

    GTD-5100F Instruction Manual 7.4. Interface Mode  Menus Applied to Standard Terminal Unit: RELAY, RS485, mA CALIBRATION, mA ZERO OFFSET  Menus Applied to PoE Terminal Unit: PoE, RELAY PoE (INTERFACE → PoE) Ethernet Environment Setting (PoE Terminal Unit Only) Classification Description ...
  • Page 31 GTD-5100F Instruction Manual  Set communication data structure TYPE-3  Divided into 6 types according to stop bit count Data : 8 TYPE and parity Stop : 1  Stop Bit: “1 or 2” EVEN  Parity: “None, Odd, Even” ...

  • Page 32: Ma Calibration (Interface → Ma Calibration)

    GTD-5100F Instruction Manual mA CALIBRATION (INTERFACE → mA CALIBRATION) mA Calibration (STD Only)  Calibration method Configure mA circuit (Refer to “5.4 4-20mA Current Interface Setting”) Select “4mA” and set input value in reception unit Select “20mA” and set input value in reception unit Change “TEST”...

  • Page 33: Test Mode

    GTD-5100F Instruction Manual 7.6. Test Mode mA OUTPUT (TEST → mA OUTPUT) mA Output Test (Standard Terminal Only)  mA output can be set in this menu. Output Setting Range: “0.500mA - 22.000mA”  If there are two gases for measuring, “CH2” is activated. RELAY (TEST →...

  • Page 34: Display (Test → Display)

    GTD-5100F Instruction Manual DISPLAY (TEST → DISPLAY) LCD Screen Test  Check display (LCD) pixels and color state.  When “FUNC” key is entered, R (red), G (green), B (blue), and W (white) are displayed sequentially.  Exit display test mode by using “RESET” key. GAS SIMULATION (TEST –...

  • Page 35: Troubleshooting

    GTD-5100F Instruction Manual 8. Troubleshooting  CAUTION: In case of the failure of a part or a physical failure, repair must be conducted by Gastron or a person certified by Gastron. 8.1. Fault List [Table 15: Fault Codes & Recovery List] Fault Description &...

  • Page 36: Recovery List

    GTD-5100F Instruction Manual 8.2. Recovery List [Table 16. Recovery List] Fault Maintenance Guide Replace main unit Replace sensor unit E-11 Check the cable connection state or for cable disconnection E-13 Replace main unit if symptom recurs after system rebooting Check for dust filter and flow path blocking, and replace main unit if there is no problem in E-21 the flow path E-22...

  • Page 37: List Of Measuring Gas And Default Value Setting Information At Shipment

    GTD-5100F Instruction Manual 9. List of Measuring Gas and Default Setting Value Interfering Flow Rate GAS NAME High Scale Unit AL1 value AL2 value (mL/min) Filtering %LEL %LEL C4F8 2000 1000 C5F8 2000 1000 C4F6 2000 1000 CH2F2 2000 1000 TEOS CH3F 2000...

  • Page 38: Interface Configuration

    GTD-5100F Instruction Manual 10. Interface Configuration 10.1. MODBUS RTU & TCP Address map Address Register Name Data Type Description Read & Write Coils CH1 Remote Test Mode Reset 1 = End test mode (resume measuring) CH1 Remote Test Mode Set 1 = Enter test mode (fix measurement in high scale) CH2 Remote Test Mode Reset 1 = End test mode (resume measuring)
  • Page 39 GTD-5100F Instruction Manual BIT10 Alarm-2 Active (1 = True, 0 = False) Alarm-2 Relay Energized BIT11 (1 = True, 0 = False) BIT12 Range Over (1 = True, 0 = False) Interference Gas Detection BIT13 (1 = True, 0 = False) BIT14 Reserved BIT15...
  • Page 40 GTD-5100F Instruction Manual BIT1 Warm-up (1 = True, 0 = False) BIT2 Normal Operation (1 = True, 0 = False) BIT3 Maintenance Mode (1 = True, 0 = False) BIT4 Test Mode (1 = True, 0 = False) BIT5 Trouble(Fault) Active (1 = True, 0 = False) Trouble(Fault) Relay Energized BIT6 (1 = True, 0 = False)
  • Page 41 GTD-5100F Instruction Manual 30033 CH2 High Scale Lower Word float 30034 CH2 High Scale Upper Word float 30035 CH2 High Scale unsigned int (Ex: 30.0 %VOL = 300) 30036 CH2 Reserved 30037 CH2 Reserved 30038 CH2 Reserved 30039 CH2 Reserved 30040 CH2 Reserved 30041 ~...
  • Page 42 GTD-5100F Instruction Manual BIT0 Self-test (1 = True, 0 = False) BIT1 Warm-up (1 = True, 0 = False) BIT2 Normal Operation (1 = True, 0 = False) BIT3 Maintenance Mode (1 = True, 0 = False) BIT4 Test Mode (1 = True, 0 = False) Trouble(Fault) Active BIT5 (1 = True, 0 = False)
  • Page 43 GTD-5100F Instruction Manual CH1 Alarm-2 Set Point 40011 float Upper Word (Write) CH1 Alarm-2 Set Point 40012 unsigned int (Ex: 30.0 %VOL = 300) (Write) 40013 CH1 High Scale Lower Word float 40014 CH1 High Scale Upper Word float 40015 CH1 High Scale unsigned int (Ex: 30.0 %VOL = 300)
  • Page 44 GTD-5100F Instruction Manual BIT7 %VOLUME BIT8~15 Gas Number (0~255) CH2 Measured Gas 40024 float Concentration Lower Word CH2 Measured Gas 40025 float Concentration Upper Word CH2 Measured Gas 40026 unsigned int (Ex: 30.0 %VOL = 300) Concentration CH2 Alarm-1 Set Point 40027 float Lower Word (Write)
  • Page 45 GTD-5100F Instruction Manual 3'rd Character BIT0~7 (Ex: GTD-5100FN = 'D' = 0x44) 40092 Detector Serial Number-2 unsigned int 4'th Character BIT8~15 (Ex: GTD-5100FN = '-' = 0x2D) 5'th Character BIT0~7 (Ex: GTD-5100FN = '5' = 0x35) 40093 Detector Serial Number-3 unsigned int 6'th Character BIT8~15...

  • Page 46: Outline Drawing And Dimensions

    GTD-5100F Instruction Manual 11. Outline Drawing and Dimensions FRONT VIEW SIDE VIEW SECTION VIEW TOP VIEW [Figure 19. Outline Drawing and Dimensions] PAGE 46 of 49 Rev 1.14(Oct. 31, 2023)

  • Page 47: Pre-Installation Notes

    GTD-5100F Instruction Manual 12. Pre-installation Notes 12.1. Selection of Installation Location (According to the Occupational Safety and Health Act) Gas leak alarm must be installed in the following locations:  Around chemical facilities and auxiliary facilities with a risk of gas leakage, such as compressor, valve, reactor, and pipeline joint installed inside or outside of a building where flammable and toxic substances are handled ...
  • Page 48 GTD-5100F Instruction Manual  All the wires should be spread and separated so that they can be evenly sealed.  Environment temperature of working of epoxy mold : 15 ~ 25℃ UL : Class I Div. 1 Group A,B,C and D T6 Ta= -20°C to 60°C, T5 Ta= -20°C to 75°C Cable Cable...

  • Page 49: Revision Records

    GTD-5100F Instruction Manual 13. Revision Records Version Contents Date First revised 03.05.2020 Modified list of gas for measuring (TEOS) 03.25.2020 Changed specifications 07.06.2020 Partially modified content 08.21.2020 Partially modified content, corrected typing errors 01.06.2021 Changed logo 02.25.2021 Added gas name function 04.23.2021 Modified list of gas for measuring and error code information 04.14.2022...
