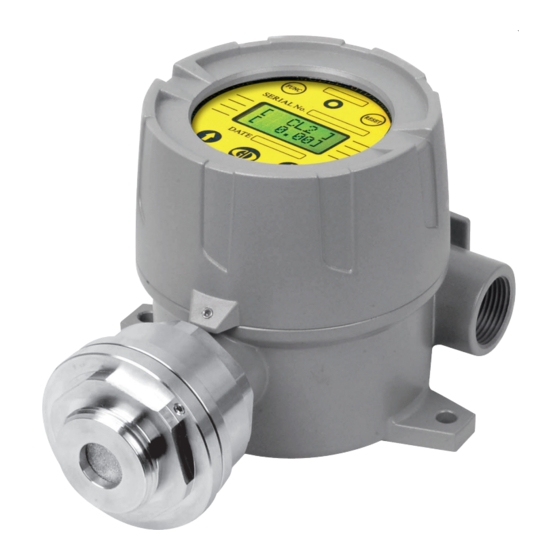

GTD-2000Tx(2W)
Instruction Manual
Headquarters / Engineering research laboratory :
23 Gunpo Advance d Industry 1-ro(Bugok-dong), Gunpo-si, Gyeonggi-do
Tel +82-31-490-0800 Fax +82-31-490-0801
Yeongnam business office / Plant :
55 Gonghangap-gil 85beon-gil, Gangseogu, Busan Metropolitan City
Tel +51-973-8518 Fax +51-973-8519
E-mail : info@gastron.com
www.gastron.com
Read in detail for correct use.
Advertisement
Table of Contents
Related Manuals for GASTRON GTD-2000Tx
Summary of Contents for GASTRON GTD-2000Tx
- Page 1 Headquarters / Engineering research laboratory : 23 Gunpo Advance d Industry 1-ro(Bugok-dong), Gunpo-si, Gyeonggi-do Tel +82-31-490-0800 Fax +82-31-490-0801 Yeongnam business office / Plant : 55 Gonghangap-gil 85beon-gil, Gangseogu, Busan Metropolitan City Tel +51-973-8518 Fax +51-973-8519 E-mail : info@gastron.com www.gastron.com Read in detail for correct use.
- Page 2 Instruction Manual 02_03 Gas & Flame Thank you very much for purchasing a product from Gastron Co. Ltd. Our Gastron Co.Ltd. is a company specialized in Gas Detector & Gas Monitoring System and have been Detection System recognized by many customers for the best quality and use convenience. We always seek to help our customers to find the product they need and we continuously research to develop gas detectors that satisfies our customers.
-
Page 3: Table Of Contents
GTD-2000Tx(2W) Contents Contents www.gastron.com Instruction Manual 04_05 1. Overview ······································································································································································ 8. Drawings and Dimensions ········································································································································ 2. Configuration ······························································································································································ 9. Precautions before Installation ································································································································ 9.1. Selecting a Place for Installation (Occupation Safety and Health Act Data) ···················································· 3. Specification ································································································································································ 9.2. -
Page 4: Overview
Instruction Manual 06_07 GTD-2000Tx(2-wire) toxic gas detector has been developed to detect gas leaked from industrial sites and various toxic 3.1. Basic Specifications gases generated from factories, gas storages, and manufacturing processes that produce or use toxic gases and to... -
Page 5: Electrical Specifications (Standard Type)
GTD-2000Tx(2W) 3. Specifications 4. Name and Description of Each Part www.gastron.com Instruction Manual 08_09 3.3. Electrical Specifications (Standard Type) 4.1. Components ITEMS SPECIFICATION Input Voltage(Standard) Absolute min: ※ Customer supplied PSU must meet Nominal: requirements IEC1010-1 and CE Absolute max: Marking requirements. Ripple maximum allowed: 1V pk-pk Max. -
Page 6: Installation
GTD-2000Tx(2W) 4. Name and Description of Each Part 5. Installation www.gastron.com Instruction Manual 10_11 It is prohibited for an individual, other than an approved user or a technician responsible for installation and repair from ITEMS SPECIFICATION To cancel or return to the previous status during Parameter setting, use the Magnet-Bar and... -
Page 7: Main Pcb Configuration
GTD-2000Tx(2W) 5. Installation 5. Installation www.gastron.com Instruction Manual 12_13 5.2. Main PCB Configuration 5.3. Power and Signal Terminal Configuration ■ After detaching the cover, the Main PCB terminal layout appears as shown in the figure below. ■ <Warning - Turn off power before connecting power terminal> ■ After disassembling display parts, there is a terminal block in the Main PCB as shown in the figure below. Holding it with hands and pulling towards ceiling detaches it from the Main PCB. ■ Loosen 5 terminal fixing screws located at top part of detached terminal block CN8 (VIS, +, mA, -, ETH) Connector by turning ccw using a Θ driver. Connect DC 18~24 V power to +, and - then connect signal cable to mA. Tighten 5 terminal fixing screws clockwise (cw) so that terminal does not leave the track then insert Main PCB as the same condition before disassembly. - Page 8 Instruction Manual 14_15 5.4. Method to Connect to External Control Unit 5.5. Installation Cable Length ■ Connect 18 V~31 V DC operation power to CN1 (+, mA, -, ET) Connection Terminal of the gas detector then ■ The maximum length between GTD-2000Tx(2W) and power supply is decided by wire specification. connect a device that can receive 4~20 mA signals to mA. ■ Max. Installation Length = VMAXDROP ÷ IMAX ÷ WIRER/m ÷ 2 ·VMAXDROP: Maximum Power Loop Voltage Drop (=Power Supply voltage - min operating voltage) ·IMAX : Max. Current of GTD-2000Tx(2W) ·WIRER/m: The resistance of the wire (ohms/meter value available in wire manufacturer's specification data sheet) ■ Example of installation lengths using 24 V power supply and 16 AWG is as follows. ·GTD-2000Tx(2W) minimum operating voltage = 16 V DC ·VMAXDROP = 24 - 16 - 5.5 = 2.5V ·IMAX = 0.022A ( 22mA ) ·2.5 ÷ 0.022 ÷ 0.01318 ÷ 2 = 4,310.9 m ≒ 4310 m [Figure 7. Method to connect External Control Unit] [Figure 7. Calculation of GTD-2000Tx(2W) Installation Cable Length] ■ Power cable installation for each cable type is as shown in the table below.
- Page 9 GTD-2000Tx(2W) 6. Detector Operation Flow 6. Detector Operation Flow www.gastron.com Instruction Manual 16_17 6.1. Initial Operation Status (Power On) 6.3. Operation Flow ■ After wiring to power terminal at the top of Main PCB board then supply power, the following contents are ■ After power on, it passes self-diagnostic process then enters Measuring Mode. Here, by operating front keys, you displayed on LCD. Approx. 30 min of stabilization of time is needed from the initial supply of operation power and it can go to internal System Mode. starts to operate normally after sufficient stabilization. ■ Timeout for Level1 and Level2 are 10 sec. It is set to 1 h for Level2 Calibration and Test Mode. ■ When "RESET: key contacts at Program Mode Screen, it returns to Measuring Mode. When "RESET" key contacts at each Program Setting Screen, it returns to the parent step.
- Page 10 GTD-2000Tx(2W) 7. System Mode 7. System Mode www.gastron.com Instruction Manual 18_19 7.1. PROGRAM MODE 7.2. CALIBRATION MODE ■ Due to characteristics of the gas detector, minimum 30min of stabilization time is required and maintenance PASSWORD - Contacting "FUNC" key with the Magnet-bar for 2 sec or longer in Measuring Mode enters Password mode. condition may change depending on site condition. [**] - After setting Password using "↑" or "↓" key, contact "FUNC" key. - If password is correct, it enters Program mode. PROGRAM - Contacting "FUNC" key with the Magnet-bar for 2 sec or longer in Measuring Mode enters Password mode.
- Page 11 GTD-2000Tx(2W) 7. System Mode 8. Drawings and Dimensions www.gastron.com Instruction Manual 20_21 - When span calibration is successful, "god (good)" is displayed on LCD display for 2 sec. - When span calibration is not successful, "FAI (Fail)" is displayed for 2 sec and it changes to "Calibration Data Mode". - Contact "RESET" key to return to "Calibration Mode". - It is a mode to display measurement after calibration and checks whether calibration is successful after performing auto calibration. - Contacting "FUNC" key returns to "Calibration Mode". [Figure 8. GTD-2000Tx(2W) Drawing]...
- Page 12 GTD-2000Tx(2W) 9. Precautions before Installation 9. Precautions before Installation www.gastron.com Instruction Manual 22_23 9.1. Selecting a Place for Installation (Occupational Health & Safety Act Data) ■ During wiring work, use explosion-proof cable gland at cable inlet or tightly seal cable conduit during metal cable wiring construction to prevent spread of flames in case of explosion or movement of gas, etc.
- Page 13 GTD-2000Tx(2W) 10. Revision History www.gastron.com Instruction Manual 24_25 VERSION CONTENTS DATE * Manual Initial Revision 2012.04.17 * Corrected Typos 2012.04.20 * Changed consumed current 2013.01.21 * Changed Font 2013.02.21 * Added Program Mode Function. 2014.06.08 * Added O2 function 2014.10.24 * Separated Factory mode manual 2016.09.28...
