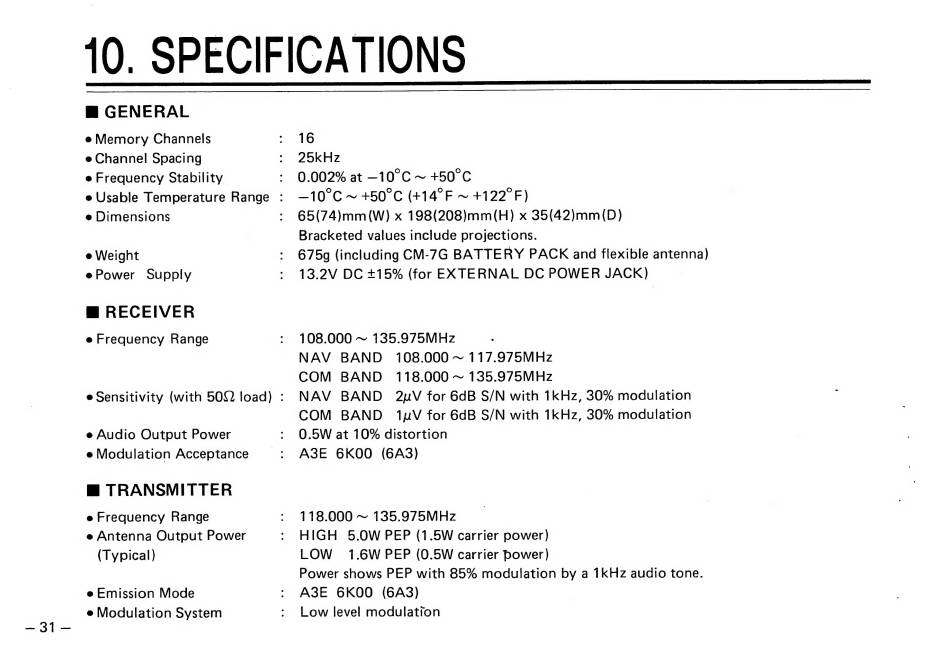

10. SPECIFICATIONS
M GENERAL
e Memory Channels
e Channel Spacing
e Frequency Stability
e Usable Temperature Range :
e Dimensions
e Weight
ePower Supply
M RECEIVER
e Frequency Range
e Sensitivity (with 50Q load) :
e Audio Output Power
e Modulation Acceptance
M TRANSMITTER
e Frequency Range
e Antenna Output Power
(Typical)
e Emission Mode
e Modulation System
16
25kHz
0.002% at -10'C ~ +50°C
—10°C ~ +50°C (+14°F ~ +122°F)
65(74)mm(W) x 198(208)mm(H) x 35(42)mm(D)
Bracketed values include projections.
675g (including CM-7G BATTERY PACK and flexible antenna)
13.2V DC +15% (for EXTERNAL DC POWER JACK)
108.000 ~ 135.975MHz
NAV BAND 108.000 — 117.975MHz
COM BAND 118.000 ~ 135.975MHz
NAV BAND 2uV for 6dB S/N with 1kHz, 30% modulation
COM BAND 1uV for 6dB S/N with 1kHz, 30% modulation
0.5W at 10% distortion
A3E 6K00 (6A3)
118.000 ~ 135.975MHz
HIGH 5.0W PEP (1.5W carrier power)
LOW 1.6W PEP (0.5W carrier power)
Power shows PEP with 85% modulation by a 1kHz audio tone.
A3E 6K00 (6A3)
Low level modulation
