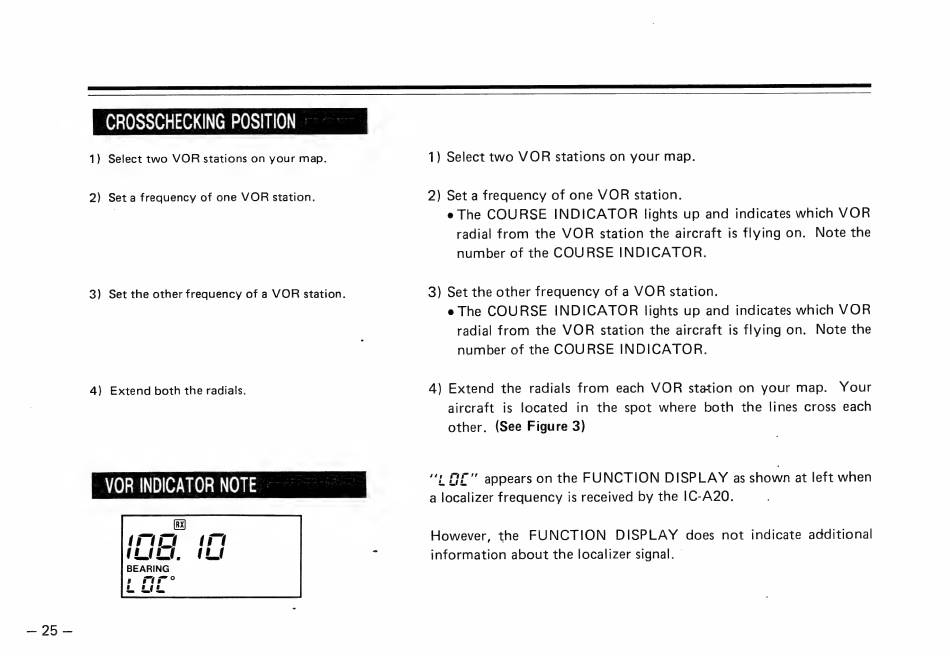

CROSSCHECKING POSITION
1) Select two VOR stations on your map.
2) Seta frequency of one VOR station.
3) Set the other frequency of a VOR station.
4) Extend both the radials.
„VOR INDICATOR NOTE
1) Select two VOR stations on your map.
2) Set a frequency of one VOR station.
e The COURSE INDICATOR lights up and indicates which VOR
radial from the VOR station the aircraft is flying on.
Note the
number of the COURSE INDICATOR.
3) Set the other frequency of a VOR station.
e The COURSE INDICATOR lights up and indicates which VOR
radial from the VOR station the aircraft is flying on. Note the
number of the COURSE INDICATOR.
4) Extend the radials from each VOR station on your map. Your
aircraft is located in the spot where both the lines cross each
other. (See Figure 3)
a localizer frequency is received by the IC-A20.
However, the FUNCTION DISPLAY does not indicate additional
information about the localizer signal. ©
