KING Jack OA1501 Quick Start Manual

Digital hdtv over-the-air antenna with king surelock signal meter

Advertisement

OPERATION

AIMING THE ANTENNA

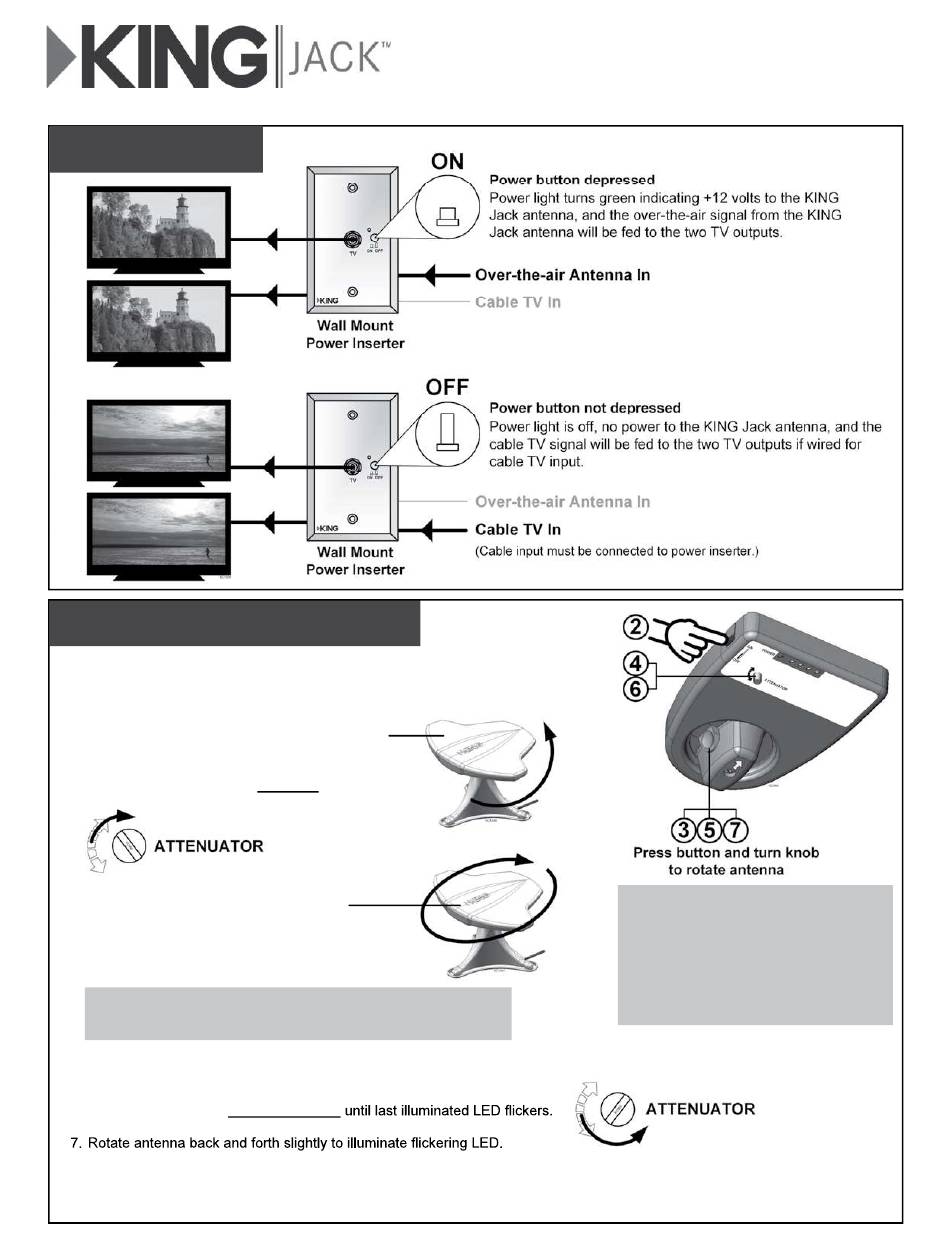

1. Turn on TV and power inserter (see above).
2. Turn on KING SureLock Signal Meter with switch on side of enclosure.
3. Press button and turn knob to rotate antenna in
one direction until it hits the stop.
4. Rotate attenuator dial fully clockwise.
5. Slowly rotate antenna a full 360 degrees.
Antenna will hit stop again.
As you rotate it, note where the maximum
number of LEDs illuminate on signal meter.
If the same number of LEDs stay lit through the whole rotation,
turn the attenuator down slightly and rotate the antenna again.
Rotate the antenna back to where the most
LEDs illuminated and center it in that area.
6. Rotate attenuator dial counter clockwise
8. Repeat steps 6 and 7 to pinpoint signal reception.
9. Follow instructions in TV or converter box owner's manual to scan for available channels. Watch TV!
Digital HDTV Over-the-Air Antenna
with KING SureLock
OA8500 (White) & OA8501 (Black)
Signal Meter
Arrow on knob indicates which direction
antenna is pointing.
LEDs will illuminate from left
(next to power) to right.
All LEDs may not illuminate depending
on signal strength.
