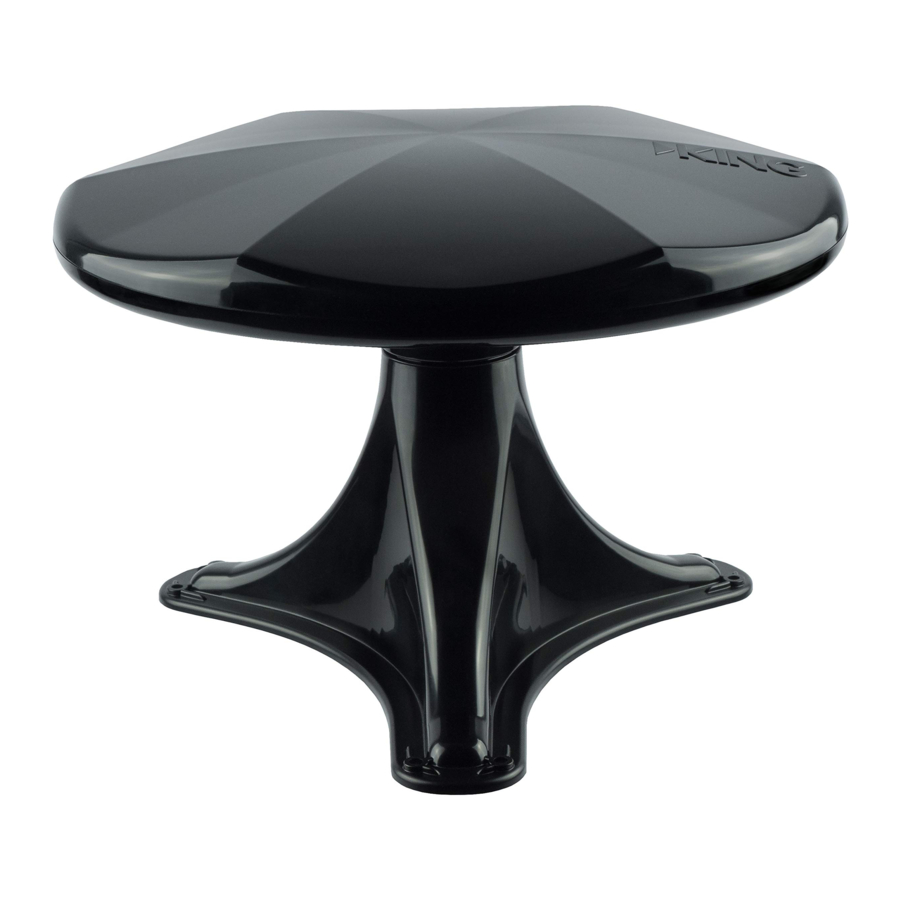

KING Omni Pro Manual
![]()
Operation
- Turn on your TV. (Turn on the power injector.)
Note: You must have a properly installed KING wall mount power injector to operate the KING OmniPro.
- Perform a channel scan.
Note: See your TV or converter box owner's manual for instructions on performing a channel scan.
Sample screen: number of channels will vary
- Start watching TV!
Unit Installation
![]()
The installer is responsible for determining and supplying the most appropriate fasteners to roof-compatible sealant. All holes and fastener heads must be sealed so they are completely waterproof.
![KING - Omni Pro - Unit Installation Unit Installation]()
- Select an area on the roof for the base mount keeping in mind the following IMPORTANT POINTS:
- The antenna must be mounted with the coax channel towards the rear of the vehicle.
- The center of the roof hole must be at least 20" away from any object taller than 8" to provide clearance for the antenna head. The center of the roof hole must also be at least 8" from the edge of the roof.
- Connect the coax from the power injector's antenna input to the coax cable in the base mount. (The coax may come up thru the roof or enter thru the coax channel.)
- Apply sealant to the base mount, and fill the coax channel with sealant. Place the base mount in position.
- Fasten the base mount to the roof. Make sure the base mount is sealed all the way around. Make sure the coax channel and fastener heads are sealed as well.
Specifications
Dimensions: | 9" H x 13" W x 13" L | Power requirement: | +12 Volt / 100 mA KING Power Injector OA1000 • OA1001 (supplied with this product) |
Weight: | 2.2 lbs. | Power supplied by: | OA1000-OE • OA1001-OE (ordered separately) OA1010-OE • OA1011-OE (ordered separately) |
Frequency Bands: | VHF (54-216 MHz) UHF (470-698 MHz) FM (87.9-107.9 MHz) AM (530-1700 KHz)(OA1010-OE • OA1011-OE only) | Enclosure/Mount: | ASA-Automotive grade |
About the Power Injector
![KING - Omni Pro - About Power Injector - If Power Button Depressed About Power Injector - If Power Button Depressed]()
Power Button Depressed
Power light turns green indicating +12 Volts to the KING OmniPro, and the over-the-air signal from the KING OmniPro will be fed to the two TV outputs.
Over-the-Air Antenna In
Cable TV In
![KING - Omni Pro - About Power Injector - Power Button Not Depressed About Power Injector - Power Button Not Depressed]()
Power Button Not Depressed
No power to KING OmniPro, and the cable TV signal will be fed to the two TV outputs (if wired for cable TV input).
Over-the-Air Antenna In
Cable TV In
(Cable input must be connected to power injector. See below for diagram)
Power Injector Installation
![KING - Omni Pro - Power Injector Installation Power Injector Installation]()
(+12 VDC and Ground require.25" female spade connectors)
Keep in mind the following when installing the Wall Mount Power Injector:
- Can be mounted in most standard electrical boxes.
- Requires a +12 Volt DC power source. (Inadequate voltage may cause the green LED to not illuminate and the unit to not function properly.
- Requires.25" female spade connectors for power and ground connections.
- Has an internal fuse rated @ 400 mA max. If tripped, the fuse will reset when the circuit cools.
- Is not an amplifier. No devices other than those shown below should be connected (unless approved by KING)
