Icom IC-F3/S Instruction Manual page 17

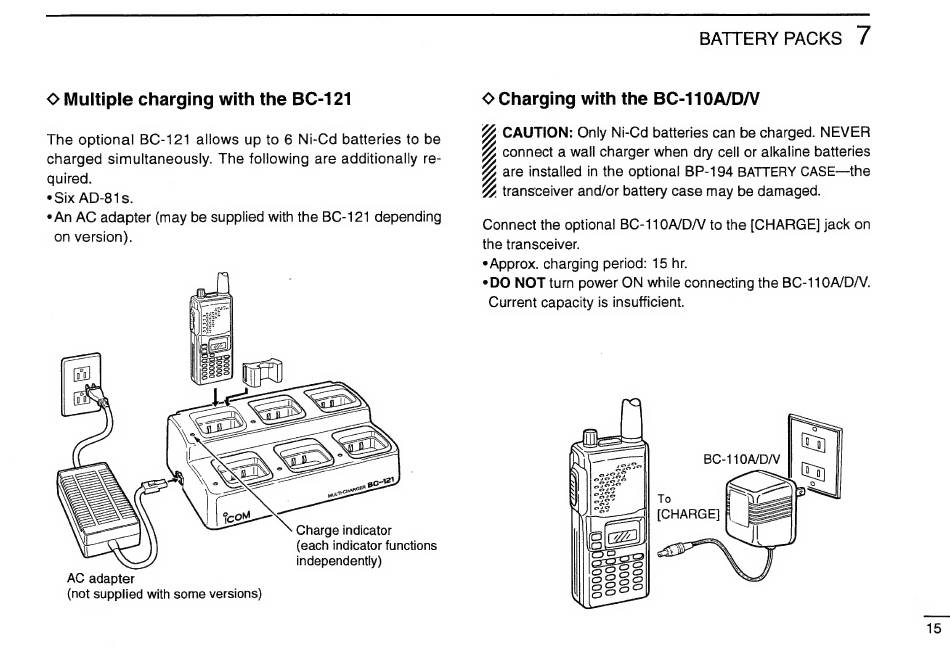

© Multiple charging with the BC-121
The optional BC-121 allows up to 6 Ni-Cd batteries to be
charged simultaneously. The following are additionally re-
quired.
e Six AD-81s.
e An AC adapter (may be supplied with the BC-121 depending
on version).
Charge indicator
(each indicator functions
independently)
AC adapter
(not supplied with some versions)
BATTERY PACKS /
© Charging with the BC-110A/D/V
CAUTION: Only Ni-Cd batteries can be charged. NEVER
connect a wall charger when dry cell or alkaline batteries
are installed in the optional BP-194 BATTERY CASE—the
, transceiver and/or battery case may be damaged.
WM QQ
Connect the optional BC-110A/D/V to the [CHARGE] jack on
the transceiver.
e Approx. charging period: 15 hr.
«DO NOT turn power ON while connecting the BC-110A/D/V.
Current capacity is insufficient.
To :
[CHARGE] i
