AME 110 NL/NLX
❻

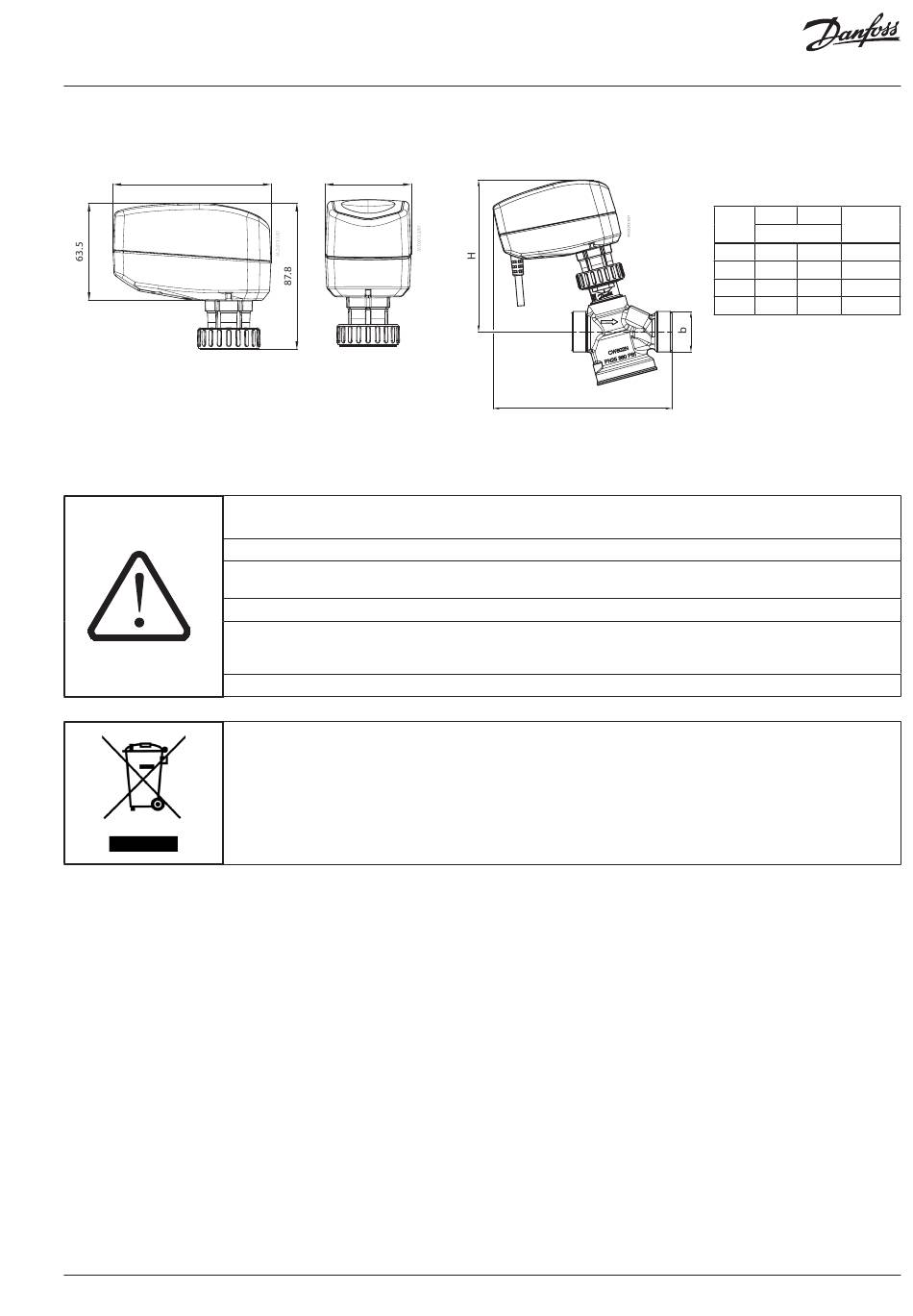

Dimensions
97
❼
Safety Note
To avoid injury of persons and damages to the device, it is absolutely necessary to read and observe these instructions carefully.
Necessary assembly, start-up, and maintenance work must be performed by qualified and authorized personnel only.
Do not remove the cover before the power supply is fully switched off.
24 V AC/DC
Can be connected via Class II or Class III voltage transformer.
The Data sheet is available online, link is found by scaning the QR code on the side of the actuator.
Do not touch anything on the PCB, except the DIP switches and Reset button!
Switch off the power line before wiring the actuator!
Wire the actuator according to the wiring diagram.
Do not manually operate the drive if power is connected!
Disposal note
This symbol on the product indicates that it may not be disposed of as household waste.
It must be handed over to the applicable take-back scheme for the recycling of electrical and electronic equipment.
• Dispose of the product through channels provided for this purpose.
• Comply with all local and currently applicable laws and regulations.
AQ467447866453en-010101
53
AME 110 NL/NLX +
L
AB-QM DN 15-32
L H b
Type
mm ISO 228/1
DN 15 136.2 122.9 Rp ½
DN 20 144.7 124.9 Rp ¾
DN 25 155.7 129.5 Rp 1
DN 32 168.7 131.5 Rp 1 ¼
