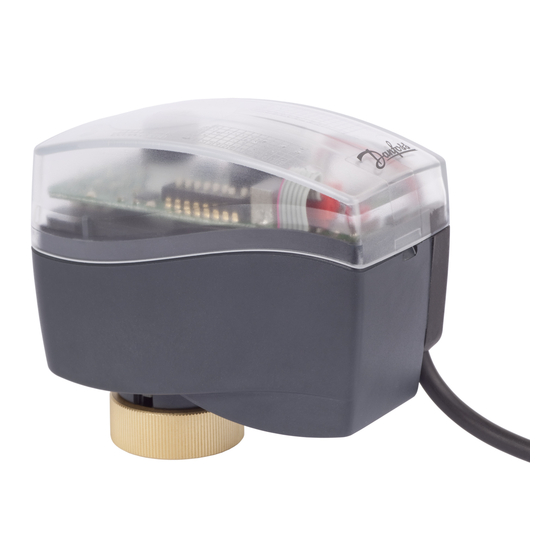

Danfoss AME 110 NL Operating Manual
Actuators for modulating control
Hide thumbs
Also See for AME 110 NL:
- Operating manual (24 pages) ,
- Datasheet (8 pages) ,
- Operating manual (4 pages)
Advertisement
Available languages
Available languages
Quick Links
Operating Guide
AME 110 NL, AME 120 NL
ENGLISH
DEUTSCH
FRANÇAIS
РУССКИЙ
中文
© Danfoss | 2016.09
Actuators for modulating control AME 110 NL, AME 120 NL
Die Stellantriebe AME 110 NL und AME 120 NL für die Regelung von
Kombiventilen
Moteurs modulants 0-10 V, AME 110 NL, AME 120 NL
Электроприводы для пропорционального регулирования
AME 110 NL, AME 120 NL
调节控制驱动器 AME 110 NL, AME 120 NL
AME 110 NL, AME 120 NL + AB-QM
www.danfoss.com
Page 4
www.danfoss.com
Seite 5
www.danfoss.com
Page 6
www.danfoss.com
Страница 7
www.danfoss.com
第 8 页
VI.LE.B4.0E | 1
Advertisement
Related Manuals for Danfoss AME 110 NL
Summary of Contents for Danfoss AME 110 NL

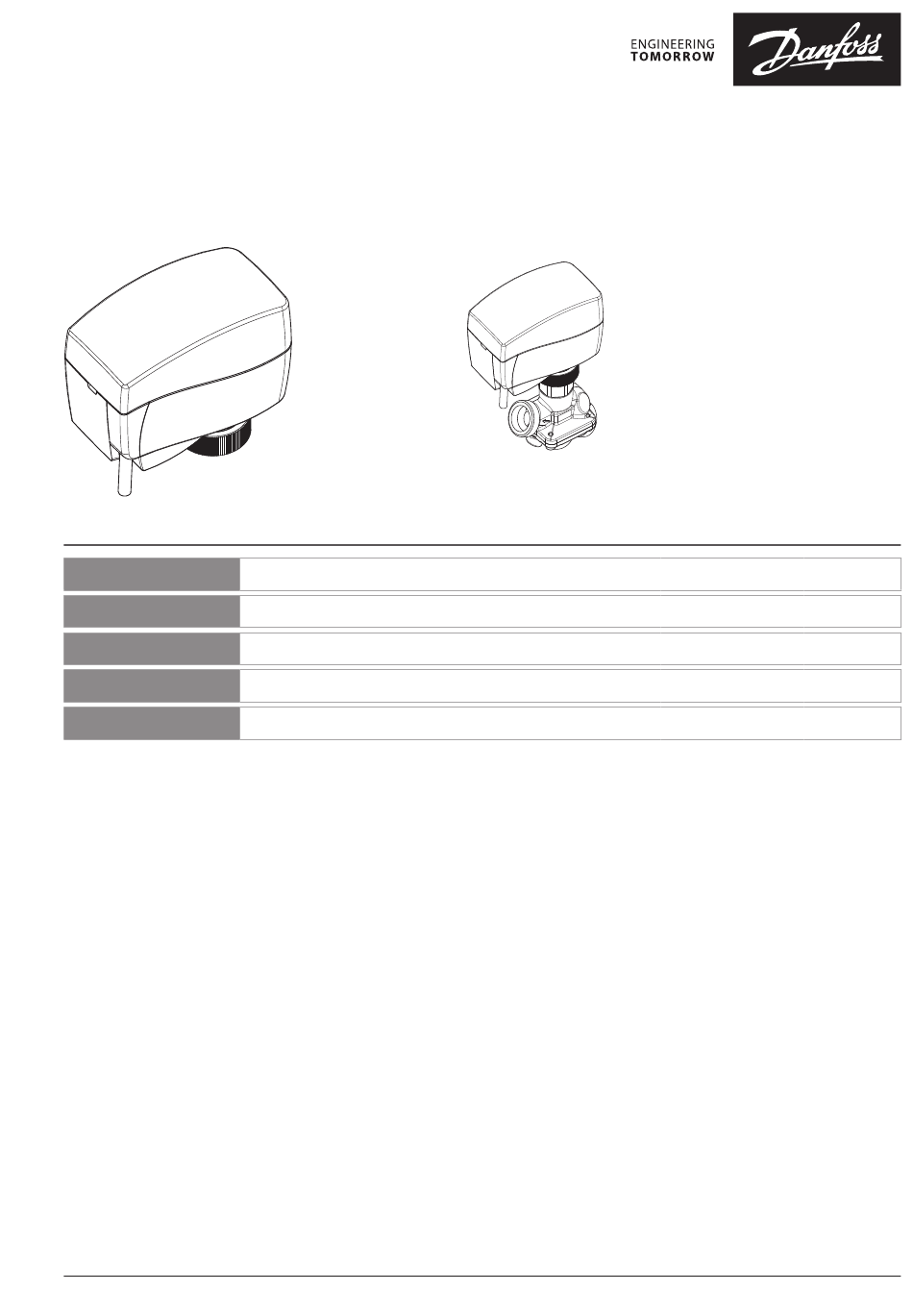

- Page 1 AME 110 NL, AME 120 NL + AB-QM ENGLISH Actuators for modulating control AME 110 NL, AME 120 NL www.danfoss.com Page 4 Die Stellantriebe AME 110 NL und AME 120 NL für die Regelung von DEUTSCH www.danfoss.com Seite 5 Kombiventilen FRANÇAIS...
-
Page 2: Maintenance
5-95 % RH no condensing FREE ❷ ❸ AC 24 V Connect via safety isolating transformer. ① ❺ ③ ② ② ① ② ① ① ④ ⑤ AME 110 NL, AME 120 NL + AB-QM 2 | © Danfoss | 2016.09 VI.LE.B4.0E... - Page 3 Type ISO 228/1 DN 10 G ½ DN 15 G ¾ DN 20 DN 25 G 1 ¼ DN 32 G 1 ½ AME 110 NL, AME 120 NL + AB-QM DN 10-32 VI.LE.B4.0E © Danfoss | 2016.09 | 3...
- Page 4 5(6)-10 V or 10(12)-20 mA. • Spindle retracting (green LED on) 1. If actuator AME 110 NL is charged by 24 V supply SW 6: LIN/LOG - Linear or equal percentage • Actuator reached set-point acc. to Y signal (LED...
- Page 5 Bereich: 5(6) bis 10 V bzw. 10(12) • Stellantrieb hat den Sollwert gemäß Y-Signal 1. Wenn der Stellantrieb AME 110 NL mit einer bis 20 mA. erreicht (LED aus). Spannung von 24 V versorgt wird und er nicht...
- Page 6 Dimensions ❻ 1. Si le moteur AME 110 NL est alimenté en 24 S’il est réglé en position MARCHE, le débit de la V et n’est pas installé sur la vanne AB-QM, il vanne équivaut au signal de contrôle en termes de...
- Page 7 Автоматический режим ожидания последовательном диапазоне 5(6)–10(12) В или Габаритные ❻ 1. Если электропривод AME 110 NL заряжен от 10(12)–20 мА. источника питания 24 В и не установлен на SW 6: LIN/LOG — для выбора клапане AB-QM, он остановится в нижнем...
- Page 8 X: 表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572规定的限量要求。 Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without subsequential changes being necessary eady agreed.
