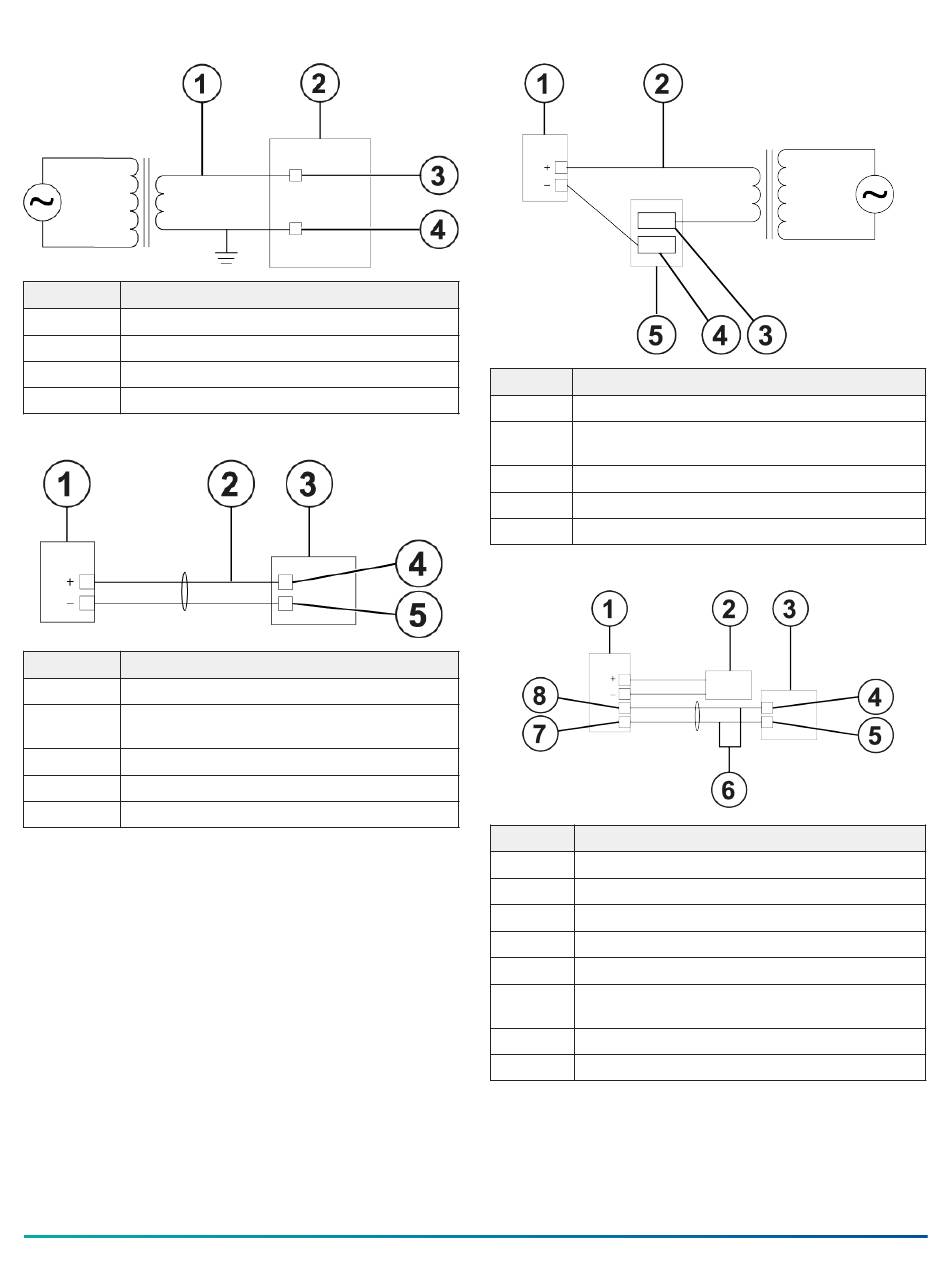

Figure 11: 24 VAC Class 2 transformer power input
Callout Description
1 20 AWG copper stranded wire
2 Controller
3 H terminal
4 G terminal
Figure 12: Analog output wiring
Callout Description
1 Field device
2 22 AWG copper stranded twisted wire up to
100 m (328 ft) in length.
3 Controller
4 Analog Output (AO) terminal
5 COM terminal
Figure 13: DO wiring
Callout Description
1 Field device
2 20 AWG copper stranded twisted wire up to
100 m (328 ft) in length
3 DO terminal
4 COM terminal
5 Controller
Figure 14: UI voltage mode wiring isolated
Callout Description
1 Field device
2 Power supply
3 Controller
4 UI terminal
5 COM terminal
6 22 AWG copper stranded twisted wire up to
100 m (328 ft) in length
7 COM terminal
8 Output (OUT) terminal
