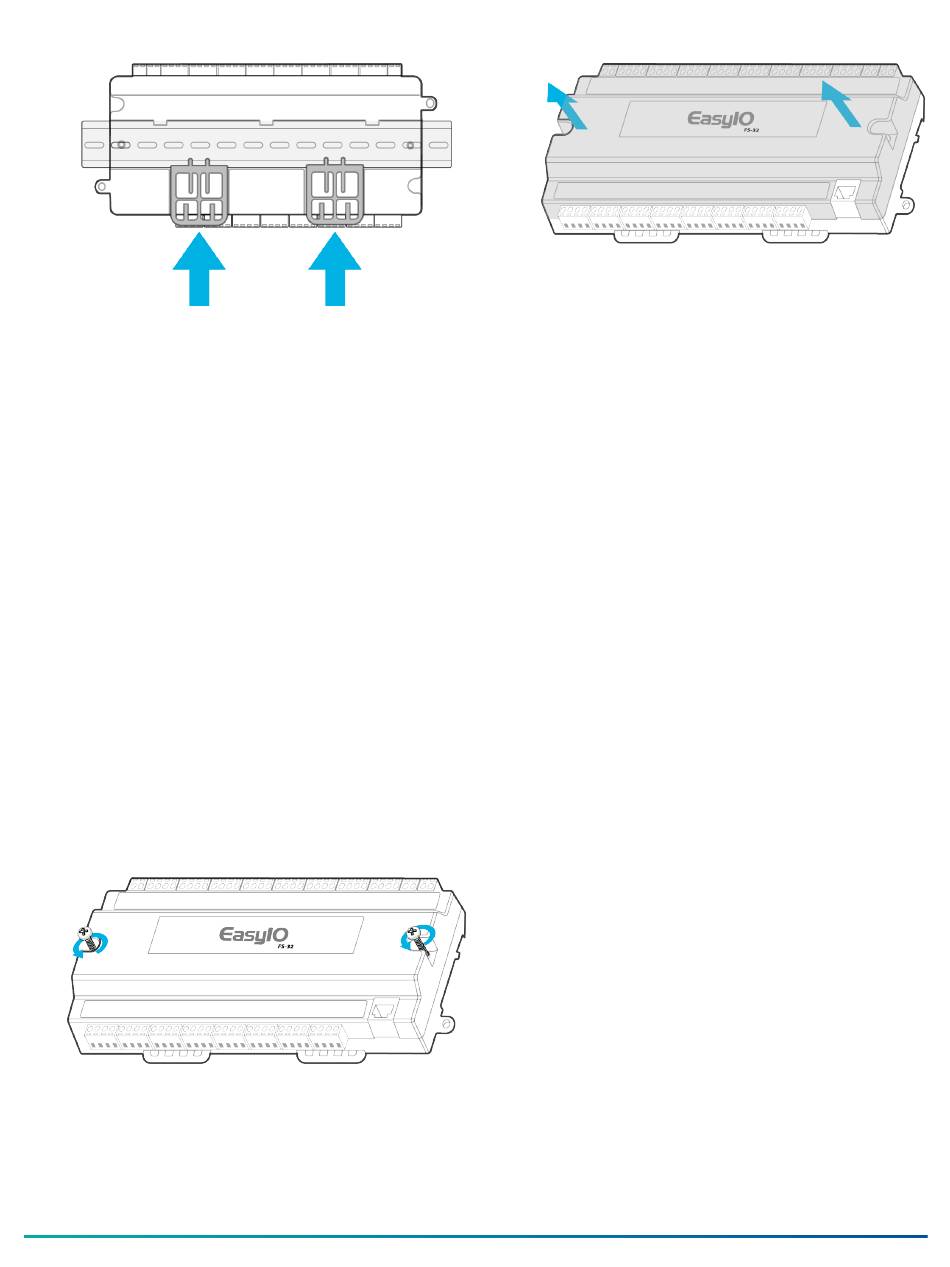

Figure 7: Closing the mounting clips (rear view)
Optional: For added security, use DIN rail end
5.
clips. For the DIN rail end clips locations, see Figure
1.
Mounting the controller to an enclosure
base plate
About this task:
If a DIN rail mount is not practical, the controller features
two mounting holes to screw mount the controller to an
enclosure base plate.
1. Place the controller on the enclosure surface and
mark the enclosure mounting holes on the surface.
For the enclosure mounting hole locations, see
Figure 1.
2. Drill both holes in the enclosure base plate.
3. Screw the controller to the enclosure base plate.

Removing the controller cover

About this task:
Remove the controller cover to access the circuitry,
jumpers, and to better access the reset and service
buttons.
1. Use a Philips screwdriver to unscrew both of the
top cover screws.
Figure 8: Unscrewing the cover
2. Hold both ends of the top cover and remove it. If
the top cover is stuck, separate the cover with a
flathead screwdriver.
4 FS-32 Quick Start Guide
Figure 9: Removing the cover
