EDA-8100 Electric Damper Actuator

Kit Includes

Tools Required

Installation

Overview

1. EDA-8100-1100 Electric Damper Actuator with counterclockwise
spring return, or
EDA-8100-1101 Electric Damper Actuator with clockwise spring
return
2. Two #10 mounting screws
3. Two isolator grommets
ς
screwdriver, flat blade, 1/4 to 5/16 inch and 1/8 inch tips
ς
drill, 5/32 inch (4 mm) drill bit, 1-1/4 inch hole saw
ς
adjustable wrench
ς
pliers

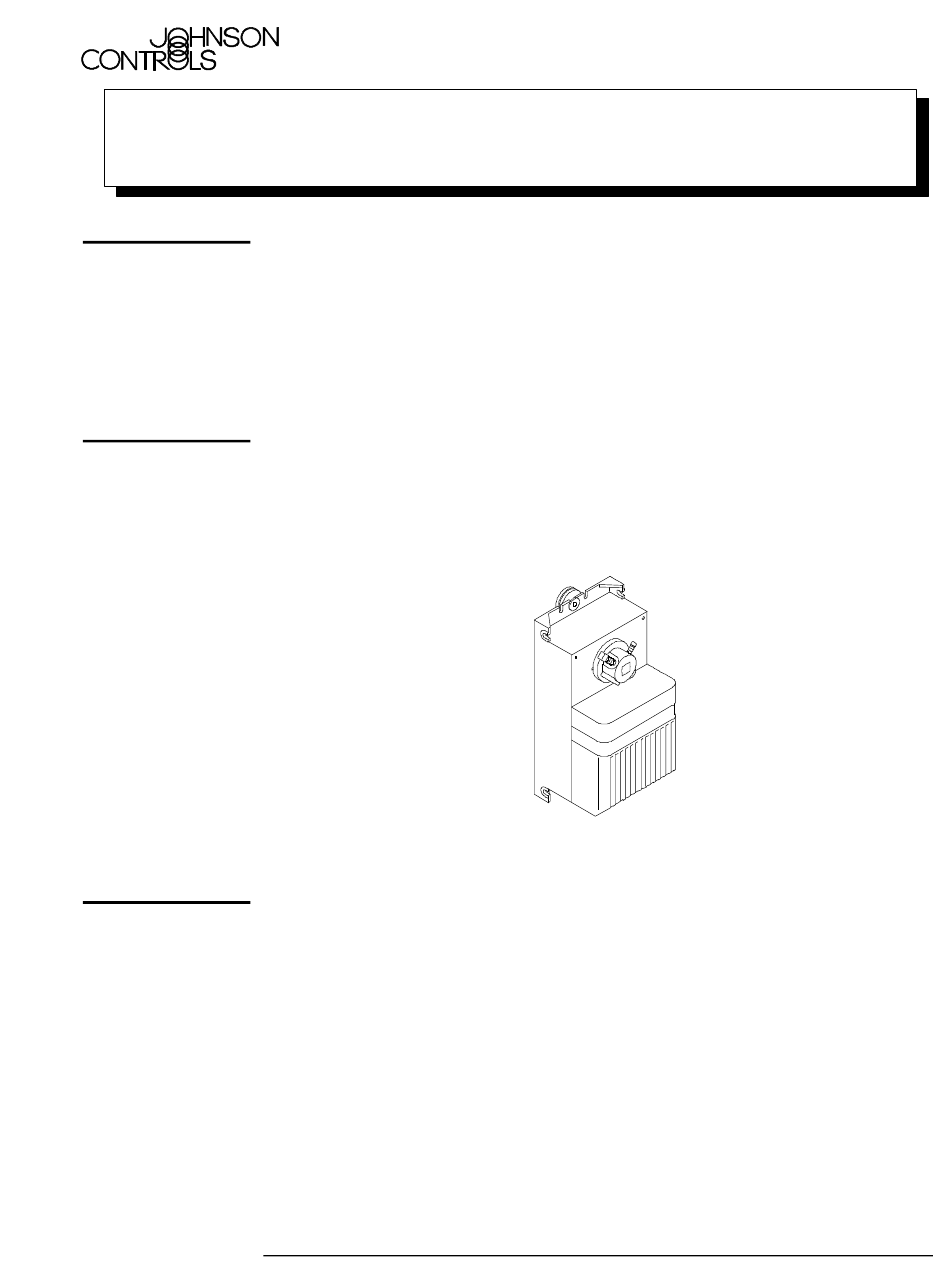

Figure 1: Electric Damper Actuator
1. Compatibility and torque:
ς
use on dampers having 10 to 12 mm (0.394 to 0.492 inch) square
or 7/16 to 1/2 inch (11 to 12.5 mm) round shafts
ς
compatible with Johnson Controls D-1300 Blade Dampers
ς
delivers 100 in·lb of stall torque
2. Mounting requirements:
ς
mounts in any orientation
ς
duct or wall must be 16 gauge (0.06 inch or 1.5 mm) or thicker
Note: Order the Universal Mounting Bracket (D-3153-105) to mount on
duct or wall less than 16 gauge.
Installation Sheet
Issue Date 0392
1
