EDA-8000 Electric Damper Actuator
Incremental Control without Spring Return
The EDA-8000 Electric Damper Actuator provides
clockwise and counterclockwise incremental control of
dampers and mounts directly on the damper drive
shaft, eliminating the need for costly and complicated
linkage combinations.
The mechanically limited torque output of 100 in·lb
provides long actuator life, protection of the controlled
equipment, and minimal setup and calibration time.
The EDA-8000 Electric Damper Actuator operates on
24 VAC power.
Direct Mount
Over Torque Protection (Patent Pending)
Up to 90 Degree Clockwise or
Counterclockwise Rotation
Precise Positioning Based on 24 VAC
Incremental Input Signals
Coupler Fits 10 to 12 mm (0.394 to 0.472 in.)
Square or 7/16 to 1/2 in. (11 to 12.5 mm)
Round Damper Shafts
Designed to Meet 300,000 Driven Cycles
Metasys® ® Network Compatible
Manual Override, Gear Release Lever
© 1994 Johnson Controls, Inc.
Part No. 34-621-7, Rev. A
Features and Benefits
Simplifies installation
Eliminates need for setup or maintenance of limit
switches. Extends life of the actuator.
Increases application versatility
Assures compatibility with most HVAC
controllers
Increases application versatility
Provides longer actuator life
Provides seamless integration for efficient, cost-
effective, facility-wide control
Enables direct manual positioning for easy setup
and air balancing
FANs 268.1, 125
Product/Technical Bulletin 8000

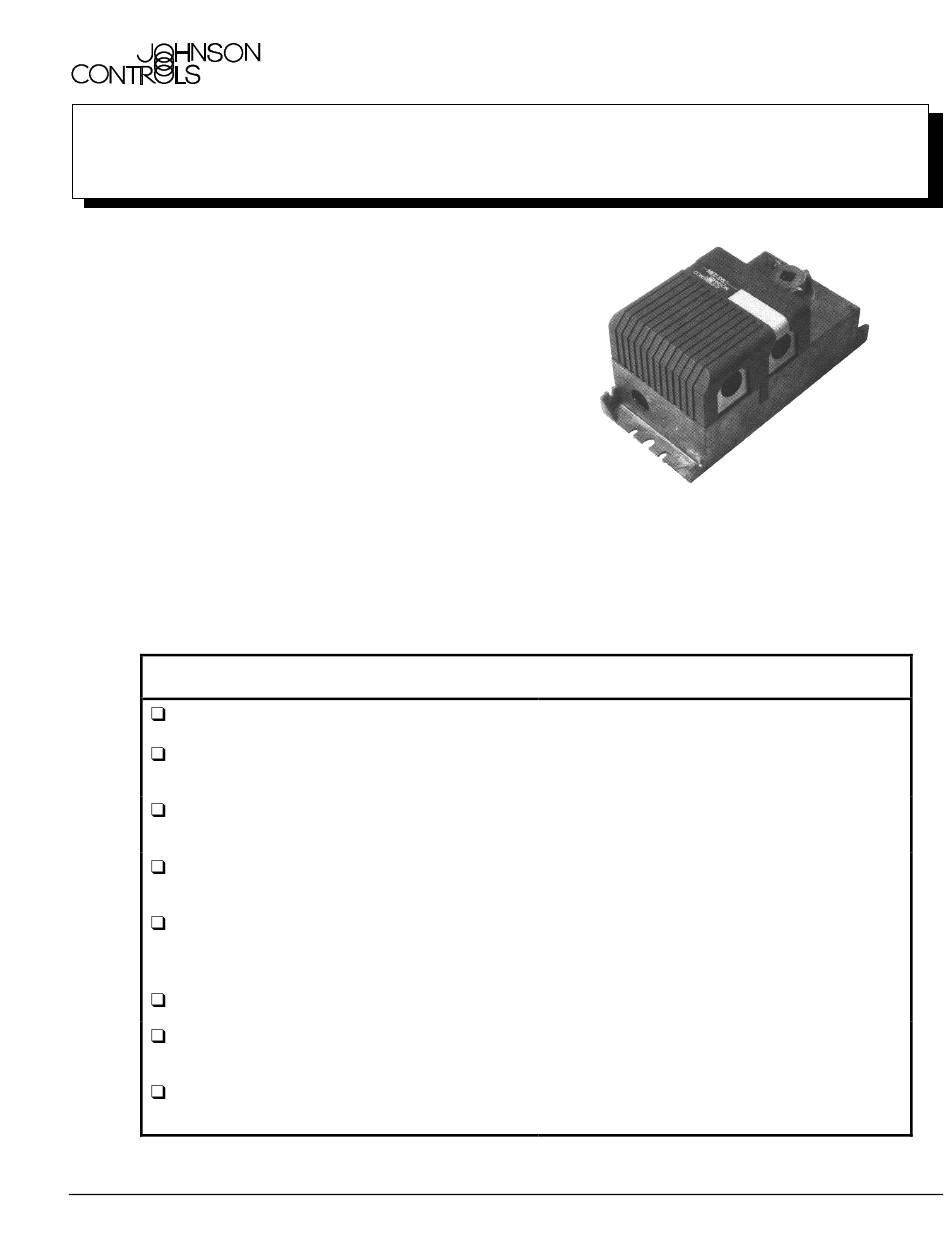

Figure 1: EDA-8000 Actuator
Issue Date 0394
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EDA-8000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Johnson Controls EDA-8000

Summary of Contents for Johnson Controls EDA-8000

  • Page 1 The mechanically limited torque output of 100 in·lb provides long actuator life, protection of the controlled equipment, and minimal setup and calibration time. Figure 1: EDA-8000 Actuator The EDA-8000 Electric Damper Actuator operates on 24 VAC power. Features and Benefits Direct Mount...

  • Page 2: Operation

    The EDA-8000 is designed to regulate control air The EDA-8000 Electric Damper Actuator provides a dampers in HVAC systems. Typical applications stall torque output of 100 in·lb with incremental control include: of dampers. It can also be used in a variety of other applications at 80 in·lb continuous load.

  • Page 3: Installation

    Kit Includes Dimension EDA-8000-1100 Electric Damper Actuator for direct Note: The actuator requires a minimum damper shaft shaft mounting length of four inches from the mounting surface. When determining shaft length, two No. 10 mounting screws consideration has to be given to channel two isolator grommets depth, insulation, etc.

  • Page 4: Direction Of Rotation

    1. Firmly grasp the drive pin extension with a pliers coupler fully CCW until the mechanical end and manually close the damper blades. stop is reached. See Figure 6. 2. Note which direction closes the damper, Clockwise (CW) or Counterclockwise (CCW). Figure 4: Removing Cover 4 EDA-8000 Product/Technical Bulletin...

  • Page 5: Standard Mounting

    Standard Mounting The EDA-8000 is not position sensitive and can be mounted in any convenient orientation on a duct or wall 7. Secure the actuator to the wall or duct with the that is 16 gauge (0.06 inch or 1.5 mm) or thicker as screws and isolation grommets included in the kit.

  • Page 6: Checkout Procedure

    F T1 From Controller T B1 Clockwise 24 VAC Counterclockwise 24 VAC C C W C O M Common Figure 9: Wiring Connections 4. Connect the leads to Terminal Block 1 (TB1) as shown in Figure 9. 6 EDA-8000 Product/Technical Bulletin...

  • Page 7: Ordering Information

    Information nit Replacement The EDA-8000 is not field repairable. For a Product Code Description replacement, contact the nearest Johnson Controls Number branch office or your wholesale distributor. EDA-8000-1100 Electric Damper Actuator, incremental, with 60 second travel time for 90 degrees, no spring return...
  • Page 8 The performance specifications are nominal and conform to acceptable industry standards. For application at conditions beyond these specifications, consult the local Johnson Controls office. Johnson Controls, Inc. shall not be liable for damages resulting from misapplication or misuse of its products.
