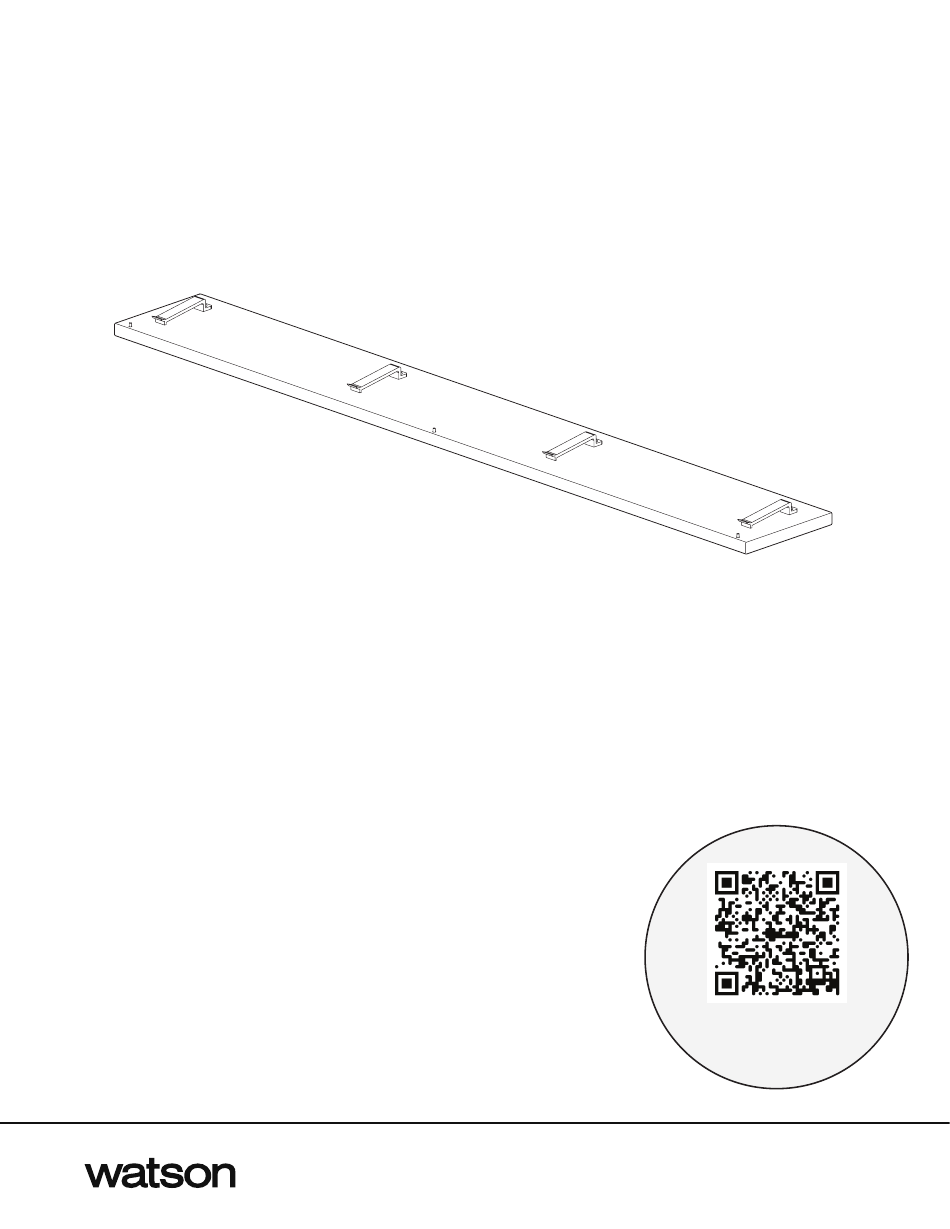

- Page 1 ASSEMBLY Tonic Single Sided Chicago Power View Digitally V.21.0 8/2024 360.394.1300 watsonfurniture.com...
- Page 2 Hardware Alligator Clip #10 x 5/8” Screw 8-32 x 1” Screw (486911) (122800) (493815) Tonic Worktable Components SINGLE-SIDED CHICAGO RACEWAY Tools Electric Drill P2 Phillips Driver Bit 2 TONIC SINGLE SIDED CHICAGO INFILL ASSEMBLY INSTRUCTIONS...

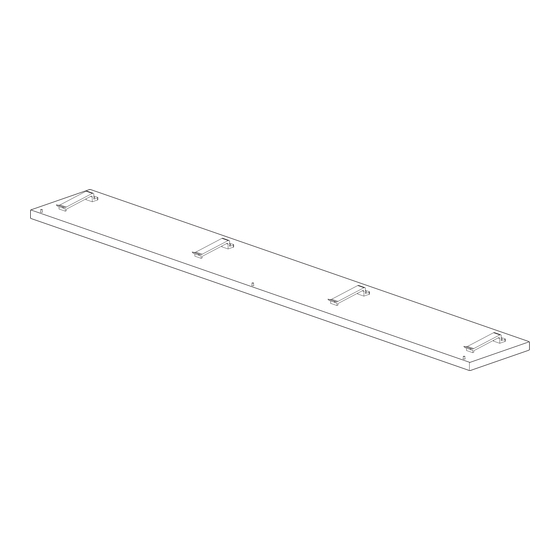

- Page 3 Attach Alligator Clips Attach alligator clips (486911) to Chicago raceway with wood screws (122800). DO NOT USE THE 1” LONG SCREWS THAT ARE USED TO SECURE THE PRIMARY DESKSURFACES. Alligator Clip #10 x 5/8” Screw (486911) (122800) 3 TONIC SINGLE SIDED CHICAGO INFILL ASSEMBLY INSTRUCTIONS...
- Page 4 Attach to Bench Note: Installation must be in accordance with the National Electrical Code and local codes. Electrically interconnected tables need to be mechanically connected. Attach Chicago raceway with alligator clips on the underside to raceway rails with 3 screws (493815). Note: Alliagator clips can be used to route data cables on the underside of the raceway.
