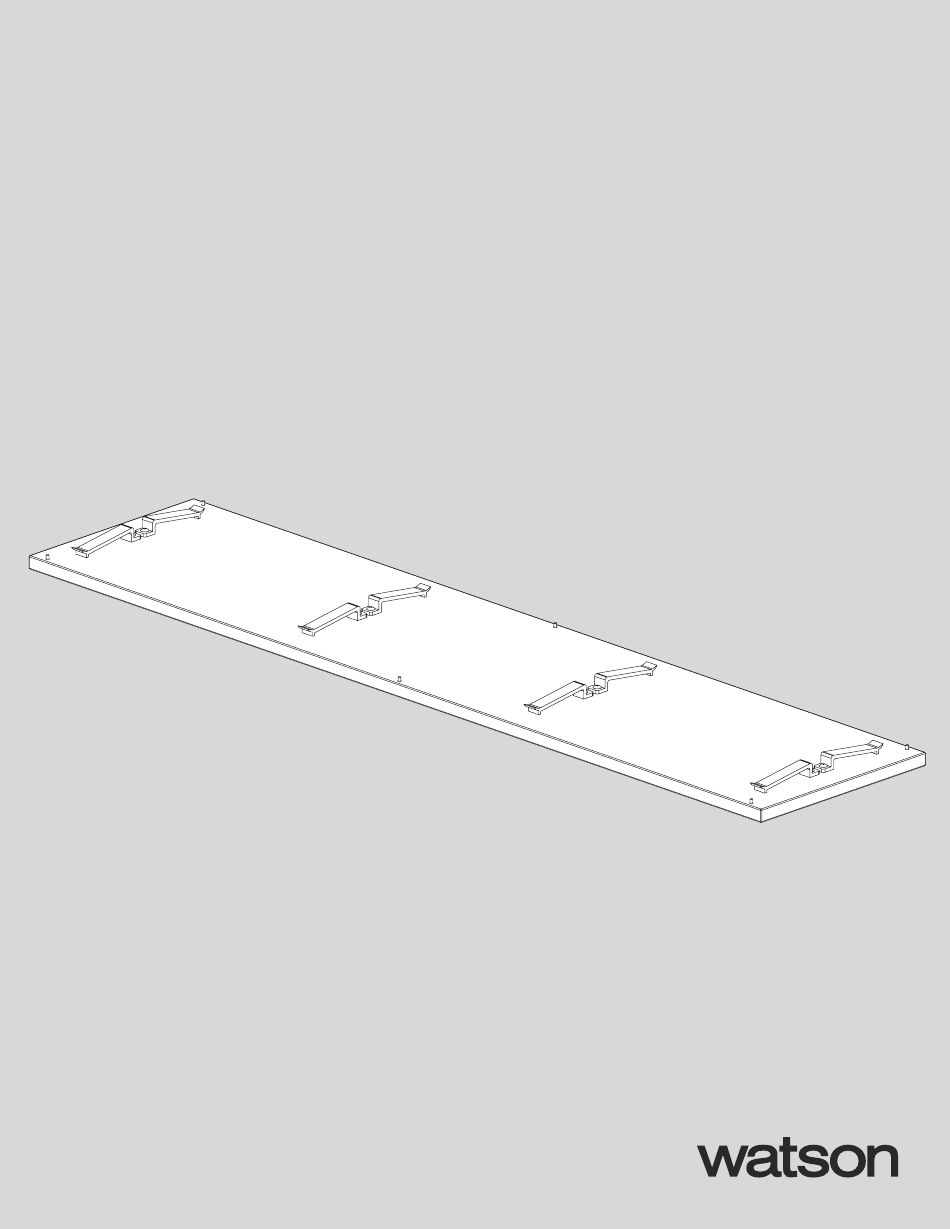

- Page 1 ASSEMBLY Tonic Dual Sided Chicago Infill 360.394.1300 watsonfurniture.com V.23.1 10/2023...
- Page 2 Hardware Alligator Clip #10 x 5/8” Screw 8-32 x 1” Screw (486911) (122800) (493815) Tonic Dual Sided Chicago Infill Components Chicago Raceway Tools Electric Drill P2 Phillips Driver Bit 2 TONIC DUAL SIDED CHICAGO INFILL ASSEMBLY INSTRUCTIONS...
- Page 3 Attach alligator clips (486911) to Chicago raceway with wood screws (122800). DO NOT USE THE 1” LONG SCREWS THAT ARE USED TO SECURE THE PRIMARY DESK SURFACES. #10 x 5/8” Screw (122800) 3 TONIC DUAL SIDED CHICAGO INFILL ASSEMBLY INSTRUCTIONS 3 TONIC DUAL SIDED CHICAGO INFILL ASSEMBLY INSTRUCTIONS...
- Page 4 Chicago raceway and infill above. Note: Installation must be in accordance with the National Electrical Code and local codes. Electrically interconnected tables need to be mechanically connected. 8-32 x 1” Screw (493815) 4 TONIC DUAL SIDED CHICAGO INFILL ASSEMBLY INSTRUCTIONS...
