Altronix eBridge PLUS eBridge100ST Installation Manual page 3

Fig. 2
eBridge100RM
eBridge100RM
eBridge100RM - Receiver
EoC Receiver
Passes PoE/PoE+
passes PoE/PoE+
RJ45 LEDs Yellow - Speed RJ45 LEDs Yellow - Speed
Green - Activity Green - Activity
Green LED Power and PoE
Yellow LED Power and PoE
Z1409
Z1409
I.T.E. 43KC Brooklyn, NY, U.S.A.
I.T.E. 43KC
www.altronix.com
www.altronix.com
Output
Coax RJ45 PoE PoE
Link
Link LED Input
RJ45 PoE PoE
Coax OUT LED Input
*Note: Caution: once PoE connection is established between eBridge100RM and eBridge100ST, disconnection
from eBridge100ST will not disable the PoE output voltage on the eBridge100RM. Although the eBridge100ST can
be reconnected, caution should be taken not to connect coax wiring from eBridge100RM to any non-PoE device.
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Fig. 3
Endspan or Midspan
eBridge100ST Installation Guide
Single PoE Camera Connection:
Mounting Hole
Input
PoE
LED
PoE
LED
100m
max.
Midspan or
PoE Switch
PoE/PoE+ over Coax up to 300m max.

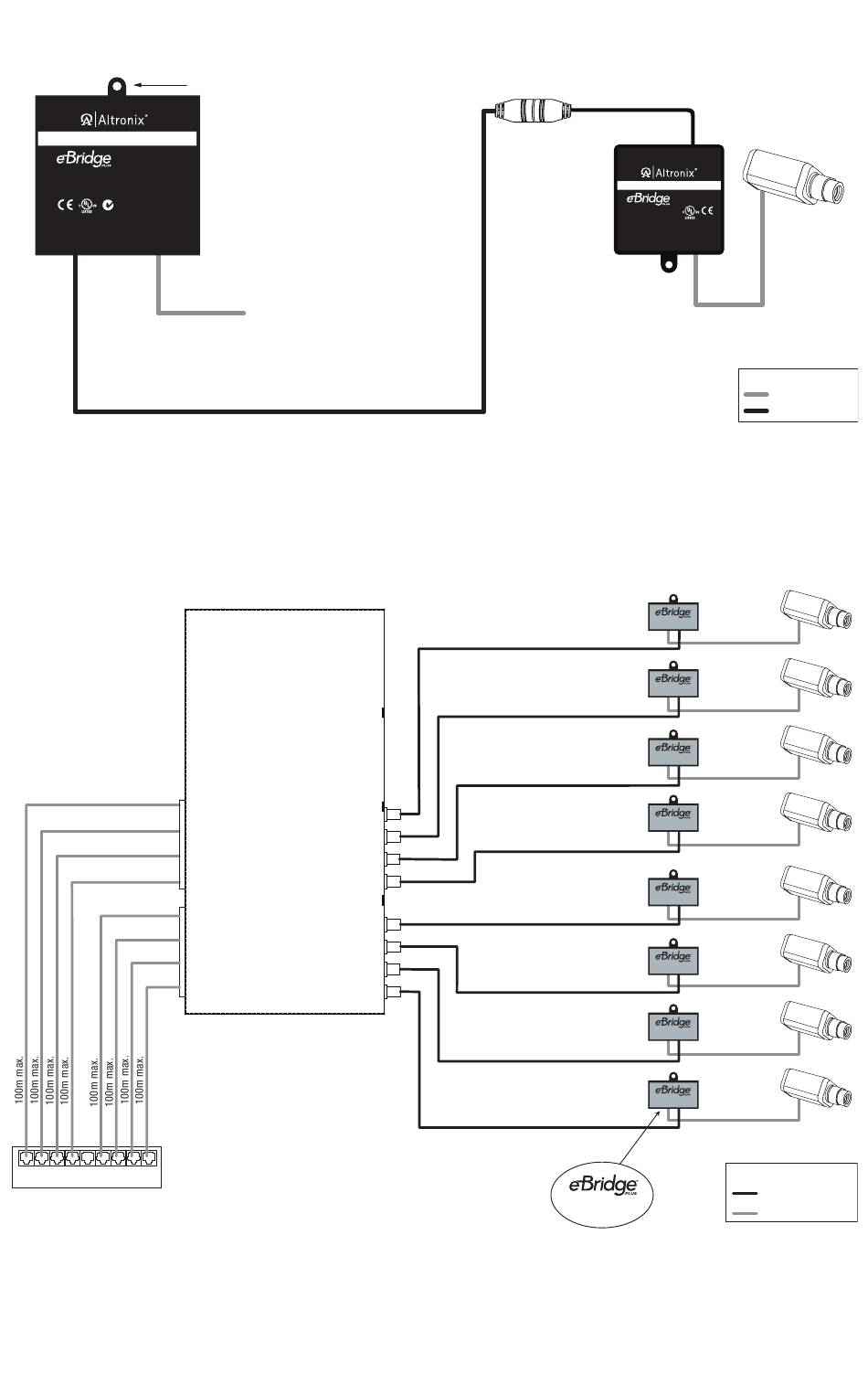

Typical Application:
eBridge800PCRM
Fig. 2a
eBridge100ST
Coax Coax
Link Link
eBridge100ST - Transceiver
eBridge100ST - Transceiver
Supports PoE/PoE+
Supports PoE/PoE+
RJ45 LEDs Yellow - Speed
RJ45 LEDs Yellow - Speed
Green - Activity
Green - Activity
Yellow LED Power and PoE
Yellow LED Power and PoE
PoE
Out
PoC (PoE+ over Coax) eBridge100ST
300m max.
PoC (PoE+ over Coax)
eBridge100ST
300m max.
PoC (PoE+ over Coax) eBridge100ST
300m max.
eBridge100ST
PoC (PoE+ over Coax)
300m max.
PoC (PoE+ over Coax) eBridge100ST
300m max.
PoC (PoE+ over Coax)
eBridge100ST
300m max.
eBridge100ST
PoC (PoE+ over Coax)
300m max.
PoC (PoE+ over Coax) eBridge100ST
300m max.
eBridge100ST
Coax
PoE Camera
I.T.E. 43KC
Brooklyn, NY, U.S.A.
www.altronix.com
www.altronix.com
RJ45
RJ45
Link
Link
PoE compliant
100m max.
Legend:
Structured Cable
Coax
PoE compliant
100m max.
PoE Camera
PoE compliant
100m max.
PoE Camera
PoE compliant
100m) max.
PoE Camera
PoE compliant
100m max.
PoE Camera
PoE compliant
100m max.
PoE Camera
PoE compliant
100m max.
PoE Camera
PoE compliant
100m max.
PoE Camera
PoE compliant
100m max.
PoE Camera
Legend:
Coax
Structured Cable
- 3 -
