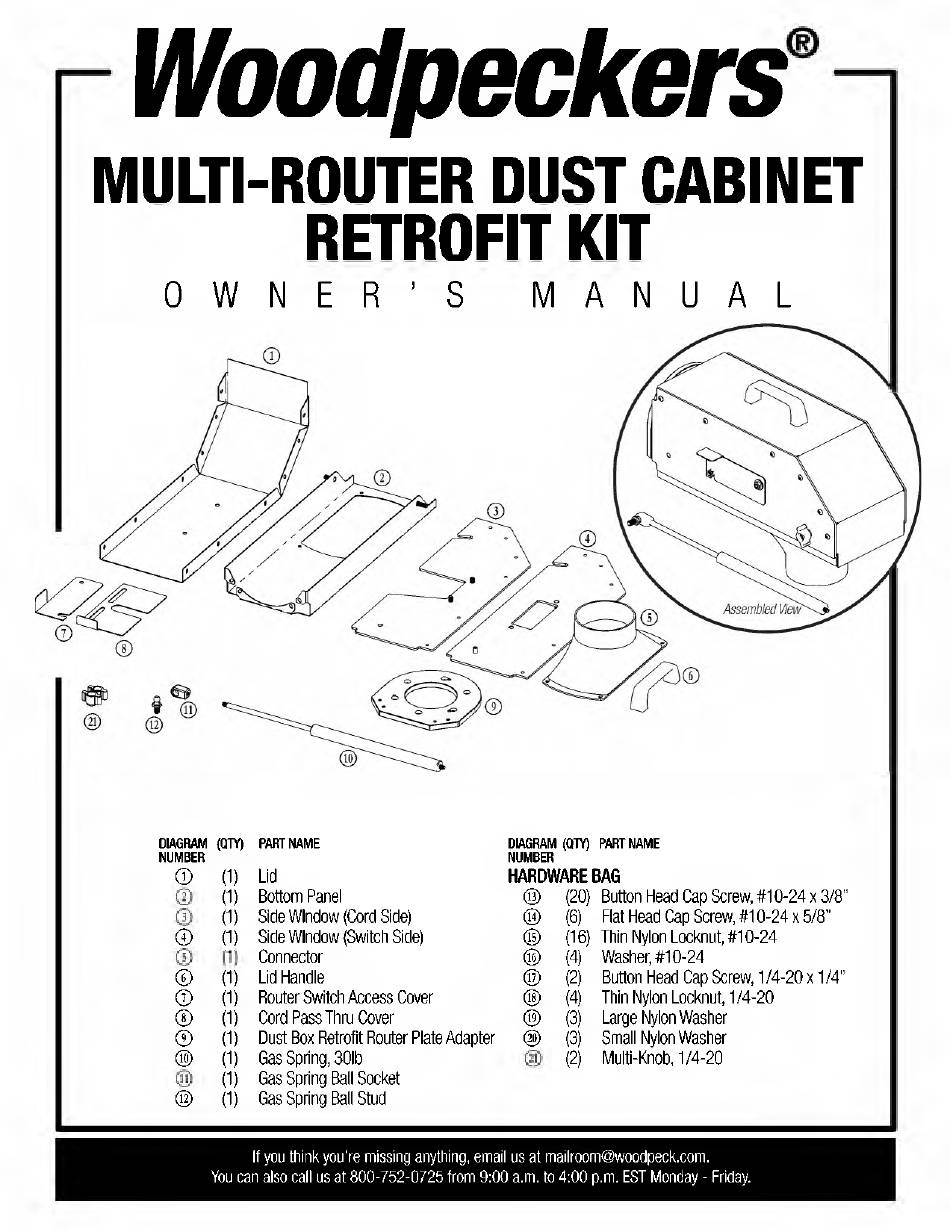

Woodpeckers MULTI-ROUTER DUST CABINET RETROFIT KIT Owner's Manual

oodpeckers
ULTI-ROUTER DUST CABINET
RETROFIT KIT
DIAGRA
NU BER
(QTY) PART NA E
1
(1)
Lid
2
(1)
Bottom Panel
3
(1) Side Window (Cord Side)
4
(1)
Side Window (Switch Side)
5
(1)
Connector
6
(1)
Lid Handle
7
(1)
Router Switch Access Cover
8
(1) Cord Pass Thru Cover
9
(1)
Dust Box Retrofit Router Plate Adapter
10
(1)
Gas Spring, 30 lb
11
(1)
Gas Spring Ball Socket .
12
(1)
Gas Spring Ball Stud
If you think you ' re missing anything, email us at mailroom@woodpeck.com .
You can also call us at 800-752-0725 from 9:00 a.m. to 4:00 p.m. EST Monday - Friday.
DIAGRA
NU BER
(QTY) PART NA E
HARDW A
13
(20) Button Head Cap Screw, #10-24 x 3/8 "
14
(6)
Flat Head Cap Screw, #10-24 x 5/8 "
15
(16) Thin Nylon Locknut, #10-24
16
(4)
Washer, #10-24
17
(2)
Button Head Cap Screw, 1/4-20 x 1/4 "
18
(4)
Thin Nylon Locknut, 1/4-20
19
(3)
Large Nylon Washer
20
(3)
Small Nylon Washer
21
(2)
Multi-Knob, 1/4-20
WNER ' S MANUAL
