Woodpeckers MFT Owner's Manual

Layout & assembly square

MFT Layout & Assembly Square

Owner's Manual

The primary function of the Woodpeckers MFT Layout & Assembly

Square is to align the miter fence and the guide rail on the Festool

MFT table. However, it is also useful for setting 45 & 90-degree

angles on your table and miter saw, or larger bandsaw, as well as

clamping large workpieces.

If you think you're missing anything, please email us at mailroom@

woodpeck.com. You can also call us at 440.238.1918 from 9:00 a.m.

to 5:00 p.m. EST Monday–Friday.

If you think you're missing anything, email us at mailroom@woodpeck.com.

You can also call us at 800-752-0725 from 9:00 a.m. to 5:00 p.m. EST Monday - Friday.

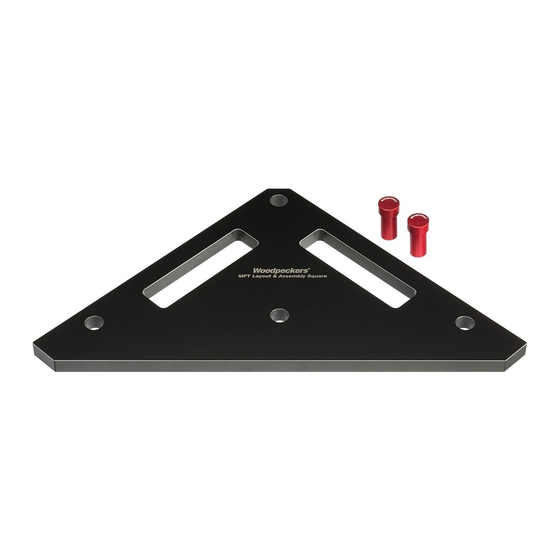

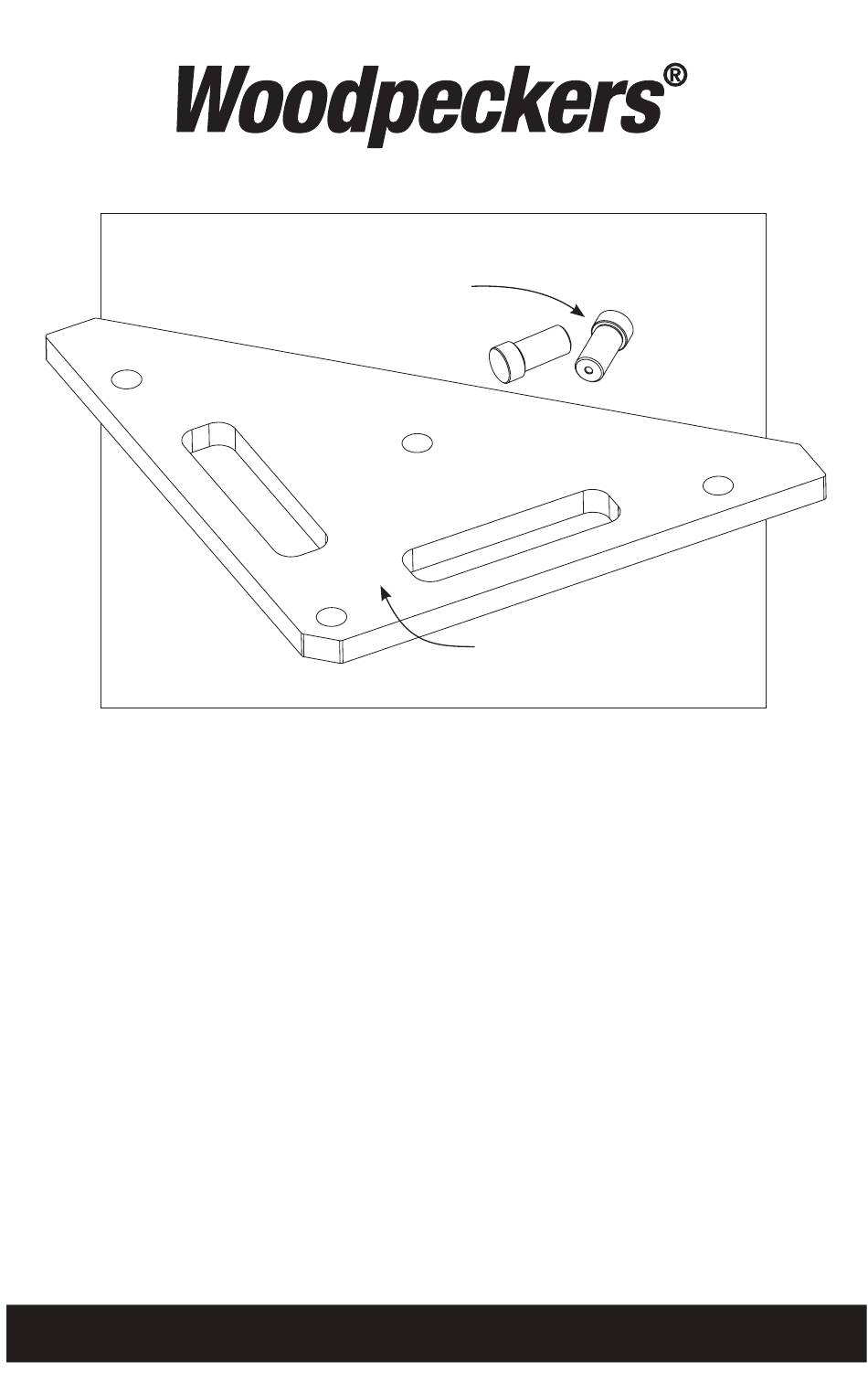

MFT Layout & Assembly

Square Dogs

MFT Layout & Assembly

Square

Table of Contents

Need help?

Do you have a question about the MFT and is the answer not in the manual?

Page 1 The primary function of the Woodpeckers MFT Layout & Assembly Square is to align the miter fence and the guide rail on the Festool MFT table. However, it is also useful for setting 45 & 90-degree angles on your table and miter saw, or larger bandsaw, as well as clamping large workpieces.
Page 2 Using the MFT Layout & Assembly Square Set the guide rail into position. Place the MFT Layout & Assembly Square against the guide rail. Align the fence to the square and lock into place. Woodpeckers ®...
Page 3 MFT table. The large 1 " x 6" slots accommodate both the MFT style clamps as well as most F-body style clamps. Since the square will stand without support on a level surface, it leaves both hands available to add the clamps.
Page 4 PRECISION WOODWORKING TOOLS MADE IN USA woodpeck.com Woodpeckers, LLC Strongsville, Ohio · © 2018 Woodpeckers, LLC WARNING! This product can expose you to chemicals, including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov...
