Garmin FORCE Field Service Manual page 71

Removing the Electronics Cover
If you are planning to remove the PCB for service, before you remove the electronics cover, you must remove
the steering servo from the mount
from the steering servo (Removing the Shaft from the Steering Servo,

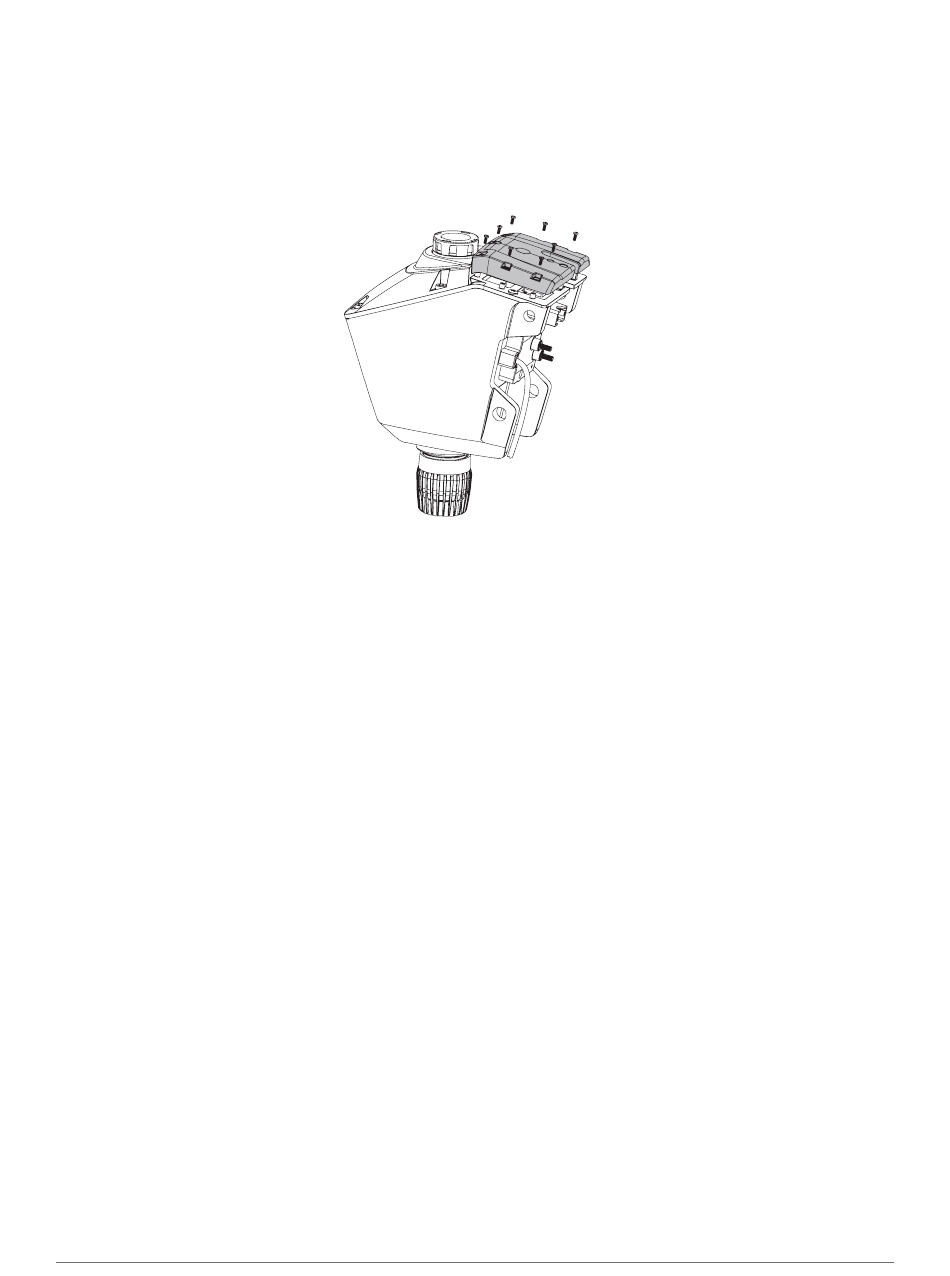

1 Using a #1 Philips screwdriver, remove the eight screws that secure the electronics cover to the steering
servo housing.
NOTE: The screws are not secured to the electronics cover. Take care when removing the cover because the
screws are loose and may fall out.
2 Lift the cover up and away from the steering servo housing.
(Removing the Steering Servo from the Mount, page 47) and remove the shaft
page 32).
71
