Garmin FORCE Field Service Manual page 7

Lubricating the Hinges and Bushings
There are a number of hinges and bushings that allow the motor to transition smoothly from the stowed to
deployed position and back again. You should lubricate these areas as needed.

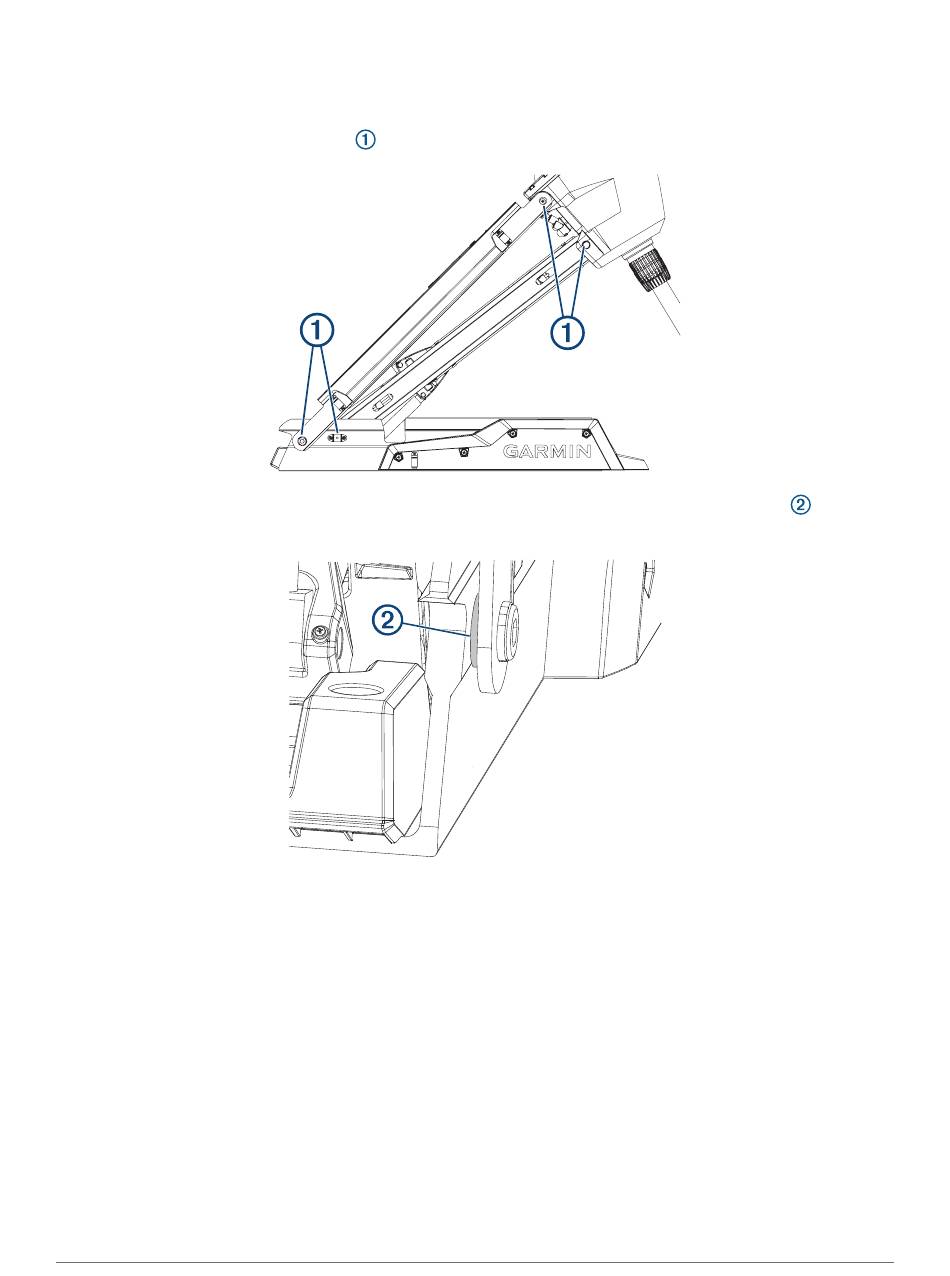

1 Locate the four primary hinge points
2 Apply a non-stick, dry-film lubricant to each hinge point, in the space between the moving parts
it to dry according to the instructions provided with the product.
3 Move the motor from the stowed to the deployed position and back a number of times to distribute the
lubricant.
4 If necessary, apply additional lubricant and repeat the previous step.
.
, and allow
