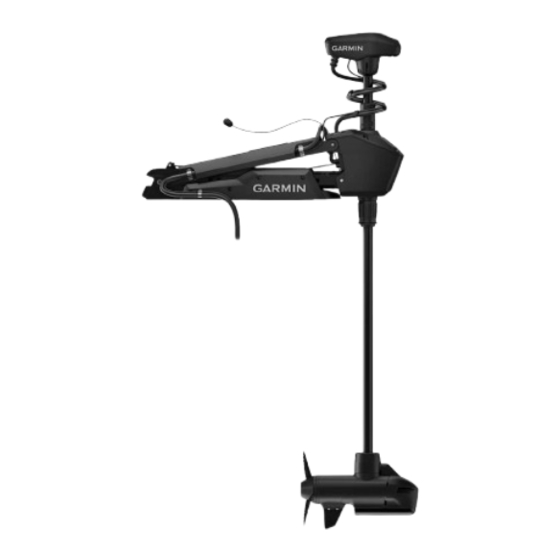

FORCE
PRO TROLLING MOTOR
®
TRANSDUCER REPLACEMENT INSTRUCTIONS
Getting Started
WARNING
Always disconnect the motor from the battery before handling or working with the propeller, propeller drive
motor, electrical connections, or electronics enclosures to avoid serious injury or death.
CAUTION
For the best possible performance and to avoid potential injury, damage to the device, or damage to your vessel,
installation by a qualified marine installer is recommended.
When stowing or deploying the motor, be aware of the risk of entrapment or pinching from moving parts, which
can result in personal injury.
This manual covers replacing the transducer on a Force Pro trolling motor. If you are upgrading a Force trolling
motor with the GT56UHD-TR transducer, you should refer to the Transducer Replacement Instructions for the
Force trolling motor on garmin.com/manuals/force_trolling_motor.
You should read these instructions completely before beginning this service, and make sure that you have the
tools and skill set needed to complete it. If necessary, you should use a qualified marine installer to ensure
proper service.
Tools Needed
• #2 and #3 Phillips screwdrivers
• 3 and 4 mm hex bits or drivers
• 4 mm ball-head hex bit or driver
NOTE: A ball-head bit is highly recommended due to the angle of some screws.
• Torque wrench
• Medium-strength thread-locking compound, such as LOCTITE
243
®
™
• Canned compressed air or an air compressor
March 2025
