MA298 (de_en)
Montageanleitung
PV-Kupplungsbuchse PV-KBT4-EVO 2A/...
PV-Kupplungsstecker PV-KST4-EVO 2A/...
MC4-Evo 2
Inhalt
Sicherheitshinweise ���������������������������������������������������������������������2
Erforderliches Werkzeug ��������������������������������������������������������������3
Vorbereitung der Leitung ��������������������������������������������������������������4
Leitfaden zur Konfiguration der Steckverbinder ����������������������������4
Crimpen ��������������������������������������������������������������������������������������6
Montageprüfung ��������������������������������������������������������������������������7
Stecken und Trennen �������������������������������������������������������������������8
Hinweise zur Installation ���������������������������������������������������������������9
Technische Daten ����������������������������������������������������������������������10

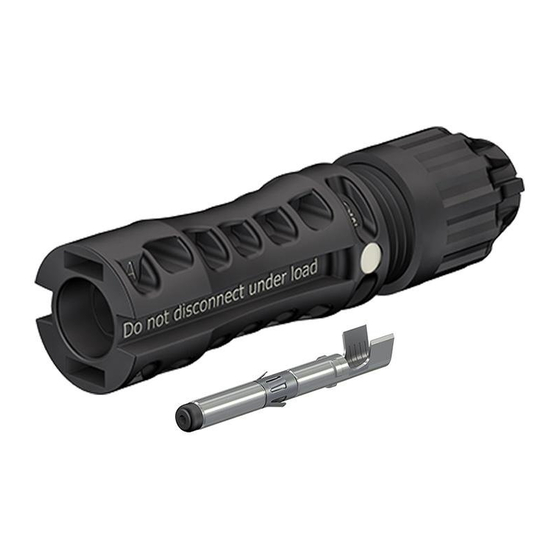

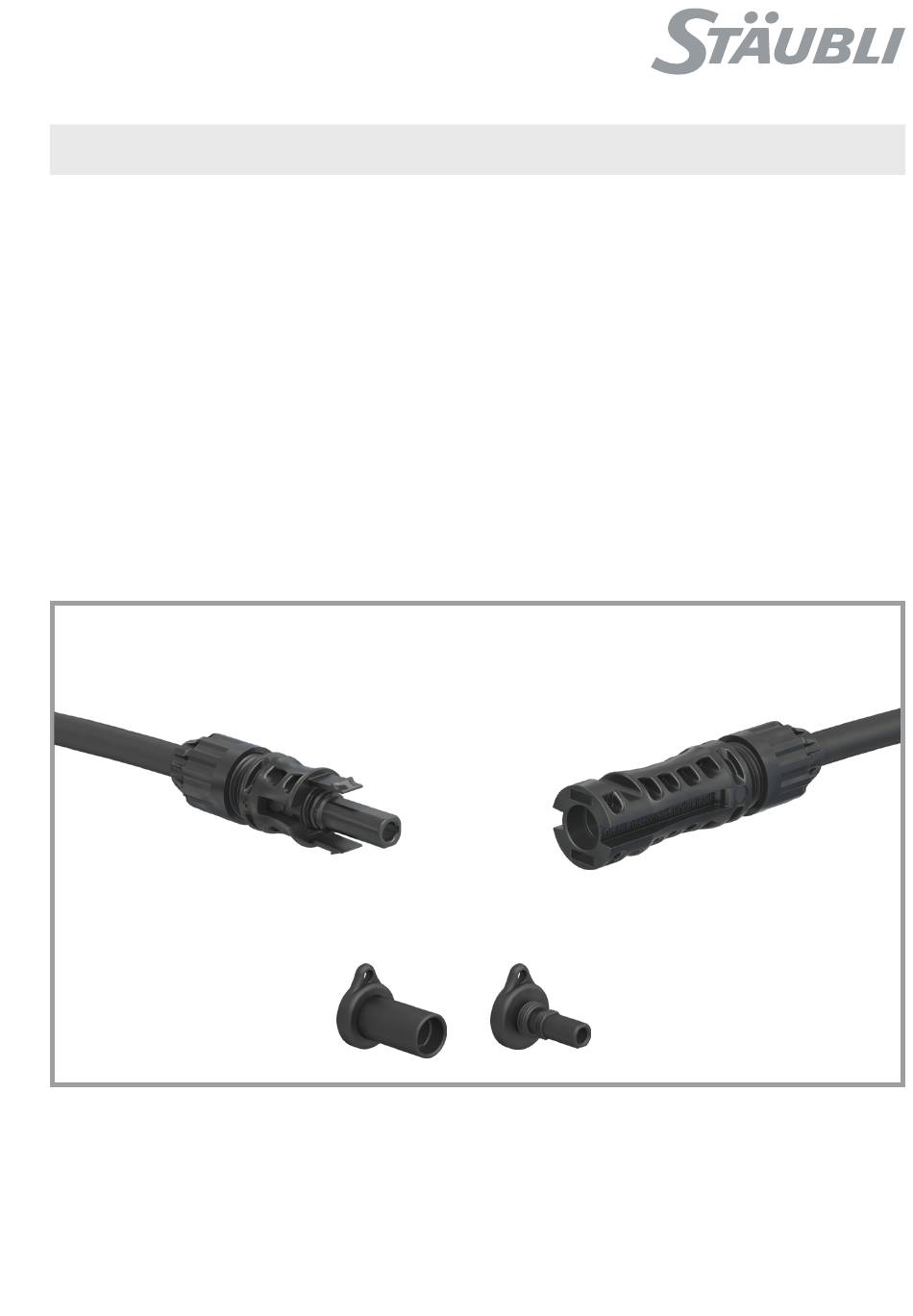

Kupplungsbuchse
Female coupler
PV-KBT4-EVO 2A/...
MA298 (de_en)
Assembly instructions
PV female coupler PV-KBT4-EVO 2A/...
PV male coupler PV-KST4-EVO 2A/...
MC4-Evo 2
Content
Safety Instructions �����������������������������������������������������������������������2
Tools required ������������������������������������������������������������������������������3
Cable preparation ������������������������������������������������������������������������4
Guideline for configuring the connectors ��������������������������������������4
Crimping ��������������������������������������������������������������������������������������6
Assembly check ��������������������������������������������������������������������������7
Mating and disconnecting ������������������������������������������������������������8
Notes on installation ��������������������������������������������������������������������9
Technical Data ���������������������������������������������������������������������������10
Verschlusskappen/Sealing caps
PV-BVK4
PV-SVK4
32.0716
32.0717
Kupplungsstecker
Male coupler
PV-KST4-EVO 2A/...
1 / 12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MC4-Evo 2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Staubli MC4-Evo 2

  • Page 1: Table Of Contents

    MA298 (de_en) MA298 (de_en) Montageanleitung Assembly instructions PV-Kupplungsbuchse PV-KBT4-EVO 2A/… PV female coupler PV-KBT4-EVO 2A/… PV-Kupplungsstecker PV-KST4-EVO 2A/… PV male coupler PV-KST4-EVO 2A/… MC4-Evo 2 MC4-Evo 2 Inhalt Content Sicherheitshinweise ���������������������������������������������������������������������2 Safety Instructions �����������������������������������������������������������������������2 Erforderliches Werkzeug ��������������������������������������������������������������3 Tools required ������������������������������������������������������������������������������3 Vorbereitung der Leitung ��������������������������������������������������������������4...
  • Page 2: Sicherheitshinweise

    Dokument beschrieben anwendbar werden� For more information, contact Stäubli • Für mehr Informationen Stäubli kontaktieren www�staubli�com/electrical • www�staubli�com/electrical Anforderungen an das Personal Requirements for personnel Die Montage und Installation dürfen ausschließlich von einer...
  • Page 3: Erforderliches Werkzeug

    (ill. 2) (ill. 2) Crimpzange PV-CZM��� und Lokator� Crimping pliers PV-CZM��� and locator� Crimpbereich Crimpzange Lokator Crimping range Crimping pliers Locator 2.5/4/6 mm² PV-CZM-61100 PV-LOC-MC4-EVO 2 (14/12/10 AWG) 32.6020-61100 32.6084 4/10/6 mm PV-CZM-60100 PV-LOC-MC4-EVO 2 (12/8/10 AWG) 32.6020-60100 32.6083 Hinweis: Note: Bedienungsanleitung MA704, Operating instructions MA704, www�staubli�com/re-downloads�html...
  • Page 4: Vorbereitung Der Leitung

    Vorbereitung der Leitung Cable preparation Es müssen Anschlussleitungen mit einem flexiblen Litzenaufbau Cables with a strand class 5 and 6 shall be connected� der Klassen 5 und 6 verwendet werden� Ausschließlich verzinnte Use tinned copper cables only� Kupferleitungen verwenden� Achtung Attention Keine oxidierten oder blanken Leitungen verwenden�...
  • Page 5 (XLPE cable)� The use of this cable type with crimpen� Der Einsatz dieses Leitungstyps in Verbindung MC4-Evo 2 connectors does not fulfill the strain relief require- mit MC4-Evo 2 Steckverbindern erfüllt nicht die UL 6703 ments of UL 6703�...
  • Page 6: Crimpen

    (ill. 8) (ill. 8) Leitungsisolation 6,0 mm bis 7,5 mm Strip cable insulation down by 6�0 mm abisolieren� to 7�5 mm� Achtung Attention Beim Abisolieren keine Einzeldrähte Do not cut individual strands during abschneiden! stripping! Crimpen Crimping (ill. 9) (ill. 9) Klemmbügel (K) öffnen und festhalten� Open clamp (K) and hold tight�...
  • Page 7: Montageprüfung

    (ill 12) (ill 12) Crimpung visuell kontrollieren be- Visually check the crimp according to züglich der Kriterien, die in the criteria written in IEC 60352-2� IEC 60352-2 beschrieben sind� Sicherstellen, dass: Confirm that: alle Litzen in der Crimphülse einge- all of the strands have been captured •...
  • Page 8: Stecken Und Trennen

    >0 Hinweis Note Hutmutter nicht auf Block verschrauben� Do not bottom out the capnut� Stecken und Trennen Mating and disconnecting (ill. 16) (ill. 16) Stecken: Mating: Steckverbinder zusammenstecken bis Mate the cable coupler until a „click“ ein „Klick“ hörbar ist� Korrektes Einras- can be heard�...
  • Page 9: Hinweise Zur Installation

    Hinweise zur Installation Notes on installation Hinweis Note Wenn der Steckverbinder in Niederspannungs-Gleichstrom If the connector is to be used in low-voltage DC applications Anwendungen für andere Zwecke als in einem Photovoltaik- other than those in a photovoltaic array, please consult the infor- System verwendet werden soll, befolgen Sie bitte die Hinweise mation as provided in the Stäubli Technical Description Report�...
  • Page 10: Technische Daten

    Technische Daten Technical Data Typenbezeichnung Type designation PV-KST4-EVO 2A/xy ; PV-KBT4-EVO 2A/xy Steckverbindersystem Connector system Ø 4 mm DC 1500 V (IEC 62852:2014+Amd.1:2020) Bemessungsspannung Rated voltage DC 1500 V (UL) 39 A (2.5 mm²) 45 A (4.0 mm²) Bemessungsstrom (IEC) Rated current (IEC) 53 A (6.0 mm²) 69 A (10.0 mm²)
  • Page 11 Notizen/Notes: MA298 11 / 12...
  • Page 12 Notizen/Notes: Hersteller/Manufacturer: Stäubli Electrical Connectors AG Stockbrunnenrain 8 4123 Allschwil/Switzerland Tel. +41 61 306 55 55 +41 61 306 55 56 mail ec.ch@staubli.com www.staubli.com/electrical 12 / 12 MA298...
