MA000 (de_en)
MA713 (fr_en)
Montageanleitung
Notice de montage
Prise à encastrer femelle PV-ADB4-EVO 2A/...
Prise à encastrer mâle PV-ADS4-EVO 2A/...

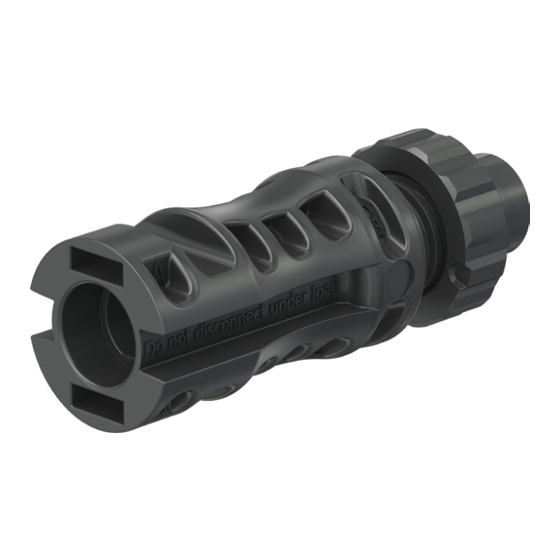

MC4-Evo 2
Sommaire
Consignes de sécurité �����������������������������������������������������������������2
Outillage nécessaire ���������������������������������������������������������������������3
Préparation du câble ��������������������������������������������������������������������4
Sertissage �����������������������������������������������������������������������������������5
Montage des prises à encastrer ���������������������������������������������������7
Test d'assemblage�����������������������������������������������������������������������8
Embrochage et débrochage ��������������������������������������������������������9
Remarques sur l'installation �������������������������������������������������������10
Données techniques ������������������������������������������������������������������11
Prise à encastrer femelle
Female panel receptacle
PV-ADB4-EVO 2A/...
MA713 (fr_en)
MA000 (de_en)

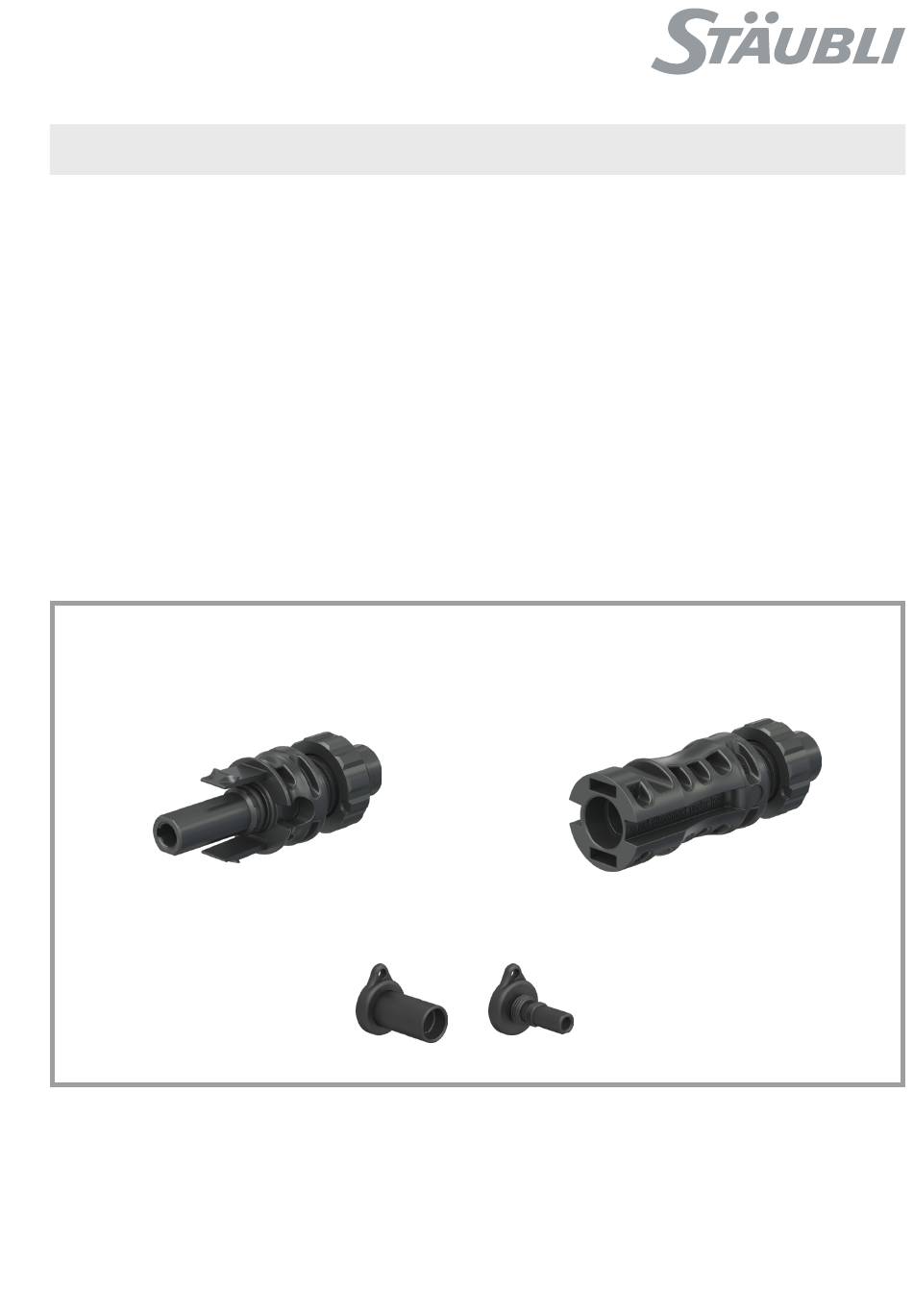

Assembly instructions
Assembly instructions
PV Female panel receptacle PV-ADB4-EVO 2A/...
PV Male panel receptacle PV-ADS4-EVO 2A/...
MC4-Evo 2
Content
Safety Instructions �����������������������������������������������������������������������2
Tools required ������������������������������������������������������������������������������3
Cable preparation ������������������������������������������������������������������������4
Crimping ��������������������������������������������������������������������������������������5
Installation of receptacles �������������������������������������������������������������7
Assembly check ��������������������������������������������������������������������������8
Mating and disconnecting ������������������������������������������������������������9
Notes on installation ������������������������������������������������������������������10
Technical data ���������������������������������������������������������������������������11
Bouchons de protection/Sealing caps
PV-BVK4
PV-SVK4
32.0716
32.0717
Prise à encastrer mâle
Male panel receptacle
PV-ADS4-EVO 2A/...
1 / 12
