MA273 (de_en)
Montageanleitung
PV-Kupplungsbuchse PV-KBT4-EVO 2-UR
PV-Kupplungsstecker PV-KST4-EVO 2-UR
MC4-Evo 2
Inhalt
Einleitung �������������������������������������������������������������������������������������1
Sicherheitshinweise ���������������������������������������������������������������������2
Erforderliches Werkzeug ��������������������������������������������������������������3
Leitfaden zur Konfiguration der Steckverbinder ����������������������������4
Vorbereitung der Leitung ��������������������������������������������������������������5
Crimpen ��������������������������������������������������������������������������������������6
Montageprüfung ��������������������������������������������������������������������������7
Stecken und Trennen �������������������������������������������������������������������8
Hinweise zur Installation ���������������������������������������������������������������9
Technische Daten ����������������������������������������������������������������������10
Notizen ������������������������������������������������������������������������������11 - 12

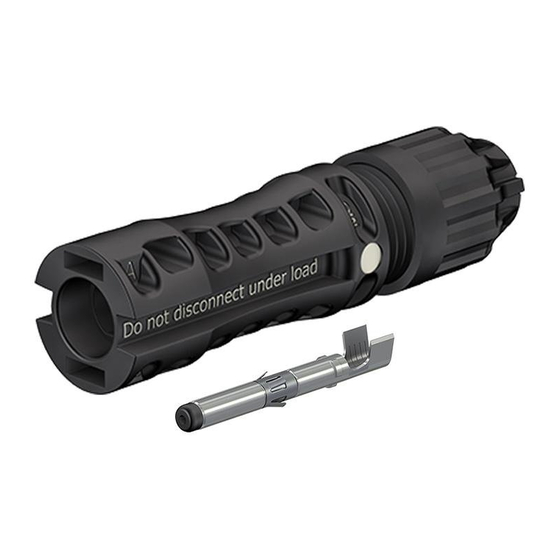

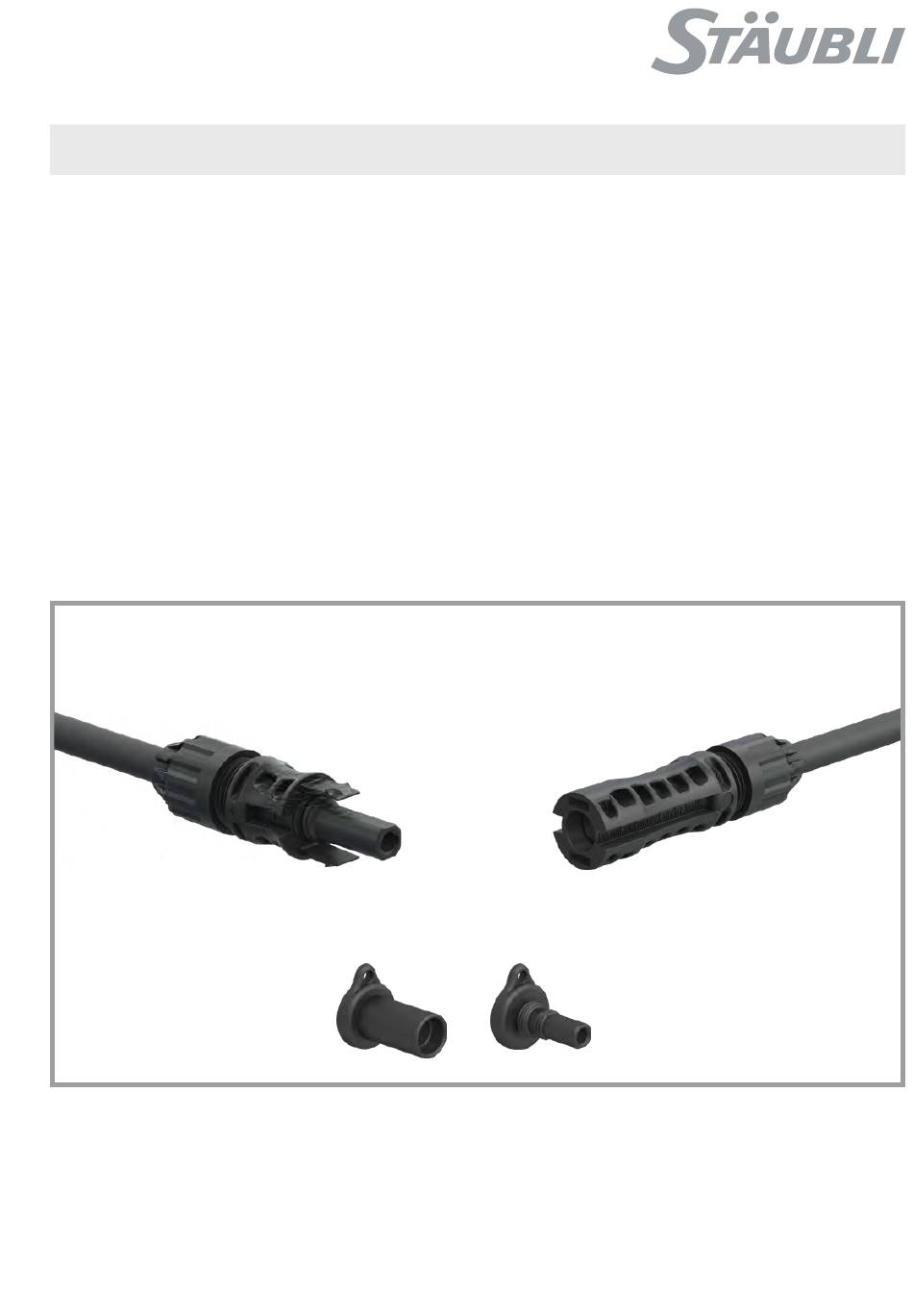

Kupplungsbuchse
Female coupler
PV-KBT4-EVO 2/...

Einleitung

MC4-Evo 2 Steckverbindungen garantieren hohe Schutzgrade
nach IP65 und IP68 nach IEC 60529� Die Verriegelung der Steck-
verbinder nach NEC 2020 durch den Locking type-Verschluss
garantiert höchste Sicherheit gegen unbeabsichtigtes Trennen
und ist nur mit dem Werkzeug PV-MS-PLS/2 entriegelbar�
MA273 (de_en)
Assembly instructions
PV female coupler PV-KBT4-EVO 2-UR
PV male coupler PV-KST4-EVO 2-UR
MC4-Evo 2
Content
Introduction ���������������������������������������������������������������������������������1
Safety Instructions �����������������������������������������������������������������������2
Tools required ������������������������������������������������������������������������������3
Guideline for configuring the connectors ��������������������������������������4
Cable preparation ������������������������������������������������������������������������5
Crimping ��������������������������������������������������������������������������������������6
Assembly check ��������������������������������������������������������������������������7
Mating and disconnecting ������������������������������������������������������������8
Notes on installation ��������������������������������������������������������������������9
Technical Data ���������������������������������������������������������������������������10
Notes ��������������������������������������������������������������������������������11 - 12
Verschlusskappen/Sealing caps
PV-BVK4
PV-SVK4
32.0716
32.0717

Introduction

MC4-Evo 2 connectors guarantee high ingress protection of IP65
and IP68 according to IEC 60529� The locking system of the
connectors in accordance with NEC 2020 guarantees optimum
prevention against unintended disconnection� Unlocking can be
realized only using the tool PV-MS-PLS/2�
Kupplungsstecker
Male coupler
PV-KST4-EVO 2/...
1 / 12
