Introduction
The crimping die assembly (Figure 1) is designed to be crimp HVA-HD600 Ferrules. The crimping die
assemblies are designed to be installed into the modular tool holders listed in Table 1.
Crimping die
assembly
2430407-1
2430408-1
2430409-1
NOTE
Dimensions in this instruction sheet are in millimeters with [inches in brackets]. Figures are for reference only and are not
drawn to scale.
Read these instructions thoroughly before crimping ferrules.
© 2023 TE Connectivity Ltd. family of companies.
All Rights Reserved.
TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Other logos, product, and/or company names may be trademarks of their respective owners.
Crimping Die Assemblies for
HVA-HD600 Ferrules

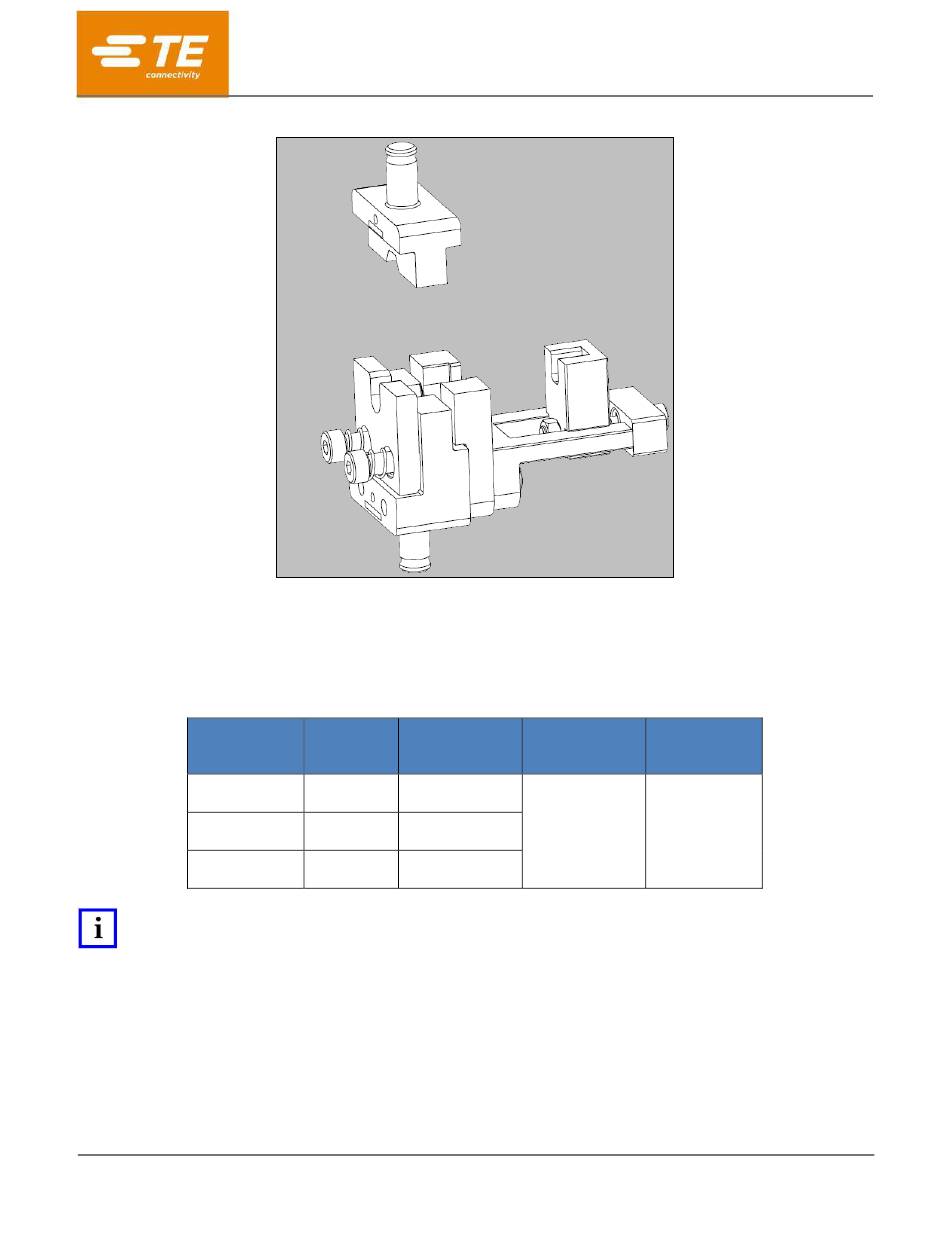

Figure 1: Crimping die assemblies for HVA-HD600 Ferrules
Table 1: Crimping specifications
Wire size
Ferrule
mm²
part number
2401674-3
10
2410952-3
2401674-2
16
2410952-2
2410948-1
25
2410952-1
PRODUCT INFORMATION +1 800 522 6752
Application
Modular
specification
tool holders
2305470-1
114-160613
2326378-1
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.te.com.
Instruction Sheet
408-35359
03 OCT 2023 Rev A
1 of 5
