TE Connectivity HVA630-4P Instruction Sheet

Crimping die and ferrule locator assembly, ferrules

Advertisement

Quick Links

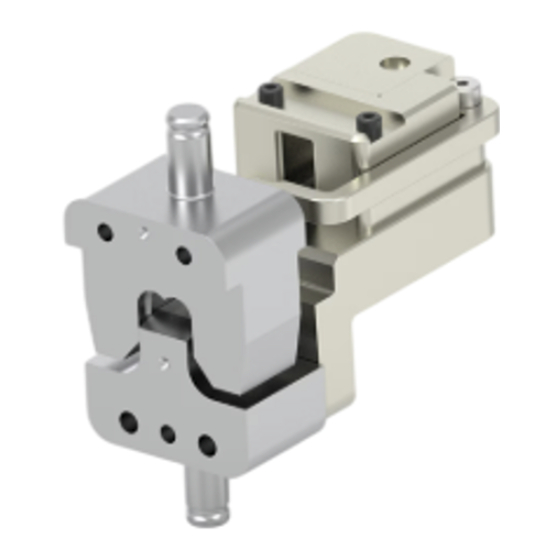

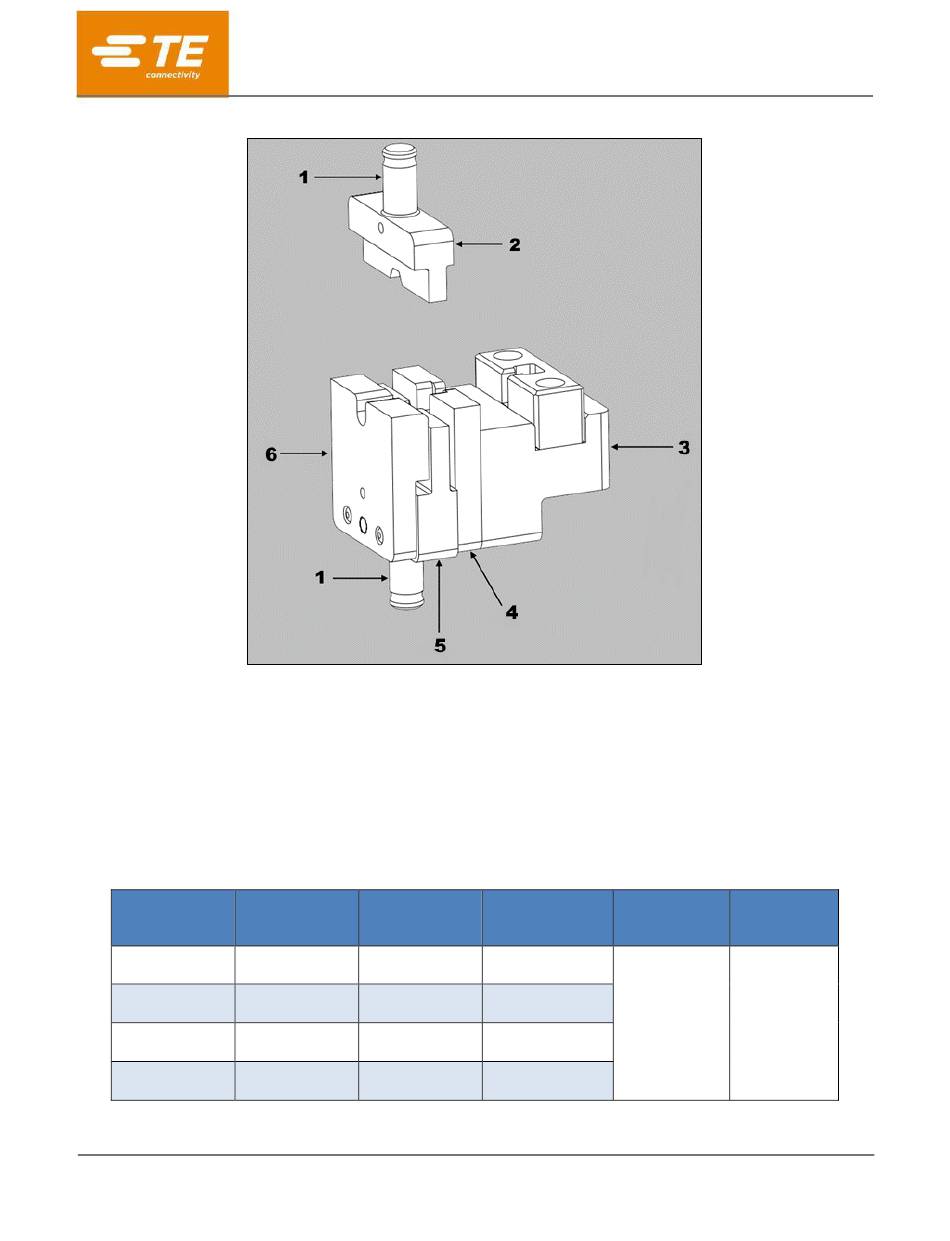

Figure 1: Crimping Die and Ferrule Locator Assembly for HVA630-4P & HVA280-2P Ferrules
1
Introduction
The crimping die assembly (Figure 1) is designed to be installed into the modular tool holders listed in Table 1.
The crimping die assembly is designed to crimp HVA630-4P & HVA 280-2P ferrules.
Crimping die
Wire range
assembly
2410087-1
2466159-1
2484100-1
2484101-1
Read these instructions thoroughly before crimping connectors.
