Proper use guidelines
Cumulative trauma disorders can result from the prolonged use of manually powered hand tools. Hand tools are intended for occasional
use and low-volume applications. A wide selection of powered application equipment is available for extended-use production operations.
The SDE-SA hand tool is a commercial-grade tool. Product crimped with this tool meets the cable barrel crimp height requirement for hand
tools in the appropriate 114 application specification but might not comply with other feature parameters of the specification.

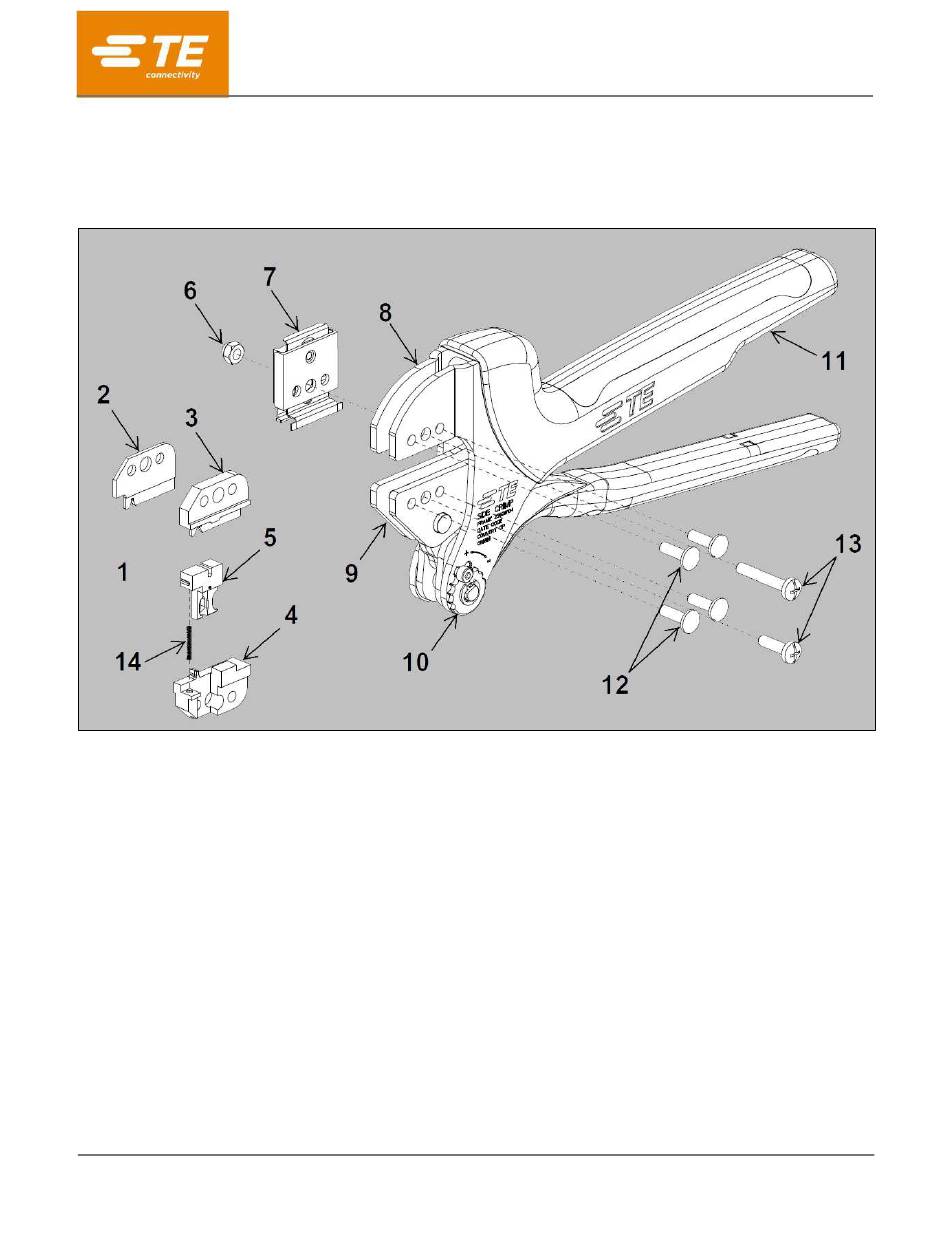

Figure 1: SDE Crimp Commercial Hand Tool Assembly 2439520-1
Die set 2439520-1
1
Wire crimper (upper die)
2
Insulation crimper (upper die)
3
Combination anvil (lower die)
4
Floating shear
5
© 2023 TE Connectivity Ltd. family of companies.
All Rights Reserved.
TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Other logos, product, and/or company names may be trademarks of their respective owners.
SDE Crimp Commercial Hand Tool
Assembly PN 2439520-1
Nut
6
Locator assembly
7
Stationary jaw
8
Moving jaw
9
Ratchet adjustment wheel
10
PRODUCT INFORMATION +1 800 522 6752
408-35338
Handle
11
Die-retaining screws (2)
12
Die-retaining pins (4)
13
Shear return spring
14
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.te.com.
Instruction Sheet
04 OCT 2023 Rev A
1 of 8
Advertisement
Related Manuals for TE Connectivity 2439520-1
Summary of Contents for TE Connectivity 2439520-1
- Page 1 1 of 8 For latest revision and Regional Customer Service, All Rights Reserved. visit our website at www.te.com. TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Other logos, product, and/or company names may be trademarks of their respective owners.
- Page 2 408-35338 Introduction SDE Crimp Commercial Hand Tool Assembly 2439520-1 for the PicoMQS contact is the tool and die set shown in Figure 1. The tool consists of the SDE Crimp Frame Assembly 2362810-1 (instruction sheet 408-35143) and the die assembly listed in Figure 1. This tool is used to crimp the terminal part numbers listed in Table 1.
- Page 3 408-35338 Installing the die set and locator assembly. Open the tool handles. Remove the two die-retaining screws from the tool jaws (see Figure 1). Assemble the floating shear and shear return spring to the combination anvil. Insert the assembled combination anvil and floating shear in the moving jaw of the tool frame with the chamfered side facing outward.
- Page 4 408-35338 Crimping NOTE The tool is provided with a crimp adjustment feature. Initially, the crimp height should be verified as specified in Figure 5 Refer to section 6, Inspecting the crimp height, and section 7, Adjusting the ratchet, to verify crimp height before using the tool. Select a wire of the correct size and insulation diameter for the terminal (see Table 1).
- Page 5 408-35338 Figure 3: Crimping Spring loaded locator blade Wire conductor position Wire insulation position Close the handles of the tool until the spring-loaded locator blade is touching the contact. (See Figure Insert the wire into the crimp barrel of the contact until it butts against the spring-loaded locator blade. While holding the wire against the radius in the floating shear, fully cycle the tool until the ratchet releases and allows the handle to open.
- Page 6 Crimp height inspection is performed using a micrometer with a modified anvil, commonly referred to as a crimp-height comparator. TE Connectivity does not manufacture or market crimp height comparators. Detailed information on obtaining and using crimp-height comparators can be found in instruction sheet 408-7424.
- Page 7 408-35338 Adjusting the ratchet The ratchet is preset prior to shipment, but it is important to verify the crimp height using a micrometer or caliper. Use and wear can cause the tool to go out of adjustment. Inspect the crimp height and adjust the ratchet, if necessary, on a regular basis.
-
Page 8: Maintenance And Inspection
408-35338 Maintenance and inspection Maintenance Remove dust, moisture, and other contaminants with a clean, soft brush or soft, lint-free cloth. Do not use objects that could damage the dies or tool. When the tool is not in use, keep the handles closed to prevent objects from becoming lodged in the dies.
