PROPER USE GUIDELINES
Cumulative trauma disorders can result from the prolonged use of manually powered hand tools. Hand tools
are intended for occasional use and low-volume applications. A wide selection of powered application
equipment is available for extended-use production operations.
The Commercial Hand Crimping Tool is a commercial-grade tool, and is designed primarily for field installation,
repair, maintenance work, or prototyping in industrial, commercial, or institutional applications. Product crimped
with this tool meets the crimp height requirement for hand tools in the appropriate Application Specification
(114-series), but may not comply with other feature parameters of the specification.
TE Connectivity offers a variety of tools to satisfy your performance requirements. For additional information,
contact Product Information at 800-522-6752.
NOTE
All numerical values are in metric units [with U.S. customary units in brackets]. Dimensions are in millimeters [and inches].
Unless otherwise specified, dimensions have a tolerance of ±0.13 mm [±.005 in.] and angles have a tolerance of ±2°. Figures
and illustrations are for reference only and are not drawn to scale.
© 2021 TE Connectivity Ltd. family of companies
All Rights Reserved
TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Other logos, product, and/or company names may be trademarks of their respective owners.
Commercial Hand Crimping Tool
Frame Assembly 2362810-1

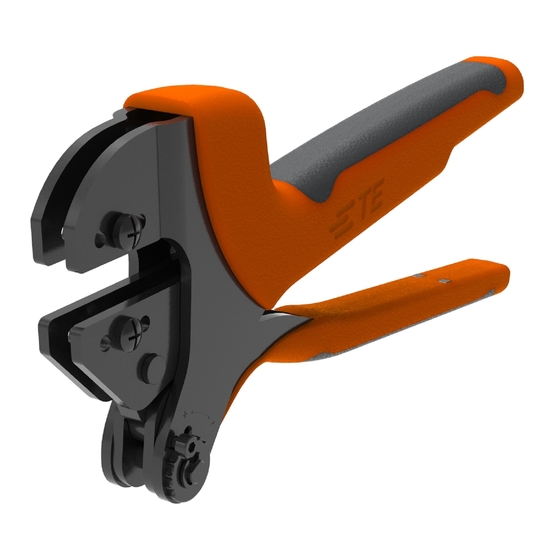

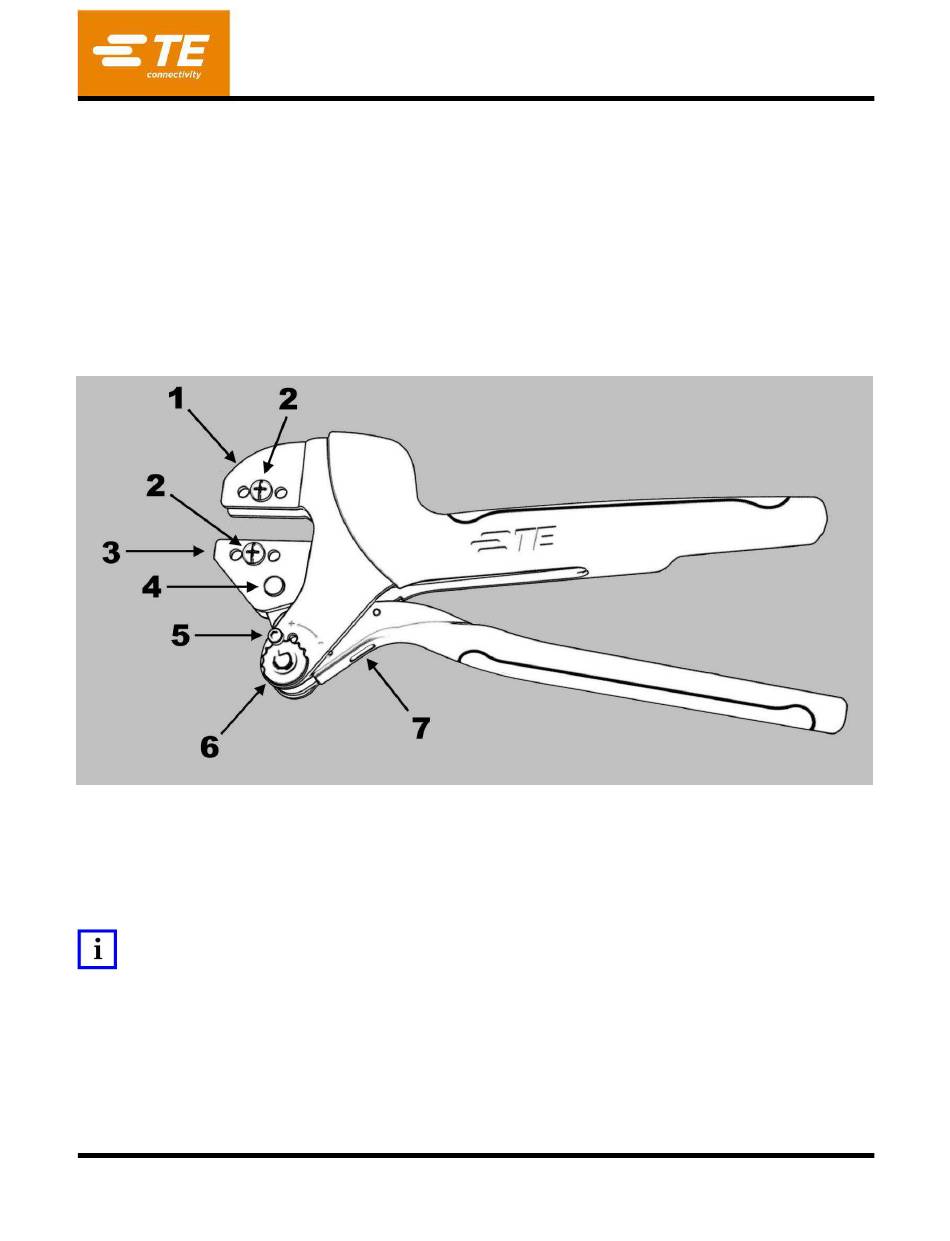

Figure 1: Commercial hand crimping tool
Stationary jaw
1
Die retention screws
2
3
Movable jaw
Pivot pin
4
TOOLING ASSISTANCE CENTER 1-800-722-1111
PRODUCT INFORMATION 1-800-522-6752
Ratchet adjustment screw
5
Ratchet adjustment wheel
6
7
Emergency ratchet release
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.te.com.
Instruction Sheet
408-35143
Rev A
24 FEB 2021
1 of 7
Advertisement
Table of Contents
Related Manuals for TE Connectivity 2362810-1
Summary of Contents for TE Connectivity 2362810-1
- Page 1 For latest revision and Regional Customer Service, All Rights Reserved PRODUCT INFORMATION 1-800-522-6752 visit our website at www.te.com. TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Other logos, product, and/or company names may be trademarks of their respective owners.
- Page 2 408-35143 1. INTRODUCTION This instruction sheet provides application and maintenance procedures for the Commercial Hand Crimping Tool Frame Assembly 2362810-1, shown in Figure 1. The tool is designed to accept interchangeable die assemblies for crimping various types of products. NOTE In most cases, the tool frame assembly is provided with a specific set of dies and is considered a component part of a crimping assembly.
- Page 3 408-35143 3. DIE INSTALLATION AND REMOVAL Select a die assembly, remove the die retention screws from the tool jaws, and proceed as follows: 3.1. Shouldered dies 1. Place the upper die in the stationary jaw of the tool frame (Figure 2). 2.
- Page 4 408-35143 3.2. Pinned dies 1. Install the wire and insulation anvil dies with the chamfers facing the front of the tool and the die markings facing outward into the movable jaw of the tool frame (Figure 3). 2. Insert the die retaining pins and the short die retention screw. Do not tighten the screw completely. 3.
- Page 5 408-35143 3.3. Flip-style locator 1. Make sure the die retention pins are installed and the die retention screw is secured (Figure 4). 2. Position the flip locator over the screw and locate it on the protruding die retention pins. 3. Install the locking nut and torque it to 56 N-cm. NOTE Each flip-style locator is specific to the die, and its operation is explained in the instruction sheet for that die.
- Page 6 408-35143 4. CRIMP HEIGHT ADJUSTMENT The tool frame features a ratchet mechanism and adjustment wheel with a range of settings. The ratchet mechanism ensures that the tool has completed the cycle. The adjustment wheel controls the amount of handle pressure exerted on the jaws and dies during the crimping procedure. The ratchet is preset prior to shipment, but the crimp height must be verified.
- Page 7 Shop TE link at the top of the page. Call 800-522-6752. Write to: CUSTOMER SERVICE (038-035) TE CONNECTIVITY CORPORATION PO BOX 3608 HARRISBURG PA 17105-3608 For customer repair services, call 800-522-6752. 7. REVISION SUMMARY Initial release...
