TE Connectivity HVA280-2P Assembly Instructions

Crimping die and ferrule locator

Advertisement

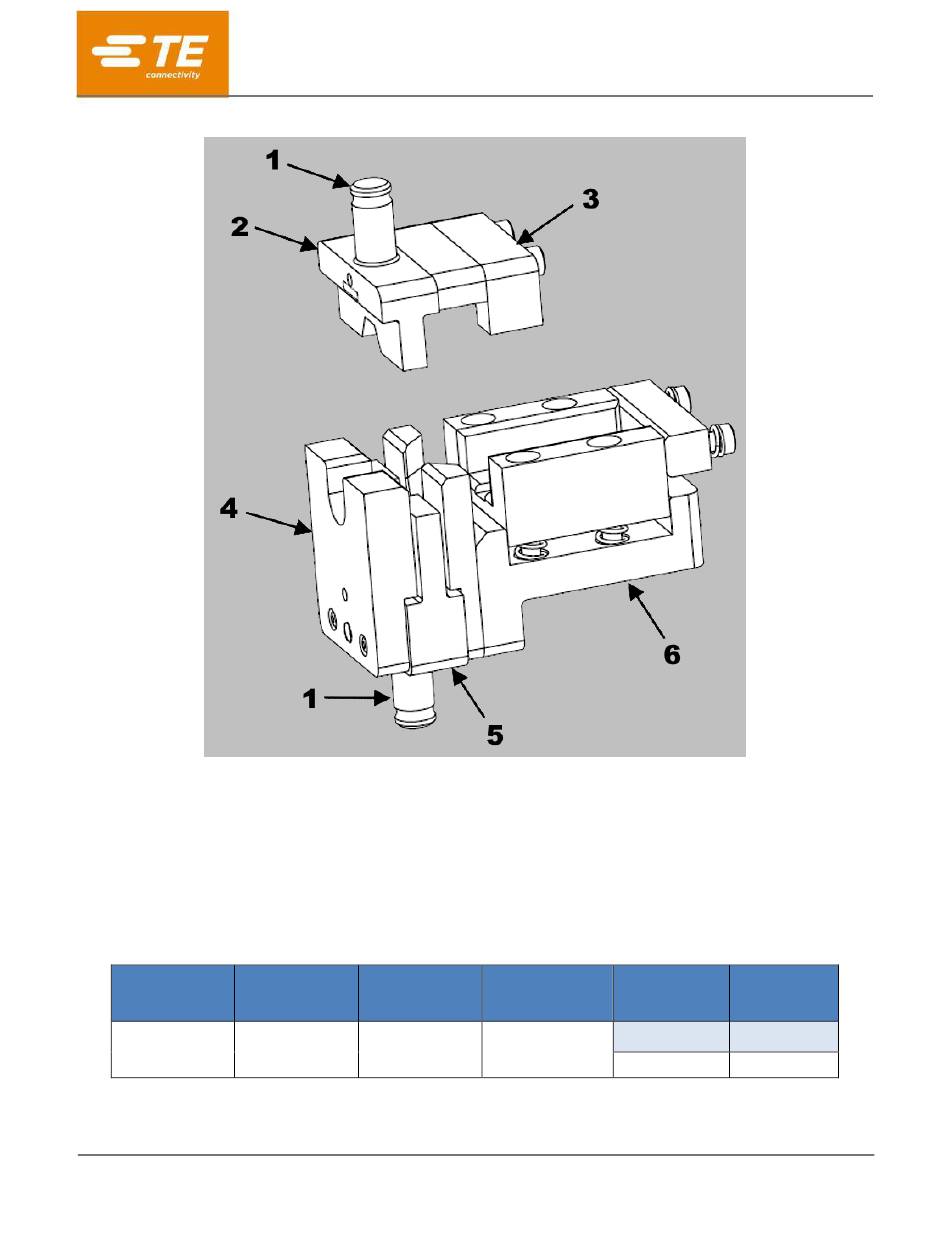

Figure 1: Crimping die and ferrule locator assembly for HVA280-2P ferrules

1. INTRODUCTION

The crimping die assembly (Figure 1) is designed to be installed into the modular tool holders listed in Table 1.
The crimping die assembly is designed to crimp HVA280-2P ferrules.
Crimping die
Wire range
assembly
2385674-1
2x4+2x5 mm²
