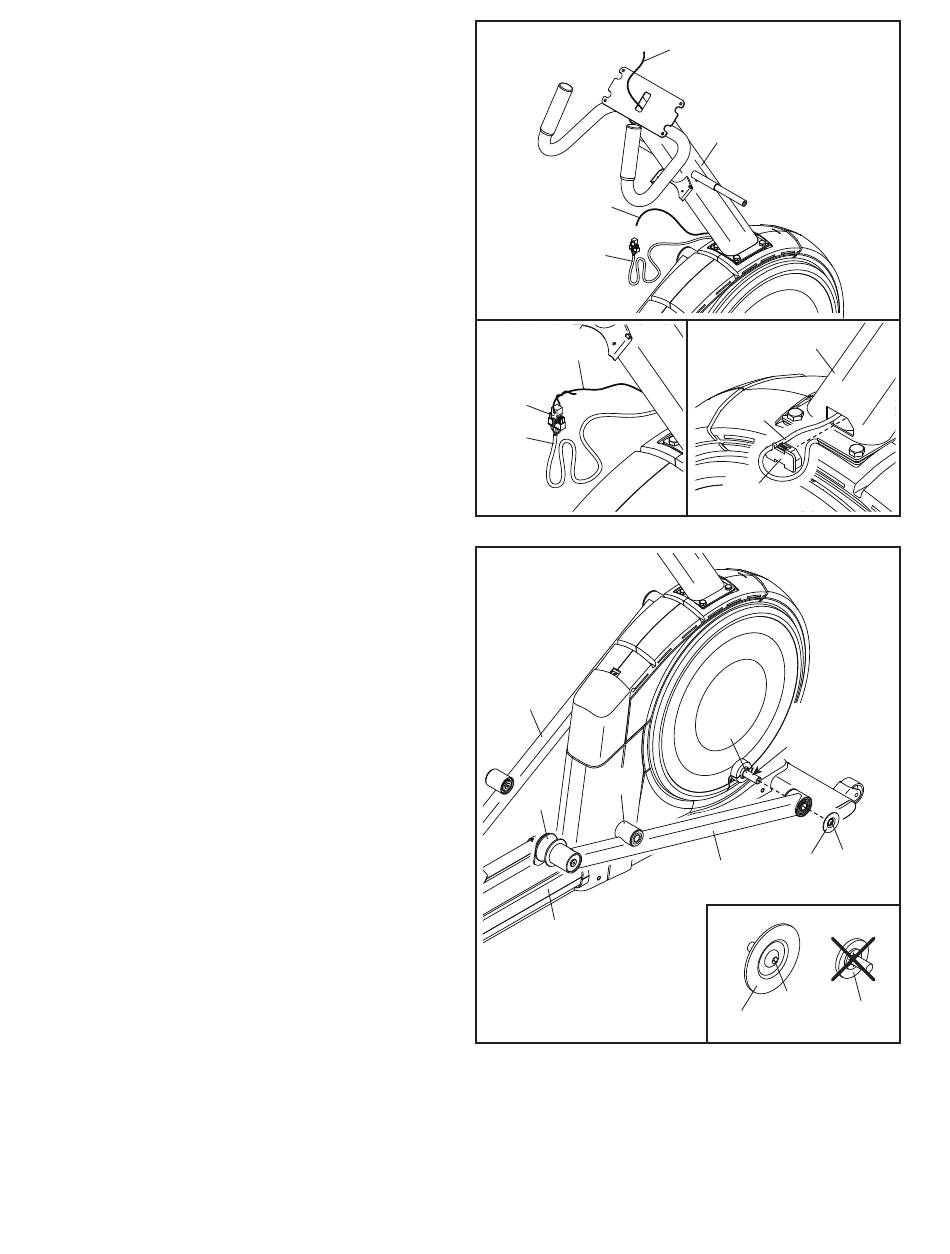

5. Locate the wire tie (C) in the Upright (4).
See the left inset drawing. Tie the lower end of
the wire tie (C) to the wire pull (D) on the Main
Wire (110).
Then, pull the upper end of the wire tie (C)
until the Main Wire (110) is routed through the
Upright (4).
See the right inset drawing. Route the Main
Wire (110) through the notch in the Grommet
(99) as shown, and then press the Grommet into
the Upright (4).
6. Using a plastic bag to keep your fingers clean,
apply a thin coat of the included grease to the
axle on the right Crank Arm (20).
Next, identify the Right Roller Arm (59) and
orient it so the welded tube (A) is on top and
the Roller (51) is facing the elliptical. Slide the
Right Roller Arm onto the axle on the right Crank
Arm (20), and set the Roller on the Track (16).
Attach the Right Roller Arm (59) with an
M8 x 20mm Screw (94) and a Large Crank
Cover (77). Note: The Screw is preattached to
the Large Crank Cover. IMPORTANT: Do not
use the Small Retainer (55) for this step.
Repeat this step with the Left Roller Arm (45)
on the left side of the elliptical.
