1.2

Product Views

8305 - Right Side
RESET Button
RJ45 Ethernet Jack
RJ45 Ethernet Jack Light
SIP Light (Blue)
MCAST Light (Blue)
INPUT Light (Blue)
UG-8305-030524

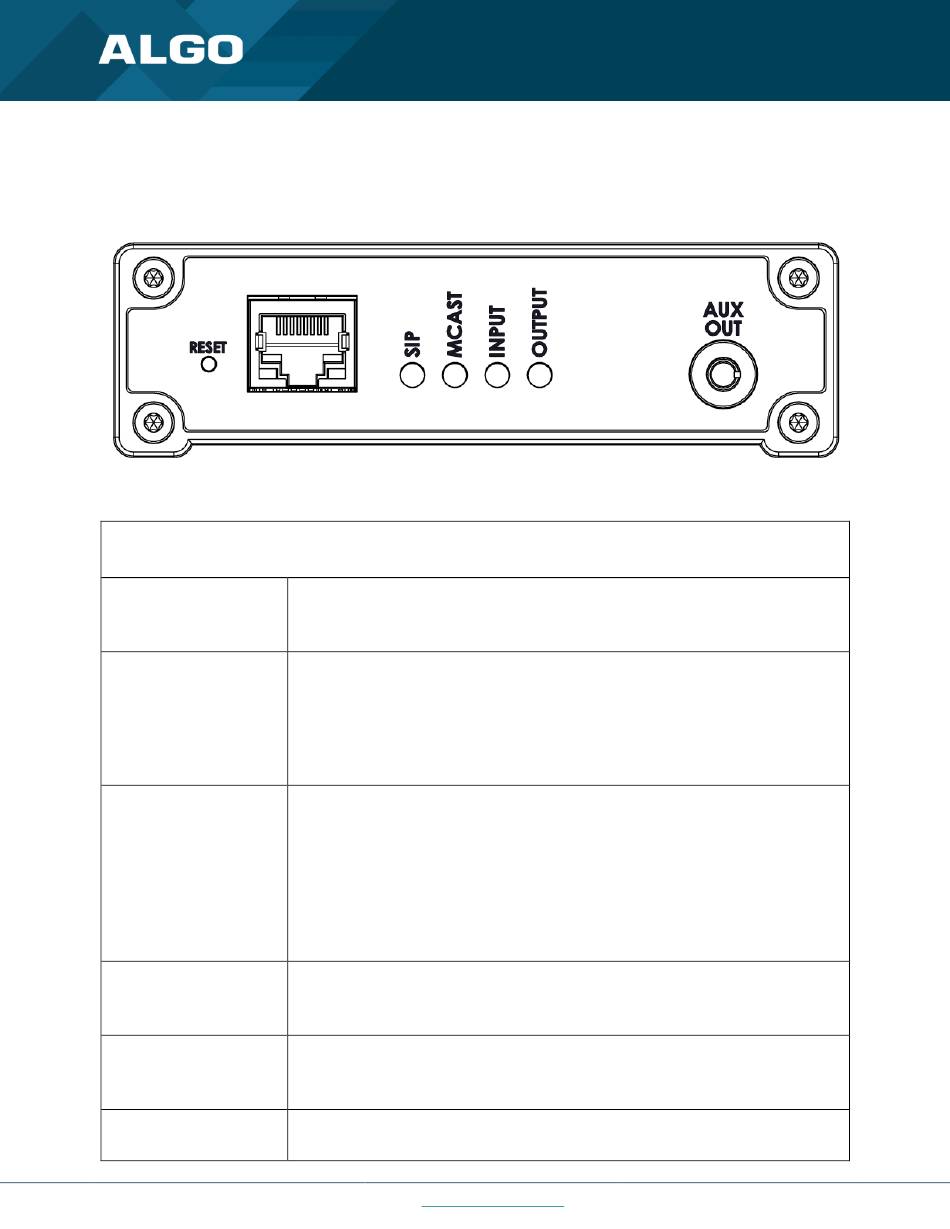

Figure 1: 8305 Multi-Interface IP Paging Adapter front faceplate.
A recessed reset button. This button is used to reset the device or play the device's IP
address during setup.
For network connection. A cable run from the switch can be terminated to a modular
jack with a connection by patch cord or terminated with an RJ45 plug.
PoE (Power over Ethernet) must be 48 V 350 mA IEEE 802.3af compliant, whether
provided by the network switch or injector.
There are two lights on the Ethernet jack:
•
Amber: Turns on immediately after the Ethernet cable is first connected
indicating that PoE power has been successfully applied. Once the device
connects to the network, the light will turn off.
•
Green: Turns on when Ethernet is working after a 100Mbps link has been
established. Flickers to indicate activity on the port.
A steady light will appear when a SIP extension is registered. The light will blink when
the device is engaged in a SIP call.
A steady light will appear when the 8305 receives multicast audio as a Receiver. The
light will blink when the 8305 sends multicast audio as a Transmitter.
Not currently used on this device.
