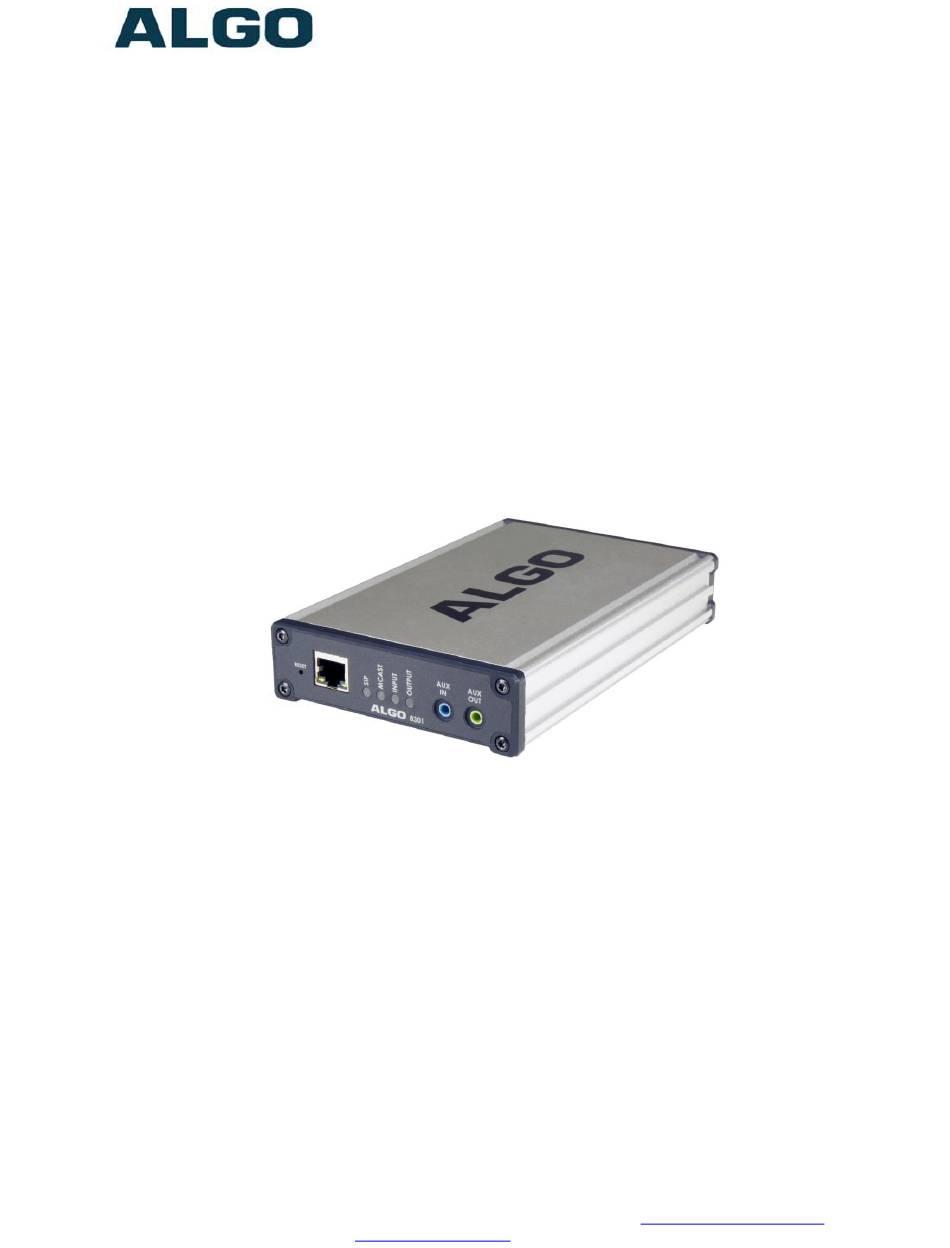

8301 Paging Adapter & Scheduler
Installation & Configuration
Document 90-00070
2017-11-14
Page 1
FW Version 1.5
Order Codes
8301
Paging Adapter & Scheduler
Algo Communication Products Ltd
4500 Beedie St Burnaby BC Canada V5J 5L2
www.algosolutions.com
8301 Paging Adapter & Scheduler (FW 1.5)
support@algosolutions.com
(604) 454-3792
Advertisement
Table of Contents
Related Manuals for Algo 8301-IC
Summary of Contents for Algo 8301-IC
- Page 1 8301 Paging Adapter & Scheduler (FW 1.5) 8301 Paging Adapter & Scheduler FW Version 1.5 Installation & Configuration Order Codes 8301 Paging Adapter & Scheduler Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2017-11-14 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 1 www.algosolutions.com...
-
Page 2: Table Of Contents
WEB INTERFACE ........................... 13 SIP PAGING: ONE ADAPTER ......................... 14 SIP PAGING: MULTIPLE ALGO SIP ENDPOINTS (USING MULTICAST) ............. 15 SIP PAGING: MULTIPLE ALGO SIP ENDPOINTS (USING INDIVIDUAL SIP EXTENSIONS) ......16 BACKGROUND MUSIC STREAMING ...................... 16 MULTICAST PAGE ZONES ........................17 POLYCOM GROUP PAGING ....................... - Page 3 ........................40 NTERVAL ETWEEN ONES ........................40 AXIMUM URATION ........................40 UTBOUND IMIT ..........................41 INGBACK ........................41 AXIMUM URATION Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2017-11-14 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 3 www.algosolutions.com...
- Page 4 ADVANCED SETTINGS TAB – PROVISIONING ..................57 MD5 C ..........................58 HECKSUM .................... 58 ENERATING A GENERIC CONFIGURATION FILE Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2017-11-14 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 4 www.algosolutions.com...
- Page 5 ONFIGURATION TO EFAULTS ..........................70 EBOOT THE EVICE ............................71 ETHOD ..........................71 IRMWARE MAGE MD5 C ..........................71 HECKSUM Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2017-11-14 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 5 www.algosolutions.com...
- Page 6 8301 Paging Adapter & Scheduler (FW 1.5) SYSTEM – SYSTEM LOG ........................71 SPECIFICATIONS ........................... 72 FCC COMPLIANCE STATEMENT ......................74 Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2017-11-14 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 6...
- Page 7 / transient. Algo recommends that this product be installed by a qualified electrician. If you are unable to understand the English language safety information then please contact Algo by email for assistance before attempting an installation support@algosolutions.com.
- Page 8 Algo empfiehlt das Produkt von einem qualifizierten Elektriker installieren zu lassenv. Sollten Sie die englischen Sicherheitsinformationen nicht verstehen, kontaktieren Sie bitte Algo per Email bevor Sie mit der Installation beginnen, um Unterstützung zu erhalten. Algo kann unter der folgenden E- Mail-Adresse erreicht werden: support@algosolutions.com.
-
Page 9: Important Safety Information
DRY INDOOR LOCATION ONLY The 8301 Paging Adapter & Scheduler is intended for dry indoor locations only. For outdoor locations Algo offers weatherproof speakers and strobe lights. CAT5 or CAT6 connection wiring to an IEEE 802.3af compliant network PoE switch must not leave the building perimeter without adequate lightning protection. -
Page 10: About The Algo 8301 Paging Adapter & Scheduler
1GB of memory is available in the device to store WAV files, which can be played via the 8301 Line Out and, if desired, as a multicast to other Algo speakers, paging adapters and strobes. Dual SIP extensions provide both voice paging and notification (ring) capability. -
Page 11: Typical Application
For amplifiers connected to a FXS port or ATA through a “telephone answering device” the 8301 will replace the answering device and eliminate the need for a FXS port or ATA. Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2017-11-14 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com... -
Page 12: Getting Started - Quick Install & Test
IP address over the analog outputs (eg. headset can be connected to the green output port). The IP address may also be discovered by downloading the Algo locator tool to find Algo devices on your network: www.algosolutions.com/locator 3. Connect the adapter LINE OUT to an amplifier using the mini-XLR connector or pluggable terminal block. -
Page 13: Installation
(male pins) or pluggable terminal block. The 8301 provides a dry audio output and dry contact closure. An optional XLR output audio cable (Algo 2504) may be ordered for audio amplifiers using standard XLR input connectors. Web Interface The 8301 Paging Adapter &... -
Page 14: Sip Paging: One Adapter
The best voice paging quality and intelligibility will be obtained using the G.722 wideband audio codec. Most current IP telephones support G.722 which is sometimes referred to as “HD” voice or audio. Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2017-11-14 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com... -
Page 15: Sip Paging: Multiple Algo Sip Endpoints (Using Multicast)
Choose multicast mode “Master/Sender” and pick “All Call” for the Master single zone. To enable multicast monitoring in the Algo SIP endpoint Slaves, go to the web interface for each endpoint and navigate to the Basic Settings > Multicast tab. This time though, choose multicast mode “Slave/Receiver”. -
Page 16: Sip Paging: Multiple Algo Sip Endpoints (Using Individual Sip Extensions)
An Algo SIP endpoint configured as a SIP Multicast Slave will give its highest priority to a page using its SIP extension. Communication Servers with the capability of dialling many SIP extensions simultaneously for paging may be able to create zones by calling “paging groups”... -
Page 17: Multicast Page Zones
DTMF page zone (e.g. 1, 2, etc.) on the keypad. Note: DTMF codes for zones 10 and higher start with an “*”. Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2017-11-14 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com... -
Page 18: Polycom Tm Group Paging
The 8301 Paging Adapter & Scheduler may be accessed remotely via SIP and may generate a multicast page within the LAN sending voice page to both Algo paging endpoints and Polycom telephones. Audio delay may be added to the 8301 Paging Adapter & Scheduler to synchronize with voice page over the Polycom telephone speakers. -
Page 19: Sip Ring Event
Audio WAV files can be stored in adaptor memory and played over a speaker in response to an event such as a ring, relay input or automated schedule, and also multicast to other Algo SIP endpoints on the network. See Additional Features > Emergency Alerts and Additional Features >... -
Page 20: Network Connection
There are two lights on the Ethernet jack: Green light: On when Ethernet is working, flickers off to indicate activity on the port. Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2017-11-14 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com... -
Page 21: Aux In (Front)
Balanced and isolated wire pair input parallel to XLR-MINI LINE IN (polarity independent). Terminal Block Line Out Balanced and isolated wire pair output parallel to XLR-MINI LINE OUT (polarity independent). Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2017-11-14 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 21... -
Page 22: Terminal Block Relay In
(it does not detect a physical connection to the audio jack). Output Output light is on when analog output is enabled. Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2017-11-14 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 22 www.algosolutions.com... -
Page 23: Reset
Do not press the reset button until the SIP LED begins flashing. A reset will set all configuration options to factory default including the password. Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2017-11-14 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com... -
Page 24: Web Interface Login
8301 Paging Adapter & Scheduler (FW 1.5) Web Interface Login The web interface requires a password which is "algo" by default. This password can be changed using the Admin tab after logging in the first time. Status The device’s Status page will be available before and after log on. -
Page 25: Basic Settings Tab - Sip
Note: Any time changes are made to settings in the Web Interface the "Save" key must be clicked to save the changes SIP Domain (Proxy Server) SIP Server Name or IP Address Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2017-11-14 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 25 www.algosolutions.com... -
Page 26: Ring/Alert Mode
Ring and/or Page parameter. Authentication Password SIP password provided by the system administrator for the SIP account used for the associated Ring and/or Page parameter. Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2017-11-14 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 26 www.algosolutions.com... -
Page 27: Basic Settings Tab - Features
Master’s selected ring tone. Note: This is the “Default” tone that will be played if selected for Multicast, Additional Ring Extension settings. Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2017-11-14 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com... -
Page 28: Ring/Alert Volume
The “Default” tone will play the page-notif.wav file. Note: The “Default Page Tone”, in Advanced Multicast, will play the tone set here. Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2017-11-14 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 28 www.algosolutions.com... -
Page 29: G.722 Support
0dBu 10k (0.775 Vrms) 0dBV 10k (1.0 Vrms) -10dBV 10k (0.316 Vrms) 0dBm 600 ohm (0.755 Vrms) -10dBm 600 ohm (0.245 Vrms) Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2017-11-14 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 29... -
Page 30: Multicast Ip Addresses
50000-50008 Make sure that the multicast IP address and port number do not conflict with other services and devices on the same network. Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2017-11-14 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com... -
Page 31: Basic Settings Tab - Multicast (Master Settings)
IP stream when activated in addition to playing the audio. Note: the 8301 cannot be both a multicast Master and Slave simultaneously. Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2017-11-14 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com... -
Page 32: Number Of Zones
Polycom “on premise group paging” protocol and most multicast-enabled phones that use RTP audio packets. Select “Regular” if solely multicasting to Algo SIP endpoints and/or multicast-enabled phones. To multicast page announcements solely to Polycom phones, select “Polycom Group Page” or “Push-to-Talk”. Then, configure the 8301 with “Polycom Zone”... -
Page 33: Master Single Zone
DTMF Selectable Zone mode (or More Page Extensions per zone) and wishing to make the Master unit a member of only certain zones. Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2017-11-14 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com... -
Page 34: Basic Settings Tab - Multicast (Slave Settings)
“expanded” to configure up to 50 zones. The expanded zones have the same behaviour as the basic Slave zones, but are hidden by default to simplify the interface. Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2017-11-14 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com... -
Page 35: Multicast Type - Regular
8301 Paging Adapter & Scheduler (FW 1.5) Multicast Type - Regular Select “Regular” if solely multicasting to Algo SIP endpoint(s) and/or multicast-enabled phone(s) that use RTP audio packets. Slave Zones Select multicast slave zones for the 8301 Paging Adapter & Scheduler to monitor. - Page 36 25 Polycom Groups configured on the Algo device. If an Algo device is used as a Multicast master, a tone does not have to be set as the Algo master will provide its own tone. Polycom Group Tones can be set in Advanced Settings >...
-
Page 37: Additional Features Tab - Input/Output
The input relay to the Algo 8301 Paging Adapter & Scheduler can be prompted by any normally open or normally closed switch. Algo offers the 1202 Call Button or the 1203 Call Switch with supervision. -
Page 38: Audio Always On
Audio Streaming Always On, set Relay Input Mode to “Disabled”, or set Action When Input Triggered to “Play Tone” or “Make SIP Call with Tone”. Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2017-11-14 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com... -
Page 39: Action - Play Tone
Ringback Tone Action – Stream Audio Will play sound from audio input on a local speaker as well as multicast if configured. Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2017-11-14 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 39 www.algosolutions.com... -
Page 40: Action When Tamper Detected (Supervision)
Typically set to ensure that a call will not reach voicemail. This feature can be used to set a limit on how long the speaker will ring before timing out. Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2017-11-14 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com... -
Page 41: Ringback Tone
(iPods/iPhones). “Aux Output” is the front green 3.5 headset with microphone (headsets or PC speakers). “Line Input” is the back terminal block and XLR. Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2017-11-14 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com... -
Page 42: Additional Features Tab - Emergency Alerts
8301 Paging Adapter & Scheduler (FW 1.5) Additional Features Tab – Emergency Alerts Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2017-11-14 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 42 www.algosolutions.com... - Page 43 Note: Some SIP phone systems may not support this feature if they limit the number of extensions that can be registered on a single device. Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2017-11-14 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com...
-
Page 44: Additional Features Tab - More
Multicast Zone Definitions can be found in "Advanced Settings > Advanced Multicast". Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2017-11-14 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 44 www.algosolutions.com... -
Page 45: Additional Features Tab - More Ring Extensions
“Enable” beside the target extension and enter the Extension, Authentication ID, and Authentication password. A unique Ring Tone can be assigned to each extension if desired. Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2017-11-14 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 45 www.algosolutions.com... -
Page 46: Scheduler Tab - Calendar
8301 Paging Adapter & Scheduler (FW 1.5) Scheduler Tab – Calendar The Scheduler can be deployed along with Algo IP speakers, paging adapters and strobes to provide bell scheduling and automated announcements. Once a bell schedule has been configured in the Schedules tab (see below), it can be added to the desired dates on the calendar. -
Page 47: Scheduler Tab - Schedules
Page Zone. The chosen audio file will be playing over the network via multicast to all other Algo network devices (e.g. 8186, 8188, 8180, 8128, 8301, 8373, etc.) that are configured as Slaves on this zone. -
Page 48: Scheduler Tab - Data
Upload and restore a saved Scheduler/Controller data file. Clear All Data Clears all the Scheduler/Controller data, including saved schedules and set calendar dates. Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2017-11-14 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 48 www.algosolutions.com... -
Page 49: Advanced Settings Tab - Network
The standard also provides provisions for a quality of service prioritization scheme commonly known as IEEE 802.1p and defines the Generic Attribute Registration Protocol. Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2017-11-14 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 49 www.algosolutions.com... -
Page 50: Vlan Id
Provides quality of service if the DSCP protocol is supported on your network. Can be specified independently for SIP control packets versus RTP audio packets. Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2017-11-14 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com... -
Page 51: Advanced Settings Tab - Admin
Password Password to log into the 8301 Paging Adapter & Scheduler web interface. You should change the default password algo in order to secure the device on the network. If you have forgotten your password, you will need to perform a reset using the Reset Button in order to restore the password (as well as all other settings) back to the original factory default conditions. -
Page 52: Confirmation
Confirmation Re-enter network admin password Device Name (Hostname) Name to identify the device in the Algo Network Device Locator Tool. Introduction Section on Status Page Allows the introduction text to be hidden from the login screen. Web Interface Session Timeout Set the maximum period of inactivity after which the web interface will log out automatically. -
Page 53: Force Strong Password
Additional SNMP support is anticipated for future, but the 8301 Paging Adapter & Scheduler will respond to a simple status query for automated supervision. Contact Algo technical support for more information. SA-Announce Support Syn-Apps’ SA-Announce paging application converts unicast streams to multicast and delivers them to the target endpoints. -
Page 54: Sa-Announce Server
To use the server provided by the DHCP Option 72, leave the field blank. Local Management Port Enter the local management port. Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2017-11-14 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 54 www.algosolutions.com... -
Page 55: Advanced Settings Tab - Time
This field shows the current time and date as set on the device. If testing the device on a lab network that may not have access to an Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2017-11-14 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com... - Page 56 Note, this time value will be lost at power down, or overwritten if NTP is currently active. Time and date are used only for logging purposes and for the Scheduler. Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2017-11-14 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com...
-
Page 57: Advanced Settings Tab - Provisioning
Static Server. In addition, there are four different ways to download provisioning files from a “Provisioning Server”: TFTP (Trivial File Transfer Protocol), FTP, HTTP, or HTTPS. Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2017-11-14 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com... -
Page 58: Md5 Checksum
4. Click on the System tab and then Maintenance. 5. Click “Backup” to download the current configuration file 6. Save the file settings.txt 7. Rename file settings.txt to algop8301.conf Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2017-11-14 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 58 www.algosolutions.com... -
Page 59: Generating A Specific Configuration File
The MAC address of each 8301 Paging Adapter & Scheduler can be found on the back label of the unit. For more Algo SIP endpoint provisioning information, see: www.algosolutions.com/provision Document 90-00070 Algo Communication Products Ltd... -
Page 60: Advanced Settings Tab - Tones
A zip files containing one or more audio files may also be uploaded. File names must be limited to 32 characters, with no spaces. Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2017-11-14 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com... -
Page 61: Tone Files Included In Memory
WAV file and also the ability to play the WAV file immediately over the speaker for testing. Files may also be deleted or renamed. Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2017-11-14 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com... -
Page 62: Advanced Settings Tab - Advanced Audio
The jitter buffer removes the jitter in arriving network packets by temporarily storing them. This process corrects the inconsistent delays on the network. It is recommended to use the lowest value. Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2017-11-14 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com... -
Page 63: Generate In-Band Dtmf Tones
Enables heavy filtering below 150Hz to reduce mains induced noise (fans). Microphone Noise Filter Enables heavy filtering below 150Hz to reduce mains induced noise (fans). Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2017-11-14 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 63... -
Page 64: Advanced Settings Tab - Advanced Sip
Maximum requested period of time where the 8301 Paging Adapter & Scheduler will re-register with the SIP server. Default setting is 3600 seconds (1 hour). Only change if instructed otherwise. Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2017-11-14 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com... -
Page 65: Keep-Alive Method
Time period between sending monitoring packets to each server. Non-active servers are always polled, and active server may optionally be polled (see below). Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2017-11-14 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com... -
Page 66: Poll Active Server
Reconnect with higher priority server once available, even if backup connection is still fine. Polling Method SIP message used to poll servers to monitor availability. Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2017-11-14 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 66 www.algosolutions.com... -
Page 67: Advanced Settings Tab - Advanced Multicast
Master Output Codec (Master Mode) Audio encoding format used by the master device when sending output to the slaves. Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2017-11-14 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 67 www.algosolutions.com... -
Page 68: Master Output Packetization Time (Master Mode)
Slave device, so it is recommended to set the slave tone to “None”. If a page is received from a non-Algo device that doesn’t send a tone, a tone can be inserted on the Slaves (above) each time they detect page audio starting, allowing them to play a tone. -
Page 69: Polycom Slave Tones
8301 Paging Adapter & Scheduler (FW 1.5) Polycom Slave Tones A tone may be set for any of the 25 Polycom Groups. If using an Algo device as a Multicast master, it is recommended to set the slave tones to “None” to avoid conflicts, as the Algo devices already multicast a tone by default. -
Page 70: System Tab - Maintenance
Restore Configuration to Defaults Resets all 8301 Paging Adapter & Scheduler device settings to factory default values. Reboot the Device Reboots the device. Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2017-11-14 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 70... -
Page 71: Method
Specify whether the firmware files will be downloaded from the local computer or a remote URL. Firmware Image Point to the firmware image provided by Algo MD5 Checksum Point to the checksum file provided by Algo Upgrade 8301 Paging Adapter & Scheduler Firmware 1. - Page 72 Page Mode: Live or cache and release Relay Output: Normally open or normally closed Max rating 30V 50 mA Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2017-11-14 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 72 www.algosolutions.com...
- Page 73 8301 Paging Adapter & Scheduler (FW 1.5) Relay Input: Normally open or normally closed dry contact supervision. Algo 1202 Call Button, Algo 1203 Call Switch, EOL resistor termination Relay Input Current Active Idle Tamper Draw Detection Normally Open >4mA <4mA...
- Page 74 Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2017-11-14 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com...
