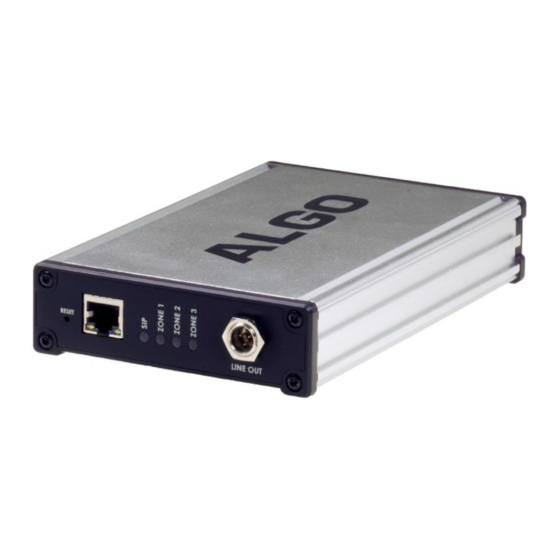

Algo 8373 Installation/Configuration Manual

Zone paging adapter
Hide thumbs Also See for 8373:
Table of Contents

Advertisement

Quick Links

Installation & Configuration
Document 91-00071
2017-11-14

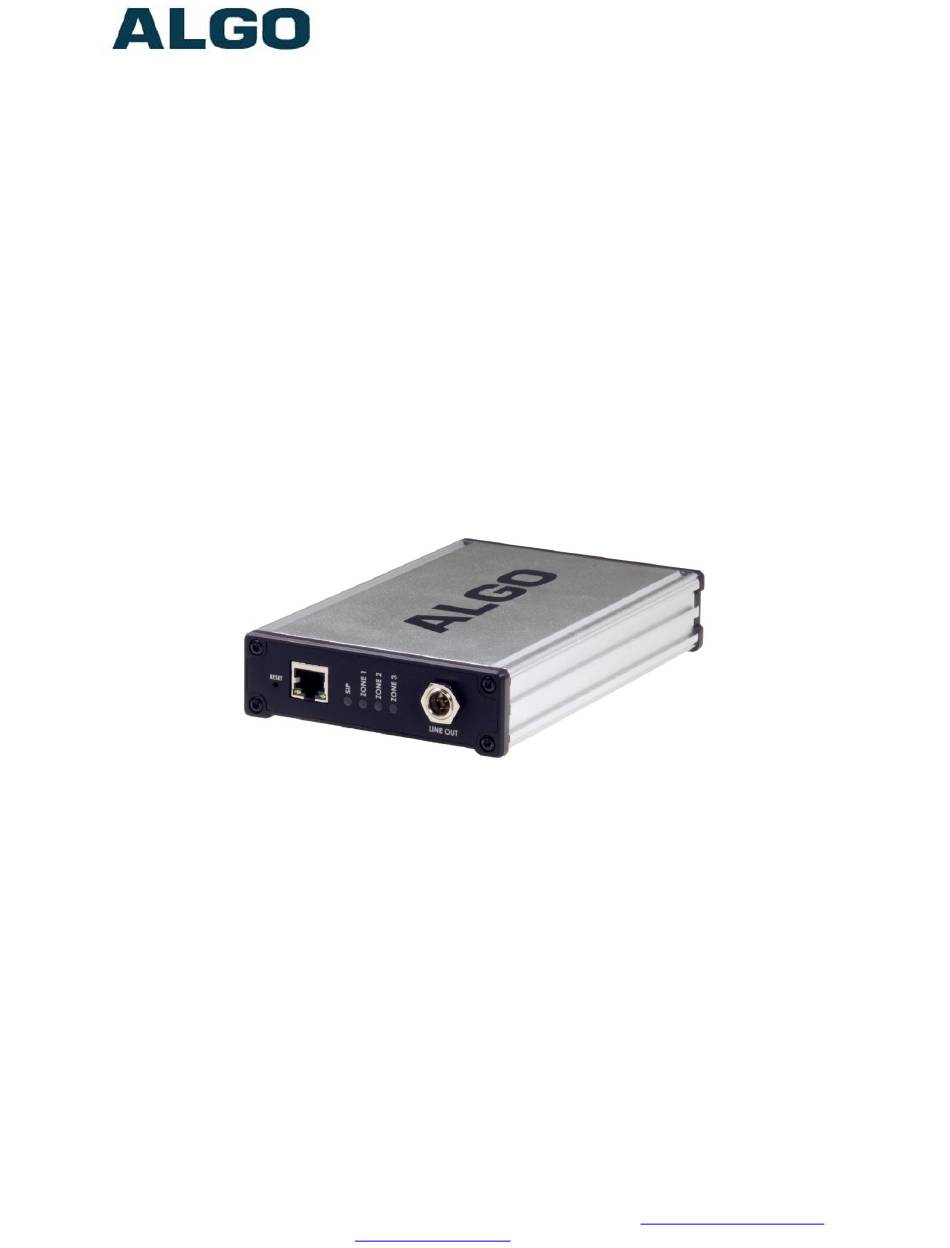

Page 1
8373 Zone Paging Adapter
FW Version 1.5
Order Codes
8373 Zone Paging Adapter
Algo Communication Products Ltd
4500 Beedie St Burnaby BC Canada V5J 5L2
www.algosolutions.com
8373 Zone Paging Adapter (FW 1.5)
(604) 454-3792
support@algosolutions.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8373 and is the answer not in the manual?

Questions and answers

Related Manuals for Algo 8373

Summary of Contents for Algo 8373

  • Page 1 8373 Zone Paging Adapter (FW 1.5) 8373 Zone Paging Adapter FW Version 1.5 Installation & Configuration Order Codes 8373 Zone Paging Adapter Document 91-00071 Algo Communication Products Ltd (604) 454-3792 2017-11-14 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 1 www.algosolutions.com...

  • Page 2: Table Of Contents

    8373 Zone Paging Adapter (FW 1.5) Table of Contents IMPORTANT SAFETY INFORMATION ...................... 8 ABOUT THE ALGO 8373 ZONE PAGING ADAPTER ................... 9 TYPICAL APPLICATION ......................... 10 GETTING STARTED - QUICK INSTALL & TEST ..................11 INSTALLATION ............................. 12 WEB INTERFACE ........................... 12 SIP PAGING: INTRODUCTION .......................
  • Page 3 8373 Zone Paging Adapter (FW 1.5) ............................28 ........................... 28 IMEOUT ............................28 G.722 S ..........................28 UPPORT (AGC) ......................28 UTOMATIC ONTROL ............................ 29 UTPUT EVEL BASIC SETTINGS TAB – CHANNELS ....................... 30 ..........................31 UMBER OF ONES MULTICAST ............................32 IP A ........................
  • Page 4 8373 Zone Paging Adapter (FW 1.5) ............................43 NTP T 1/2/3/4......................... 43 ERVERS NTP T ........................43 ERVER OURCE ..........................43 EVICE ADVANCED SETTINGS TAB – PROVISIONING ..................45 MD5 C ..........................46 HECKSUM .................... 46 ENERATING A GENERIC CONFIGURATION FILE .....................
  • Page 5 8373 Zone Paging Adapter (FW 1.5) ..........................58 EBOOT THE EVICE ............................59 ETHOD ..........................59 IRMWARE MAGE MD5 C ..........................59 HECKSUM SYSTEM – SYSTEM LOG ........................59 SPECIFICATIONS ........................... 60 FCC COMPLIANCE STATEMENT ......................62 Document 91-00071 Algo Communication Products Ltd...
  • Page 6 / transient. Algo recommends that this product be installed by a qualified electrician. If you are unable to understand the English language safety information then please contact Algo by email for assistance before attempting an installation support@algosolutions.com.
  • Page 7 Algo empfiehlt das Produkt von einem qualifizierten Elektriker installieren zu lassenv. Sollten Sie die englischen Sicherheitsinformationen nicht verstehen, kontaktieren Sie bitte Algo per Email bevor Sie mit der Installation beginnen, um Unterstützung zu erhalten. Algo kann unter der folgenden E- Mail-Adresse erreicht werden: support@algosolutions.com.

  • Page 8: Important Safety Information

    Paging Adapter should be routinely tested. SNMP supervision is recommended for assurance of proper operation. DRY INDOOR LOCATION ONLY The 8373 Zone Paging Adapter is intended for dry indoor locations only. For outdoor locations Algo offers weatherproof speakers and strobe lights.

  • Page 9: About The Algo 8373 Zone Paging Adapter

    One amplified audio stream can then be fed back into the 8373 and sent to one or more of the three speaker Channels at a time. It is important to note that the 8373 doesn’t allow different audio streams to play on two...

  • Page 10: Typical Application

    3 speaker channels, creating a “zoned” paging system. The Line Output of the 8373 is connected directly to the dry audio input on the amplifier with an input impedance between 600 Ohm and 10 kOhm.

  • Page 11: Getting Started - Quick Install & Test

    7. Make a call to the adapter by dialling the page SIP extension of the adapter from a telephone. A prompt tone will be heard when the 8373 answers – press “1” to call zone 1, which will activate the relay for Channel 1 based on the default settings.

  • Page 12: Installation

    After boot up the blue lights on the front will turn off and the adapter will have obtained an IP address. If there is no DHCP server the 8373 Zone Paging Adapter will default to the static IP address 192.168.1.111.

  • Page 13: Sip Paging: Introduction

    8373 Zone Paging Adapter (FW 1.5) SIP Paging: Introduction The 8373 has only one audio output, and therefore can only support a single unique audio stream at any given time. This is ideal when connecting to a single zone amplifier that also only supports a single audio path at a time.

  • Page 14: Sip Paging: Single Sip Extension

    8373 Zone Paging Adapter (FW 1.5) SIP Paging: Single SIP Extension Up to 50 zones can be assigned on each of the three 8373 Channels. The 8373 will auto-answer an inbound call to the SIP extension, e.g. 1000, and a brief tone will prompt the caller to dial a DTMF key to select the desired zone.

  • Page 15: Sip Paging: Multiple Sip Extensions

    8373 Zone Paging Adapter (FW 1.5) SIP Paging: Multiple SIP Extensions Multiple SIP extensions can also be registered on the 8373, one for each zone in use, using the tab: Advanced Setting  More Page Extensions. This allows the advantage of dialing directly to a zone without needing to enter DMTF, allowing the use of speed-dial keys.

  • Page 16: Sip Paging: 9 Zones Using One Amplifier

    SIP Paging: 9 Zones using One Amplifier To create more than 3 zones, additional 8373’s may be connected to the single amplifier via the AMP IN on the back of each of the 8373’s. The first 8373 should be assigned as a Multicast Master, and the remainder as Slaves.
  • Page 17 Any combination of Algo SIP endpoints can be integrated using multicast, or kept independent by registering additional SIP extensions on each. For instance, in addition to a single 8373 driving an amplifier and creating 3 speaker zones, any number of 8188 Ceiling Speakers can also be added as Multicast Slaves, and automatically play the same audio as was sent to the amplifier &...

  • Page 18: Sip Paging: Using Multicast

    Thus, the slave adapters do not require SIP extensions and do not need to register with the SIP Communication Server. Each of the 3 relay channels on the 8373 can be assigned to any zone, or group of zones, as described in the other examples above, and likewise, each of the other Algo SIP endpoints can be assigned to one or more zones.

  • Page 19: Multicast Page Zones

    8373 Zone Paging Adapter (FW 1.5) Multicast Page Zones The 8373 Zone Paging Adapter supports nine “basic” multicast zones. These zones are defined by the multicast IP addresses. Somewhat arbitrarily, these zones are defined below but may be used in other ways. The important consideration is that there is a priority hierarchy –...

  • Page 20: Polycom Tm Group Paging

    The 8373 Zone Paging Adapter has been designed to support Polycom Group Paging. The 8373 Zone Paging Adapter can be added to a Polycom group page so that voice paging is heard over Polycom telephone speakers and overhead paging simultaneously.

  • Page 21: Wiring Connections

    8373 Zone Paging Adapter (FW 1.5) Wiring Connections 8373 Zone Paging Adapter: Front View 8373 Zone Paging Adapter: Back View Network Connection (Front) Connect RJ45 jack from PoE network switch or non-PoE network and 48V 350 mA IEEE 802.3af compliant power injector.

  • Page 22: Line Out Xlr-Mini (Front)

    Wire pair output parallel to XLR-MINI LINE OUT that may be used for connecting to an external amplifier. Terminal Block Relay Out (Back) By default these terminals provide a contact closure when the 8373 Zone Paging Adapter is active. Channel 1/2/3 (Back) The relays will switch audio from the amplifier to the appropriate output channels.

  • Page 23: Blue Led Indicators

    Reset A recessed reset button (RST) next to the Ethernet Jack can only be used to reset the 8373 Zone Paging Adapter at time of power up. To reset, reboot or power cycle the 8373 Zone Paging Adapter. Wait until the SIP LED flashes and then press and hold the reset button until the SIP LED begins a double flash pattern.

  • Page 24: Web Interface Login

    Status The device’s Status page will be available before and after log on. The section can be used to check 8373’s SIP Registration, Call Status, Multicast Mode (Slave/Master), Relay Status, Proxy Status, and general MAC, IP, Netmask, Date/Time, and Timezone information.

  • Page 25: Basic Settings Tab - Sip

    SIP Server Name or IP Address Page Extension This is the SIP extension for the 8373 Zone Paging Adapter. The Page Extension uses "DTMF Selectable Zone" mode. After the Page call is answered, use DTMF to enter a zone number in order to activate the desired relay(s).

  • Page 26: Authentication Id

    8373 Zone Paging Adapter (FW 1.5) Authentication ID May also be called Username for some SIP servers and in some cases may be the same as the SIP extension. Authentication Password SIP password provided by the system administrator for the SIP account.

  • Page 27: Basic Settings Tab - Features

    8373 Zone Paging Adapter (FW 1.5) Basic Settings Tab – Features Test Tone Select WAV file to play over the associated speaker. The WAV file may be played immediately to an associated speaker from the web interface for test purposes using the Play, Loop, and Stop buttons.

  • Page 28: Page Speaker Volume

    8373 Zone Paging Adapter (FW 1.5) Page Speaker Volume Speaker page volume control for SIP or multicast paging. This setting is an amplifier gain control and output level will depend on streaming level. This setting will apply to all multicast, regardless of content.

  • Page 29: Output Level

    8373 Zone Paging Adapter (FW 1.5) Output Level The following output levels are available, allowing the 8373 to interface with a wide variety of devices: +4dBu 10k (1.23 Vrms) 0dBu 10k (0.775 Vrms) 0dBV 10k (1.0 Vrms) -10dBV 10k (0.316 Vrms) 0dBm 600 ohm (0.755 Vrms)

  • Page 30: Basic Settings Tab - Channels

    8373 Zone Paging Adapter (FW 1.5) Basic Settings Tab – Channels Select multicast zone(s) to play the audio on for each channel. *If Polycom Mode is enabled in the Basic Settings > Multicast tab, Polycom groups can be selected for each channel.

  • Page 31: Number Of Zones

    8373 Zone Paging Adapter (FW 1.5) Number of Zones The 8373 Page Extension always supports DTMF input mode to select zone for activating the Relay Channels, even when in stand-alone with multicast disabled. Document 91-00071 Algo Communication Products Ltd (604) 454-3792...

  • Page 32: Multicast

    SIP endpoints, like 8180, 8186, or 8188, can be integrated using multicast. Multicast IP Addresses Each 8373 Zone Paging Adapter has its own IP address, and shares a common multicast IP and port number (multicast zone) for multicast packets. The master transmits to a configurable multicast zone, and the slave units listen to all the multicast zones assigned to them.

  • Page 33: Basic Settings Tab - Multicast (Master Settings)

    Settings) Multicast Mode (Master/Sender Selected) If master is enabled the 8373 Zone Paging Adapter will broadcast an IP stream when activated in addition to playing the audio. (Note that the 8373 Zone Paging Adapter cannot be both a multicast master and slave simultaneously).

  • Page 34: Speaker Playback Zones

    8373 Zone Paging Adapter (FW 1.5) To multicast page announcements solely to Polycom phones, select “Polycom Group Page” or “Push-to-Talk”. Then, configure the 8373 with “Polycom Zone” (IP Address and Port). Always ensure that the multicast settings on all Slaves match those of the Master.

  • Page 35: Basic Settings Tab - Multicast (Slave Settings)

    Basic Settings Tab - Multicast (Slave Settings) Multicast Mode (Slave Selected) If slave is enabled the 8373 Zone Paging Adapter will activate when receiving a multicast message. Number of Zones (Regular Multicast Type Selected) *See Basic Settings > Channels tab (on page 30) for definition.
  • Page 36 25 Polycom Groups configured on the Algo device. If an Algo device is used as a Multicast master, a tone does not have to be set as the Algo master will provide its own tone. Polycom Group Tones can be set in Advanced Settings >...

  • Page 37: Additional Features Tab - More

    8373 Zone Paging Adapter (FW 1.5) Additional Features Tab – More Page Extensions Additional SIP extensions can be registered for each multicast zone that will be used. This allows the advantage of dialing directly to a zone without needing to enter DMTF (e.g. speed-dial keys can be used), but may require additional SIP licenses depending.

  • Page 38: Advanced Settings Tab - Network

    DHCP is an IP standard designed to make administration of IP addresses simpler. When selected, DHCP will automatically configure IP addresses for each 8373 Zone Paging Adapter on the network. Alternatively the 8373 Zone Paging Adapter can be set to a static IP address. VLAN Mode Enables or Disables VLAN Tagging.

  • Page 39: Vlan Id

    8373 Zone Paging Adapter (FW 1.5) VLAN ID Specifies the VLAN to which the Ethernet frame belongs. A 12-bit field specifying the VLAN to which the Ethernet frame belongs. The hexadecimal values of 0x000 and 0xFFF are reserved. All other values may be used as VLAN identifiers, allowing up to 4094 VLANs.

  • Page 40: Advanced Settings Tab - Admin

    Advanced Settings Tab – Admin Password Password to log into the 8373 Zone Paging Adapter web interface. You should change the default password algo in order to secure the device on the network. If you have forgotten your password, you will...

  • Page 41: Device Name (Hostname)

    8373 Zone Paging Adapter (FW 1.5) Device Name (Hostname) Name to identify the device in the Algo Network Device Locator Tool. Introduction Section on Status Page Allows the introduction text to be hidden from the login screen. Web Interface Session Timeout Set the maximum period of inactivity after which the web interface will log out automatically.

  • Page 42: Force Strong Password

    The Realms may be the same or different for all the extensions used. SNMP Support (v1 get only) Additional SNMP support is anticipated for future, but the 8373 Zone Paging Adapter will respond to a simple status query for automated supervision.

  • Page 43: Advanced Settings Tab - Time

    8373 Zone Paging Adapter (FW 1.5) Advanced Settings Tab – Time Network time is used for logging events into memory for troubleshooting. Time Zone Select time zone. NTP Time Servers 1/2/3/4 The adapter will attempt to use Timer Server 1 and work down the list if one or more of the time servers become unresponsive.
  • Page 44 8373 Zone Paging Adapter (FW 1.5) Note, this time value will be lost at power down, or overwritten if NTP is currently active. Time and date are used only for logging purposes and are not typically required. Document 91-00071 Algo Communication Products Ltd...

  • Page 45: Advanced Settings Tab - Provisioning

    Disabled if this feature is not in use. This will prevent unauthorized re-configuration of the device if DHCP is used. Provisioning allows installers to pre-configure 8373 Zone Paging Adapter units prior to installation on a network. It is typically used for large deployments to save time and ensure consistent setups.

  • Page 46: Md5 Checksum

    Generating a generic configuration file 1. Connect 8373 to the network 2. Access the 8373 Web Interface Control Panel 3. Configure the 8373 with desired options 4. Click on the System tab and then Maintenance. 5. Click “Download” to download the current configuration file 6.

  • Page 47: Generating A Specific Configuration File

    Zone Paging Adapter with the MAC address specified in the configuration file name. Since all the necessary settings can be included in this file, the 8373 will be ready to work immediately after the configuration file is downloaded. The MAC address of each 8373 Zone Paging Adapter can be found on the back label of the unit.

  • Page 48: Advanced Settings Tab - Tones

    8373 Zone Paging Adapter (FW 1.5) Advanced Settings Tab – Tones Uploading Custom Audio Files Custom audio files (WAV format) may be uploaded into memory to play for notification applications. An existing file may also be modified by downloading the original via the links in the web interface, making the desired changes, and then uploading the new version with a different name.

  • Page 49: Tone Files Included In Memory

    8373 Zone Paging Adapter (FW 1.5) Tone Files Included in Memory The 8373 Zone Paging Adapter includes several pre-loaded WAV files that can be selected to play for various events. The web interface allows selection of the WAV file and also the ability to play the WAV file immediately over the speaker for testing.

  • Page 50: Advanced Settings Tab - Advanced Audio

    8373 Zone Paging Adapter (FW 1.5) Advanced Settings Tab – Advanced Audio Dynamic Range Compression (DRC) If enabled, compresses the dynamic range of page audio to increase loudness. Dynamic Range Compression Gain Higher compression gain increases distortion. Jitter Buffer Range The jitter buffer removes the jitter in arriving network packets by temporarily storing them.

  • Page 51: Speaker Filter G.711

    8373 Zone Paging Adapter (FW 1.5) Speaker Filter G.711 G.711 speaker filter. Speaker Filter G.722 G.722 speaker filter. Speaker Noise Filter Enables heavy filtering below 150Hz to reduce mains induced noise (fans). Document 91-00071 Algo Communication Products Ltd (604) 454-3792...

  • Page 52: Advanced Settings Tab - Advanced Sip

    Adapter will re-register with the SIP server. Default setting is 3600 seconds (1 hour). Only change if instructed otherwise. Keep-alive Method If Double CRLF is selected the 8373 Zone Paging Adapter will send a packet every 30 seconds (unless changed) to maintain connection with the SIP Server if behind NAT.

  • Page 53: Different Ports For Extensions

    If Server Redundancy is selected the web page will expand as shown below. Backup Server #1 If primary server is unreachable the 8373 Zone Paging Adapter will attempt to register with the backup servers. If enabled, the 8373 Zone Paging Adapter will always attempt to register with the highest priority server.

  • Page 54: Automatic Failback

    8373 Zone Paging Adapter (FW 1.5) Automatic Failback Reconnect with higher priority server once available, even if backup connection is still fine. Polling Method SIP message used to poll servers to monitor availability. Document 91-00071 Algo Communication Products Ltd (604) 454-3792...

  • Page 55: Advanced Settings Tab - Advanced Multicast

    Multicast Audio Sync (Slave Mode) When paging to the 8373 Zone Paging Adapter as well as other third party devices, the low latency of the 8373 Zone Paging Adapter may cause the audio to lead other devices. By adding audio delay up to one second, the 8373 Zone Paging Adapter may be synchronized with other endpoints or telephones that have greater latency.

  • Page 56: Master Output Packetization Time (Master Mode)

    “None”. If a page is received from a non-Algo device that doesn’t send a tone, a tone can be inserted on the slaves (above) each time they detect page audio starting, allowing them to play a tone.

  • Page 57: Polycom Slave Tones

    8373 Zone Paging Adapter (FW 1.5) Polycom Slave Tones A tone may be set for any of the 25 Polycom Groups. If using an Algo device as a Multicast master, it is recommended to set the slave tones to “None” to avoid conflicts, as the Algo devices already multicast a tone by default.

  • Page 58: System Tab - Maintenance

    Save the device settings to a text file for backup or to setup a provisioning configuration file. Restore Configuration File Restore settings from a backup file. Restore Configuration to Defaults Resets all 8373 Zone Paging Adapter device settings to factory default values. Reboot the Device Reboots the device. Document 91-00071...

  • Page 59: Method

    (refer to top right of Control Panel). System – System Log System log files are automatically created and assist with troubleshooting in the event the 8373 Zone Paging Adapter does not behave as expected. Document 91-00071 Algo Communication Products Ltd...

  • Page 60: Specifications

    Page Mode: Live or delayed (cache and release) Page Zones: Based on SIP extension called, received multicast IP Address, or keypad events for 8373 configured as page SIP extension. Relay Output: Normally open or normally closed. Max rating 30V 50 mA.
  • Page 61 8373 Zone Paging Adapter (FW 1.5) Environmental: +32 to +122 deg F (0 to +50 deg C); Suitable for dry indoor environments only. Dimensions: 6.5'' x 4.3'' x 1.3'' (16.5 cm x 10.9 x 3.3 cm) Mounting: Wall mountable or tabletop Weight: 2.2 lb (1.0 kg)

  • Page 62: Fcc Compliance Statement

    8373 Zone Paging Adapter (FW 1.5) FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
