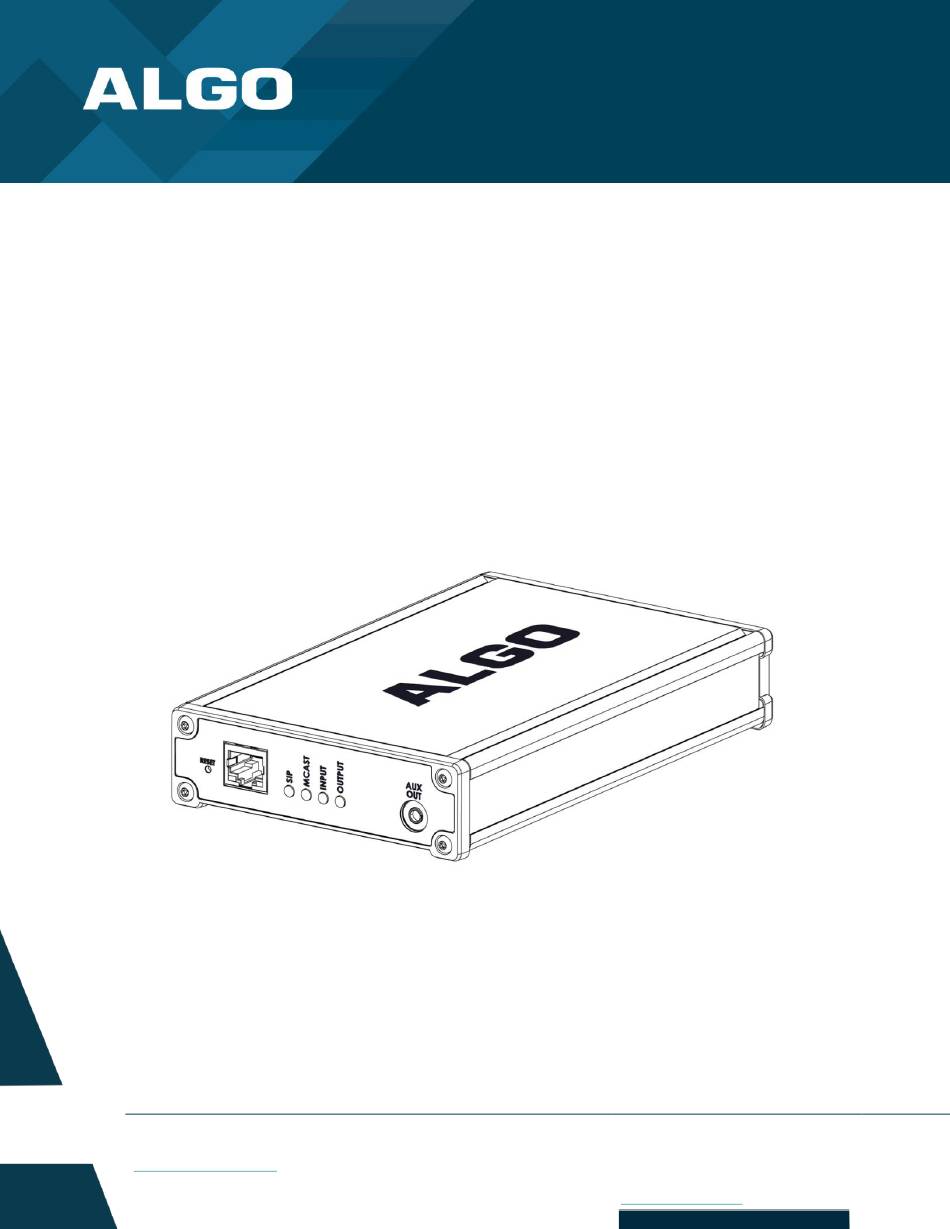

8305 Multi-Interface IP Paging Adapter
UG-8305-030524
Firmware Version 5.5
support@algosolutions.com
March 12, 2024
User Guide
Algo Communication Products Ltd.
4500 Beedie Street, Burnaby
V5J 5L2, BC, Canada
1-604-454-3790
www.algosolutions.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8305 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Algo 8305

Summary of Contents for Algo 8305

  • Page 1 8305 Multi-Interface IP Paging Adapter User Guide UG-8305-030524 Algo Communication Products Ltd. Firmware Version 5.5 4500 Beedie Street, Burnaby support@algosolutions.com V5J 5L2, BC, Canada March 12, 2024 1-604-454-3790 www.algosolutions.com...

  • Page 2: Table Of Contents

    8305 Multi-Interface IP Paging Adapter Product Overview .....................................7 Introduction ....................................7 Product Views ................................... 8 Setup and Installation..................................10 Hardware Setup & Installation ..............................10 Accessing the Web Interface ..............................12 2.2.1 Web Interface Setup ............................... 12 2.2.2 Check Device Status ................................ 13 Register Your Product ................................
  • Page 3 8305 Multi-Interface IP Paging Adapter RTCP ......................................74 System Configuration ..................................75 Network Settings ..................................75 Admin ...................................... 82 Users ......................................91 Time ......................................92 Provisioning ..................................... 94 Maintenance ..................................100 Firmware ....................................102 File Manager..................................105 System Log .................................... 106 9.10 Logout....................................
  • Page 4 The information contained in this document is believed to be accurate in all respects but is not warranted by Algo. The information is subject to change without notice and should not be construed in any way as a commitment by Algo or any of its affiliates or subsidiaries.
  • Page 5 Algo recommends that this product is installed by a qualified electrician. If you are unable to understand the English language safety information, then please contact Algo by email for assistance before attempting an installation support@algosolutions.com.
  • Page 6 EMERGENCY COMMUNICATION If used in an emergency communication application, the 8305 Multi-Interface IP Paging Adapter should be routinely tested. The Algo Device Management Platform (ADMP) or any third-party management tool supporting SNMP supervision is recommended for assurance of proper operation. Contact Algo for other methods of operational assurance.

  • Page 7: Product Overview

    The 8305 can act as a transmitter or receiver, giving you full control of your multicasting needs. Using wideband audio (G.722 voice codec), the 8305 allows you to deliver clear, crisp audio and high speech intelligibility for voice pages, tones, and alerts.

  • Page 8: Product Views

    SIP call. MCAST Light (Blue) A steady light will appear when the 8305 receives multicast audio as a Receiver. The light will blink when the 8305 sends multicast audio as a Transmitter. INPUT Light (Blue) Not currently used on this device.
  • Page 9 Turns on when the analog output is enabled. AUX OUT 3.5 mm Jack Analog line level output for compatible PC speakers or headset. Non-isolated. Figure 2: 8305 Multi-Interface IP Paging Adapter back faceplate. 8305 - Left Side Telephone Port Emulates an analog telephone that can go on and off hook. Has built in ring detection with auto-answer.

  • Page 10: Setup And Installation

    Hardware Setup & Installation Mounting Instructions Use the supplied bracket to mount the 8305 horizontally. The following instructions can be used to install the 8305 on a 1/2” drywall: 1. Use appropriate drywall anchors for #8 screws and pre-drill per anchor manufacturer’s instructions.
  • Page 11 3. Press the recessed reset switch (RST) to play the IP address over the analog outputs. A headset can be connected to the green AUX output port. You can also find the IP address by downloading the Algo Network Device Locator or a third-party network scanner to find Algo devices on your network.

  • Page 12: Accessing The Web Interface

    After you enter the IP address for your device into your browser, the web interface will appear. You must log in to view device settings. The default password is algo. This password can be changed under Advanced Settings → Admin after logging in. Changing the default password is highly recommended if the device is directly connected to a public network.

  • Page 13: Check Device Status

    8305 Multi-Interface IP Paging Adapter 5. Verify the extension is properly registered with the SIP server in the Status tab. Ensure the SIP registration says “Successful”. 6. Test the adapter by dialing the registered SIP extension from an IP phone connected to your network.

  • Page 14: Register Your Product

    The 8305 can function as an IP telephone in a system with a simple configuration when a connected SIP extension is called. Also called a page extension, this enables the 8305 Multi-Interface IP Paging Adapter to recognize the configured extension and auto-answer when called.

  • Page 15: Basic Settings

    8305 Multi-Interface IP Paging Adapter Basic Settings Figure 7: Configure basic SIP settings. Use these SIP settings to enter SIP server information and account credentials. You can ask your telephone system administrator or hosted account provider for more details. After entering the information and saving the settings, check the Status tab to confirm the successful registration.
  • Page 16 (and multicast if configured) until the inbound call stops ringing. The 8305 will not answer the call on this extension. Often, the 8305 will be a member of a hunt group or ring group to ring in conjunction with a telephone.

  • Page 17: More

    8305 Multi-Interface IP Paging Adapter More Page Extensions Figure 11: More page extensions. Additional SIP paging extensions can be registered for each multicast zone. This enables you to dial a zone directly without entering DTMF Codes; however, this may require additional SIP licenses depending on the SIP provider. Some SIP telephone systems may not support this capability altogether if there is a limit on the number of extensions registered on a single device.

  • Page 18: More Ring Extensions

    8305 Multi-Interface IP Paging Adapter The 8305 will auto-answer any inbound calls received on these numbers and provide a voice paging path and multicast if configured. Only a single call can be active at a time. More Ring Extensions Figure 17: More ring extensions.

  • Page 19: Emergency Alerts

    8305 Multi-Interface IP Paging Adapter Enable a custom ring to allow the device to play a custom ringtone when receiving a call with the "Alert-Info" SIP header. Emergency Alerts Figure 15: Emergency Alerts. UG-8305-030524 support@algosolutions.com Page 19...
  • Page 20 8305 Multi-Interface IP Paging Adapter The 8305 is often used for emergency (e.g., lockdown, evacuation, reverse evacuation), safety (e.g., medical, workplace accident), and security events (e.g., OSHA or similar workplace regulations) alerting. Emergency alerts notify others of an emergency quickly and efficiently. Users can trigger and latch an emergency alert or announcement by dialing a pre-configured extension (of which you may have many) or dial a single SIP extension and use DTMF to select an announcement.
  • Page 21 8305 Multi-Interface IP Paging Adapter Announcement Selection Select Direct Extensions to register a separate extension for each announcement. Mode Select DTMF Selectable to register a single extension that accepts DTMF input to select which announcement to play. Answer Inbound Call This setting indicates how Announcement calls are handled.
  • Page 22 8305 Multi-Interface IP Paging Adapter DTMF Selection Extension Enter the SIP extension for the DTMF Selection parameter of the 8305. Authentication ID Enter the Authentication ID. It may also be called Username for some SIP servers or may be the same as the extension.
  • Page 23 If using “DTMF 0”, the user should dial the main DTMF Selection extension and select ‘0’ to cancel the announcement. Extension Enter the SIP extension for the Call-to-Cancel Selection parameter of the 8305. Authentication ID Enter the Authentication ID provided by the System Administrator. It may also be called Username for some SIP servers or may be the same as the extension.
  • Page 24 8305 Multi-Interface IP Paging Adapter Announcements Announcement # To configure an Emergency Alert extension, select Enabled for an announcement number. Up to 10 extensions can be registered allowing up to 10 different announcements. Audio files can be easily uploaded to create custom announcements.

  • Page 25: Advanced Sip

    8305 Multi-Interface IP Paging Adapter Advanced SIP UG-8305-030524 support@algosolutions.com Page 25...
  • Page 26 SIP Outbound Support (RFC Enable this option to support best networking practices according to RFC 5626. 5626) This option should be enabled if the 8305 is registered with a hosted server or TLS is used for SIP Transportation. UG-8305-030524 support@algosolutions.com...
  • Page 27 Enter the IP address for an outbound proxy. Register Period (seconds) Enter the maximum requested period where the 8305 will re-register with the SIP server. The default setting is 3600 seconds (1 hour). Note that if an Expires header is provided by the SIP response 200 (OK), this time will take precedence over the Register Period defined time here.
  • Page 28 8305 Multi-Interface IP Paging Adapter Media NAT IP address for STUN server if present or IP address/credentials for a TURN server. ICE – TURN Server Enter the IP address or domain of the ICE server. ICE – TURN User Enter the username.
  • Page 29 Automatic Fallback Enable to allow the 8305 to reconnect with a higher priority server once available, even if the backup connection is still working. Polling Method Select a polling method based on what your SIP provider supports.
  • Page 30 Select a keep-alive method: • None • Double CRLF: The 8305 will send a packet regularly to maintain connection with the SIP Server if behind NAT. Keep-Alive Interval Set the interval in seconds that the CRLF message should be sent. 30 seconds is recommended.

  • Page 31: Multicast Configuration

    Multicast IP Addresses Each 8305 has a unique IP address and shares a common multicast IP and port number (multicast zone) for multicast packets. The Transmitter units send to a configurable multicast zone, and the Receiver units listen to assigned multicast zones.

  • Page 32: Multicast: Transmitter (Sender)

    8305 Multi-Interface IP Paging Adapter The page pre-announce tone is generated from the transmitter. The speaker volume can be increased or decreased for each multicast receiver individually. Multicast: Transmitter (Sender) Figure 9: Multicast transmitter mode settings. UG-8305-030524 support@algosolutions.com Page 32...
  • Page 33 Always ensure that the multicast settings on all Receiver devices match those of the Transmitter. Multicast Mode If Transmitter (Sender) is selected, the 8305 will broadcast an IP stream when activated in addition to playing audio through the audio output. The 8305 cannot be both a multicast Transmitter and Receiver simultaneously.
  • Page 34 8305 Multi-Interface IP Paging Adapter Poly Group Paging/Push-to-Talk This section is used if the Multicast Type includes Poly Group Page or Poly Push-to-Talk. Poly Zone Enter the same Multicast IP Address and Port number configured on the Poly phones. Poly Group Selection Mode Select Single Group to broadcast on one pre-configured group.
  • Page 35 This is useful if using the DTMF Selectable Group mode or additional page extensions (Additional Features → More Page Extensions) per group to make 8305 a member of only certain zones. In this case, the Transmitter does not participate in the Zone but transmits certain traffic.
  • Page 36 8305 Multi-Interface IP Paging Adapter Transmitter (Sender) Zone Settings This section is used if the Multicast Type includes Regular (RTP). Zone Selection Mode Select Single Zone to broadcast on one pre-configured zone. Multiple SIP extensions can be registered on the Transmitter device. Each extension is mapped to a unique zone, allowing zones to be called directly (e.g., from speed-dial keys).
  • Page 37 Speaker Playback Zones Select Speaker Playback Zones to control which specific zones the 8305 can play audio. This is useful if using the DTMF Selectable Zone mode or additional page extensions (Additional Features →...

  • Page 38: Multicast: Receiver (Listener)

    Always ensure that the multicast settings on all Receiver devices match those of the Transmitter. Multicast Mode If Receiver (Listener) mode is selected, the 8305 will activate when receiving a multicast message. It will mimic the audio stream of the transmitter but use local volume settings. This can be set via Basic Settings →...
  • Page 39 Receiver zones but are hidden by default to simplify the interface. Receiver (Listener) Zone Settings Basic Receiver Select one or more multicast zones for the 8305 to listen to. Multicast zone priority will be based on the zone definition list order defined in Advanced Settings → Advanced Multicast. Zones Expanded Receiver Select additional zones (up to 50) for the device to listen to.
  • Page 40 Poly Receiver If using a Poly telephone as a Multicast Transmitter, a tone may be set for any of the 25 Poly Groups configured on the 8305. Poly Group Tones can be set in Advanced Settings → Channels Advanced Multicast.

  • Page 41: Using Multicast

    Using Multicast Page Zones The 8305 Multi-Interface IP Paging Adapter can listen to nine basic multicast zones; however, up to 50 are available (See Additional Features → More Page Extensions for more details). The multicast IP addresses define these zones.

  • Page 42: Advanced Multicast

    8305 Multi-Interface IP Paging Adapter Advanced Multicast These settings are only visible when in Transmitter or Receiver multicast mode. This can be set in Basic Settings → Multicast. The default pre-populated multicast zone IP addresses and ports will work in most cases and should only be altered for rare cases.
  • Page 43 8305 Multi-Interface IP Paging Adapter Transmitter Settings Transmitter Output Select an audio encoding format for the Transmitter device to use when sending output Codec to the Receivers. Supported formats include: • G.711 ulaw • G.722 • Opus • Only G.711 and G.722 are supported when using Two-Way Paging mode.
  • Page 44 Multicast Type is set to Poly Group Page or Poly Push-to-Talk. When using multicast with other third-party devices that have a delay in their audio path, the audio on the 8305 may be heard slightly earlier than on these other devices. Use this feature to add a small delay to the audio output on the 8305 to synchronize with these other devices.

  • Page 45: Audio Configuration

    An emergency notification system is essential for delivering critical messages in seconds to those within your facility. The 8305 can also be connected to a visual alerter, such as a strobe light, to accompany audio emergency notifications.

  • Page 46: Basic Audio Settings

    8305 Multi-Interface IP Paging Adapter Basic Audio Settings → Figure 14: Basic Settings Features. UG-8305-030524 support@algosolutions.com Page 46...
  • Page 47 Ring/Alert Tone Select an audio file to play when a ring event is detected on the SIP Ring Extension. Test the audio file immediately using the Play, Loop, and Stop buttons if the 8305 is connected to a speaker. During multicast, the device will broadcast an audio stream using the Transmitter’s selected ringtone.
  • Page 48 8305 Multi-Interface IP Paging Adapter Inbound Page Settings Page Volume This setting is for gain control for SIP or multicast paging. The output level will depend on the streaming level. Page Speaker Volume will apply to all inbound multicast streams (for Receiver mode only) regardless of audio source or type.
  • Page 49 DTMF Detection Type Select the preferred dual-tone multi-frequency (DTMF) detection method. DTMF is a technology used with touch tone phones (the sound made when pressing a number key). The 8305 uses this for multi-zone selection, passcode, etc. UG-8305-030524 support@algosolutions.com Page 49...
  • Page 50 When enabled, Ambient Noise Compensation will allow the speaker level to adjust Compensation automatically in response to ambient noise levels detected at the device before the start of each call. The 8305 requires an external microphone to be connected to do this. Automatic Gain Control Enable or disable AGC to normalize the audio level.

  • Page 51: Tones

    Tones The 8305 includes several pre-loaded audio files that can be selected to play for various events. The web interface allows you to select a file and play it immediately over the speaker for testing, available in Basic Settings → Features.
  • Page 52 8305 Multi-Interface IP Paging Adapter Files Download and Install Ring Tones from the Tone files can be downloaded manually from the Algo website. Algo Server Cache Rebuild Tone Cache Files Only needed when the tone cache is out of sync. The operation might take a long time depending on the types and sizes of the tone files.

  • Page 53: Advanced Audio

    8305 Multi-Interface IP Paging Adapter Advanced Audio Figure 18: Advanced audio settings. UG-8305-030524 support@algosolutions.com Page 53...
  • Page 54 8305 Multi-Interface IP Paging Adapter Functions Dynamic Range Compression (DRC) Enable to compress the dynamic range of page audio to increase loudness. Dynamic Range Compression Gain Select the amount of compression gain from the dropdown menu. More gain increases distortion.
  • Page 55 8305 Multi-Interface IP Paging Adapter Audio Filters Speaker Filter Select a frequency from the dropdown to apply a high-pass filter to the speaker output. This setting reduces audio artifacts like humming or buzzing by filtering out unwanted frequencies. Speaker Noise Filter Enable to filter below 145 Hz to reduce mains-induced noise like fans.

  • Page 56: Schedule Configuration

    Compensation Max Volume SCHEDULE CONFIGURATION The 8305 includes a calendaring functionality synchronized to Network Time Protocol (NTP). It can schedule school bells, play automated announcements for retail and healthcare, and notify workplace shift changes and breaks. Calendar events can be scheduled to play in specific zones, allowing the delivery of announcements to part or all of a facility.

  • Page 57: Calendar

    8305 Multi-Interface IP Paging Adapter Calendar The Calendar displays scheduled events like bells and announcements. These can include events deployed with Algo IP speakers, paging adapters, and visual alerters. Figure 19. Calendar on the Schedules tab of the 8305 web interface.

  • Page 58: Schedules

    Add an Event Description, Time, and Audio. If your device is set to Multicast Transmitter, you should also set the Page Zone. The selected audio file will be played locally over the network via multicast to Algo endpoints or RTP multicast compatible third-party equipment configured as Receivers in this zone.

  • Page 59: Data

    8305 Multi-Interface IP Paging Adapter Data → Figure 21. Configuring the Scheduler Data tab. Backup/Restore Data Download Scheduler Download a backup database file of schedules with events, times, and calendar dates. Data File Note that this backup is independent from the rest of the configuration backup on the device.

  • Page 60: Integration

    8305 Multi-Interface IP Paging Adapter INTEGRATION Input/Output Figure 13: Input settings. UG-8305-030524 support@algosolutions.com Page 60...
  • Page 61 Algo 1205 Audio Interface Switch with Supervision • Algo 2507 Ring Detector Notification actions can be triggered via supervision settings if the input switch is disconnected. For more information on how to configure each of these devices with the 8305, see Algo Compatible Accessories.
  • Page 62 Action Play Tone When the 8305 input is triggered, a tone or a pre-recorded audio file will play over the speaker or multicast. This function can be used to request support or assistance in service or retail environments, notify about an emergency at a specific location in medical or educational facilities, or sound an alarm during an intrusion.
  • Page 63 8305 Multi-Interface IP Paging Adapter Tone/Pre-recorded Available when Action is set to Play Tone or Make SIP Call with Tone. Announcement Select a recording or tone to use. Custom audio files may be used and uploaded through System → File Manager.
  • Page 64 Action When Tamper Detected 8305 can be configured with supervision to execute one of the above three actions (Play Tone, Make Two-Way SIP Voice Call, Make SIP Call with Tone) if the device goes offline due to wiring failure or after being tampered with.
  • Page 65 8305 Multi-Interface IP Paging Adapter Make Two-Way SIP Voice Call When the 8305 input is triggered, a voice path will open for an intercom-like call via an external microphone connected to a pre-configured telephone extension. This option can be used when a call needs to be made from a public place where a telephone would not be practical to use.
  • Page 66 8305 Multi-Interface IP Paging Adapter Port Use the same details as the receiver zone that is being listened to. Outbound SIP Call Settings Outbound Ring Limit Available when Action is set to Make Two-Way SIP Voice Call or Make SIP Call with Tone.
  • Page 67 Enable to close the circuit when you attempt to trigger events elsewhere. This setting controls whether the output relay activates or not. Note that when enabled, the output relay will activate whenever the 8305 is activated (paging, alerting, etc.) This is a normally open relay only.

  • Page 68: Api

    Requesting systems can interact with Algo devices through a uniform and predefined set of stateless operations. See Algo RESTful API Guide for more details. To configure API settings on your 8305 Multi-Interface IP Paging Adapter, use the web interface and navigate to Advanced Settings → Admin → API Support. API Support RESTful API Enable a secure API for remote access and device control via HTTP.

  • Page 69: Informacast

    InformaCast As a Singlewire Solutions Partner, Algo products have been certified for compatibility and interoperability. To set up your 8305 Multi-Interface IP Paging Adapter with Informacast, use the web interface and navigate to Advanced Settings → Admin → InformaCast. InformaCast InformaCast Support This feature requires a valid InformaCast license to be activated.
  • Page 70 8305 Multi-Interface IP Paging Adapter Syn-Apps As a Syn-Apps Partner, Algo products have been Syn-Apps Certified for compatibility and interoperability. Syn-Apps The SA-Announce feature cannot be used when Multicast Transmitter mode or Poly mode is enabled. To enable SA- Announce mode, set Multicast Mode to None in Basic Settings → Multicast.

  • Page 71: Device Management

    To connect your 8305 to your ADMP account, use the web interface and navigate to Advanced Settings → Admin → ADMP Cloud Monitoring. Note that if you choose to use ADMP to manage your devices, the Algo 8300 IP Controller cannot be used at the same time.

  • Page 72: Algo 8300 Ip Controller

    The Algo 8300 IP Controller is designed for centralized Algo endpoint monitoring and supervision. Any Algo SIP endpoint device, including the 8305, can be monitored on the network via the 8300 dashboard. Note that if you choose to use the Algo 8300 IP Controller to manage your devices, ADMP cannot be used at the same time.

  • Page 73: Snmp

    8305 Multi-Interface IP Paging Adapter SNMP Simple Network Management Protocol (SNMP) can be used to monitor and manage the 8305. To configure your SNMP settings, use the web interface and navigate to Advanced Settings → Admin → Simple Network Management Protocol.

  • Page 74: Rtcp

    8305 Multi-Interface IP Paging Adapter RTCP Real-Time Transport Control Protocol (RTCP) can be used to monitor data delivery on the 8305. To configure your RTCP settings, use the web interface and navigate to Advanced Settings → Admin → RTP Control Protocol (RTCP).

  • Page 75: System Configuration

    8305 Multi-Interface IP Paging Adapter SYSTEM CONFIGURATION Network Settings Figure 22: Network settings UG-8305-030524 support@algosolutions.com Page 75...
  • Page 76 IPv4 IPv4 Method The 8305 can be set to a static or DHCP IP address. DHCP is an IP standard designed to simplify the administration of IP addresses. When selected, DHCP will automatically configure IP addresses for each 8305 on the network.
  • Page 77 8305 Multi-Interface IP Paging Adapter IPv4 Address/Netmask Enter the static IP address and netmask (CIDR format) for the 8305 (e.g., 192.168.1.23/24). IPv4 Gateway Enter the gateway address. IPv6 IPv6 Method The 8305 can be set to a static or DHCP IP address.
  • Page 78 8305 Multi-Interface IP Paging Adapter ICMPv6 Options Destination Unreachable messages Enable to restrict traffic by filtering ICMPv6 packets. Neighbour Discovery Redirect messages Enable to restrict traffic by filtering ICMPv6 packets. Anycast Echo Replies Enable to restrict traffic by filtering ICMPv6 packets.
  • Page 79 8305 Multi-Interface IP Paging Adapter 802.1Q Virtual LAN VLAN Mode VLAN tagging is the networking standard that supports Virtual LANs (VLANs) on an Ethernet network. The standard defines a system of VLAN tagging for Ethernet frames and the accompanying procedures to be used by bridges and switches in handling such frames. The standard also provides provisions for a quality-of-service prioritization scheme known as IEEE 802.1p and defines the Generic Attribute Registration Protocol.
  • Page 80 Authentication Mode Select the desired authentication mode. Anonymous ID If configured, the 8305 will send the anonymous ID to the authenticator instead of the 802.1X client username. The ID should contain a string identifying the IEEE 802.1X authenticator originating the request. Ask your IT administrator for details.
  • Page 81 8305 Multi-Interface IP Paging Adapter Differentiated Services Differentiated Services provide quality of service if the DSCP protocol is supported on your network. Differentiated Services can be specified independently for SIP control packets and RTP and RTCP audio packets. SIP (6-bit DSCP value) Enter the DSCP value for SIP packets.

  • Page 82: Admin

    8305 Multi-Interface IP Paging Adapter Admin Figure 23: Admin settings. UG-8305-030524 support@algosolutions.com Page 82...
  • Page 83 8305 Multi-Interface IP Paging Adapter Admin Password Use this section to change the admin password for logging into your 8305 web interface. It’s recommended that you change the admin password from the default to secure the device on your network.
  • Page 84 Display Switch Port ID on Status Page Turn On to display the Switch Port ID on the Status Page. This option is only possible if the 8305 is connected to a switch that supports LLDP or CDP. Web Interface Session Timeout Set the maximum duration of inactivity to log a user out of the web interface automatically.
  • Page 85 8305 Multi-Interface IP Paging Adapter Log Settings Log Level This setting should only be used after consulting with the Algo support team. Log Method Select a Log Method: • Local: The log file is saved on the device in RAM.
  • Page 86 Therefore, most browsers will provide a warning when using HTTPS. Force Strong Password When Enabled, you can enforce a secure password for the 8305 web interface for additional protection. The password requirements for a strong password are: •...
  • Page 87 8305 Multi-Interface IP Paging Adapter Simple Network Management Protocol SNMP Support The existing setting will respond to a simple status query for automated supervision. SNMP Community String Speak to your IT Administrator for more information. SNMPv3 Security Speak to your IT Administrator for more information.
  • Page 88 8305 Multi-Interface IP Paging Adapter SCI Support Simple Control Interface (SCI) is a separate control interface for certain applications. Its primary purpose is to support phones that may have programmable keys that can only send out HTTP GET requests. System Integrity...
  • Page 89 8305 Multi-Interface IP Paging Adapter Syn-Apps The SA-Announce feature cannot be used when Multicast Transmitter mode or Poly mode is enabled. To enable SA- Announce mode, set Multicast Mode to None in Basic Settings → Multicast. SA-Announce Support Enable to convert unicast streams to multicast and deliver them to the target endpoints.
  • Page 90 5 minutes to complete. This feature requires a compatible release from Microsoft. ADMP Cloud Monitoring Enable ADMP Cloud The Algo Device Management Platform (ADMP) simplifies the process of managing, Monitoring monitoring, and maintaining Algo devices from any location. This feature requires a valid Account ID.

  • Page 91: Users

    Users Use these settings to create a separate user who only has access to the scheduler on the 8305. This may be useful, for example, in a school where you may want someone to have access to bell schedule modification, but don’t want them to have access to all 8305 configuration settings.

  • Page 92: Time

    Time and date are used for logging purposes and the scheduler feature. Figure 25: Time settings. General Timezone Select a time zone for 8305 settings. NTP Time Servers The device will attempt to use Timer Server 1 and work down the list if one or more of 1/2/3/4 the time servers become unresponsive.
  • Page 93 8305 Multi-Interface IP Paging Adapter This time value will be lost at power down or overwritten if connection to the NTP server is available. Time and date are used for logging purposes and the scheduler feature. Manually Override Manual time and date are intended for testing purposes only. Time will be lost upon Time power down if the NTP server is reachable.

  • Page 94: Provisioning

    8305 Multi-Interface IP Paging Adapter Provisioning Figure 26: Provisioning settings. UG-8305-030524 support@algosolutions.com Page 94...
  • Page 95 Mode Provisioning Mode Enabling provisioning allows installers to pre-configure 8305 on a network before installation. This is typically done for large deployments to save time and ensure consistent setups. It is recommended that Provisioning Mode be set to Disabled if this feature is not in use. This will prevent unauthorized re-configuration of the device if DHCP is used.
  • Page 96 8305 Multi-Interface IP Paging Adapter Settings Server Method Select a Server Method. • Auto: All three DHCP options (66, 160, 150) will be automatically checked for an active provisioning server UG-8305-030524 support@algosolutions.com Page 96...
  • Page 97 HTTPS — This may help prevent configuration files from being read by an unwanted third party and having sensitive data stolen. The 8305 configuration files can be automatically downloaded from a provisioning server using DHCP Option 66. This option code (when set) supplies a TFTP boot server address to the DHCP client to boot from.
  • Page 98 Check-sync Behavior Select Always Reboot to set the 8305 to always reboot despite other settings. Select Conditional Reboot to set the 8305 to check the provisioning server. Only reboot if a new config is found (unless “reboot=true” is provided as a parameter in the check-sync event).
  • Page 99 Since all necessary settings can be included in this file, the 8305 will be ready to work immediately after downloading the configuration file. The MAC address of each 8305 can be found on the back label of the unit.

  • Page 100: Maintenance

    8305 Multi-Interface IP Paging Adapter Maintenance Figure 27: Maintenance settings. Backup/Restore Configuration Download Configuration File Save 8305 configuration settings to a text file for backup or to set up a provisioning configuration file. Restore Configuration File Restore settings by uploading a backup file. UG-8305-030524 support@algosolutions.com...
  • Page 101 8305 Multi-Interface IP Paging Adapter Restore Configuration to Defaults Reset all 8305 Multi-Interface IP Paging Adapter settings to factory default values. Backup/Restore All User Files Download Backup Zip File Download the 8305 configuration settings and uploaded files in File Manager (ex., certificates, licenses, and tones) to a backup ZIP file.

  • Page 102: Firmware

    8305 Multi-Interface IP Paging Adapter Reboot Reboot the Device Reboots the device. Firmware Figure 28: Firmware settings. UG-8305-030524 support@algosolutions.com Page 102...
  • Page 103 8305 Multi-Interface IP Paging Adapter Installed Firmware Product Firmware Displays the current firmware on the device. Online Upgrade Check for Firmware Updates Click Check to check for the latest firmware. If the firmware is up to date, Latest Firmware will state Firmware up to date. If your firmware is outdated, the new firmware availability will be listed.
  • Page 104 8305 Multi-Interface IP Paging Adapter Custom Upgrade Method Select a method for firmware upgrades to occur. This can be done From Local Files or From URL. Signed Firmware File Use to upgrade firmware from a local file. To do this: To do this, download the firmware file from https://www.algosolutions.com/firmware-...

  • Page 105: File Manager

    Provisioning and would like to validate against additional certificates, you can upload them here. To install a public CA certificate on the Algo 8305, follow the steps below: 1. Obtain a public certificate from your Certificate Authority (Base64 encoded X.509 .pem, .cer, or .crt).

  • Page 106: System Log

    Folder If you have any challenges with the device and work with the Algo support team to overcome or fix them, the debug folder will be used. The device will generate files containing information about the device and put them in the debug folder.

  • Page 107: Logout

    8305 Multi-Interface IP Paging Adapter 9.10 Logout Log out of the web interface. FCC COMPLIANCE STATEMENT This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 108 Emulates an analog phone. Capable of ring detection and on-hook/off-hook Relay Input Normally open or normally closed dry contact with supervision. Compatible with Algo 1202 Call Button, 1203 Call Switch, 1204 Volume Control, 1205 Audio Interface, or EOL resistor termination.

  • Page 109: Algo Compatible Accessories

    Configuration A pair of wires from the terminal block Relay Input on the back of the 8305 can connect to the center pair of the modular connector at the back of the Call Button. For more details, see the Algo 1202 Installation Sheet.

  • Page 110: 1203 Call Switch

    8305, the 1203 can prompt a single action with one touch, or a continuous action if the button is held. Configuration A pair of wires can be run from the back of the device via a screw output connector to the 8305 via the Relay Input. For more details, check the Algo 1203 Getting Started Sheet.

  • Page 111: Mute Switch

    8305 Multi-Interface IP Paging Adapter 11.2.3 Mute Switch The relay input on the 8305 is also compatible with any third-party switch or button that provides a contact closure (short-circuit) such as a mute switch. Configuration Apply an external switch (short-circuit) across the 8305 Relay Input terminals to enable a "disable" switch to control the device.

  • Page 112: 1204 Volume Control Switch

    Configuration To install the 1204, connect a single twisted pair wire to the Terminal Block Relay Input on the 8305. Once connected, position 10 on the 1204 will match the maximum volume set in the web interface. Volumes set to lower levels will attenuate from the maximum volume.
  • Page 113 8305 Multi-Interface IP Paging Adapter Volume Control Switch Settings Mute On Lowest Setting Enable to mute audio when the volume control switch is turned to the lowest setting (1) Wire Length Set to calibrate impedance for 24 AWG. Multicast Override Multicast Override allows selected multicast zones to override the 1204 Volume Control settings for the selected zones.

  • Page 114: 2507 Ring Detector

    8305 Multi-Interface IP Paging Adapter 11.2.5 2507 Ring Detector The 2507 Ring Detector can detect when a telephone is ringing and activate the 8305 to play a tone or pre-recorded announcement. Configuration Plug an analog telephone into the headset jack on one side of the 2507 Ring Detector and use the other side to connect the to the 8305 using the provided cable.
