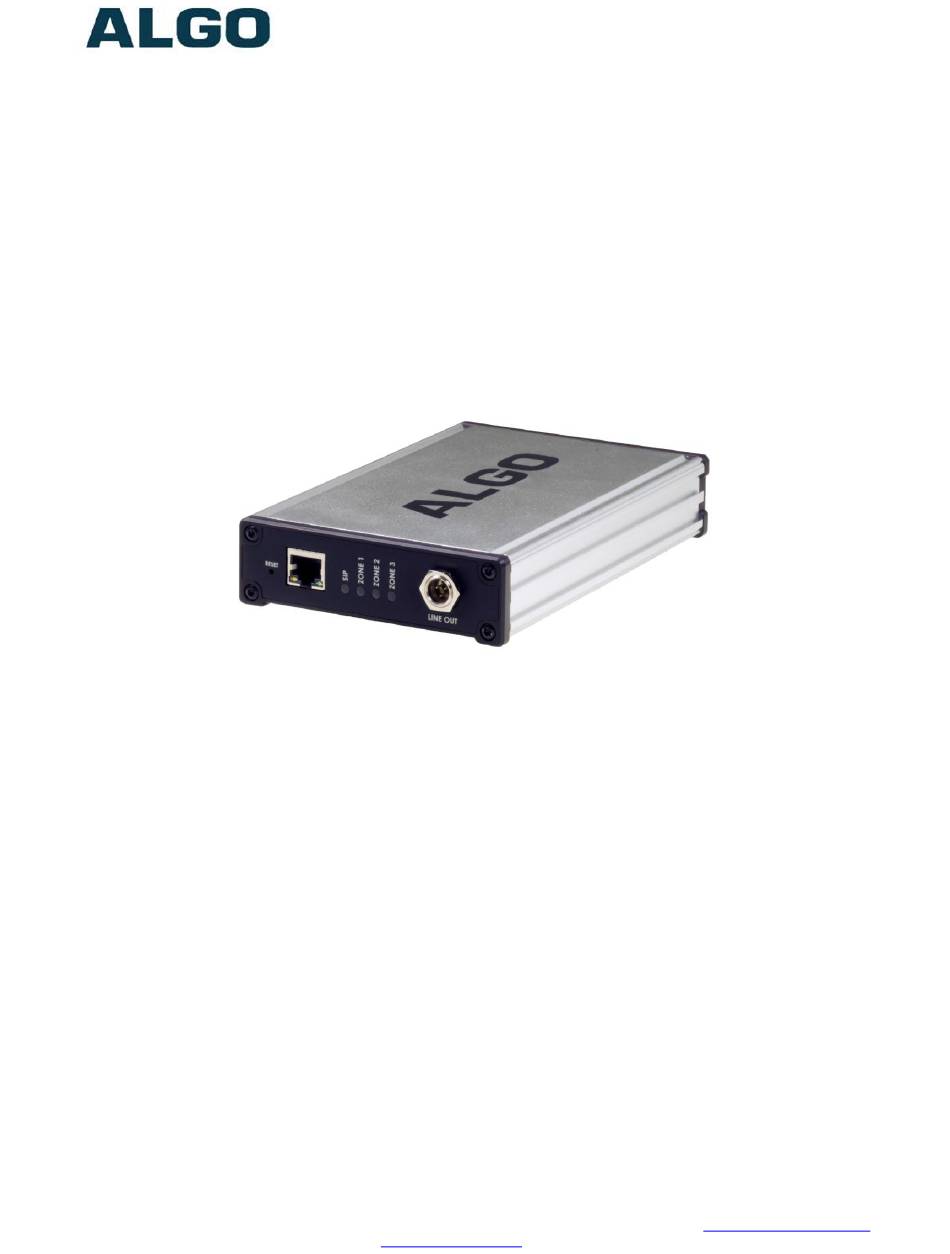

8373 Zone Paging Adapter
Document 91-00071B
05/06/2020
Page 1
FW Version 1.7
User Guide
Order Codes
8373
Algo Communication Products Ltd
4500 Beedie St Burnaby BC Canada V5J 5L2
www.algosolutions.com
Zone Paging Adapter
8373 Zone Paging Adapter (FW 1.7)
(604) 454-3792
support@algosolutions.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8373 and is the answer not in the manual?

Questions and answers

Related Manuals for Algo 8373

Summary of Contents for Algo 8373

  • Page 1 8373 Zone Paging Adapter (FW 1.7) 8373 Zone Paging Adapter FW Version 1.7 User Guide Order Codes 8373 Zone Paging Adapter Document 91-00071B Algo Communication Products Ltd (604) 454-3792 05/06/2020 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 1...

  • Page 2: Table Of Contents

    8373 Zone Paging Adapter (FW 1.7) Table of Contents IMPORTANT SAFETY INFORMATION ........................4 OVERVIEW ................................6 ..............................6 NTRODUCTION ............................7 YPICAL PPLICATIONS SETUP AND INSTALLATION ............................. 8 & T ......................... 8 ETTING TARTED UICK NSTALL ............................... 9 NSTALLATION ........................
  • Page 3 8373 Zone Paging Adapter (FW 1.7) WEB INTERFACE SYSTEM ............................. 45 – M ..........................45 YSTEM AINTENANCE – S ........................... 46 YSTEM YSTEM SPECIFICATIONS ..............................47 FCC COMPLIANCE STATEMENT ..........................48 Document 91-00071B Algo Communication Products Ltd (604) 454-3792 05/06/2020 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com...

  • Page 4: Important Safety Information

    Algo recomienda que la instalación de este producto la realice un electricista calificado.
  • Page 5 Contact Algo for other methods of operational assurance. WET OR OUTDOOR ENVIRONMENTS The 8373 Zone Paging Adapter is intended for dry indoor locations only. For outdoor locations Algo offers weatherproof speakers and strobe lights. CAT5 or CAT6 connection wiring to an IEEE 802.3af compliant network PoE switch must not leave the building perimeter without adequate lightning protection.

  • Page 6: Overview

    SIP-enabled phone system and the traditional paging amplifier. When answering an inbound call, the 8373 can route the call’s audio to the amplifier, via an analog connector. One amplified audio stream can then be fed back into the 8373 and sent to one or more of the three speaker Channels at a time.

  • Page 7: Typical Applications

    Algo IP speakers, strobe lights and paging adapters, in addition to multicast supported IP telephones. The Line Output of the 8373 is connected directly to the dry audio input on the amplifier with an input impedance between 600 Ohm and 10 kOhm.

  • Page 8: Setup And Installation

    10. Make a call to the adapter by dialling its extension from a telephone. A prompt tone will be heard when the 8373 answers – press “1” to call zone 1, which will activate the relay for Channel 1 based on the default settings.

  • Page 9: Installation

    After boot up the blue lights on the front will turn off and the adapter will have obtained an IP address. If there is no DHCP server the 8373 Zone Paging Adapter will default to the static IP address 192.168.1.111.

  • Page 10: Features

    “zoned” paging system. The 8373 can be registered as one or more SIP extensions with the SIP phone system, and will auto-answer inbound calls to these extensions, play a pre-announce tone, and allow voice paging until disconnected.

  • Page 11: Sip Paging: Single Sip Extension

    8373 Zone Paging Adapter (FW 1.7) SIP Paging: Single SIP Extension Up to 50 zones can be assigned on each of the three 8373 Channels. The 8373 will auto-answer an inbound call to the SIP extension, e.g. 1000, and a brief tone will prompt the caller to dial a DTMF key to select the desired zone.

  • Page 12: Sip Paging: 9 Zones Using One Amplifier

    To create more than 3 zones, additional 8373’s may be connected to the single amplifier via the AMP IN on the back of each of the 8373’s. The first 8373 should be assigned as a Multicast Master, and the remainder as Slaves. Each Slave relay channel can then be independently assigned to different paging zones.

  • Page 13: Sip Paging: Using Multicast

    SIP Communication Server. Each of the 3 relay channels on the 8373 can be assigned to any zone, or group of zones, as described in the other examples above, and likewise, each of the other Algo SIP endpoints can be assigned to one or more zones.

  • Page 14: Polycom Tm Group Paging

    The 8373 Zone Paging Adapter has been designed to support Polycom Group Paging. The 8373 Zone Paging Adapter can be added to a Polycom group page so that voice paging is heard over Polycom telephone speakers and overhead paging simultaneously.

  • Page 15: Tls For Sip Signaling And Provisioning

    This is useful for when third-party devices or attackers may try to intercept, replicate, or alter Algo products, and try to connect to the server. TLS protocol will ensure that third parties cannot read/modify any actual data. Previously security was less of a concern because phone systems were on isolated networks, but hosted services are becoming increasingly more common.
  • Page 16 8373 Zone Paging Adapter (FW 1.7) HTTPS Provisioning Provisioning can be secured by setting the ‘Download Method’ to ‘HTTPS’ (under the Advanced Settings > Provisioning tab). This prevents configuration files from being read by an unwanted third-party. This resolves the potential risk of having sensitive data stolen, such as admin passwords and SIP credentials.
  • Page 17 Important: In order for a SIP server to validate the Algo device, an additional certificate has to be manually installed on the 8301. To add this user certificate file use a ‘.pem’...

  • Page 18: Wiring Connections

    The wiring diagram below illustrates one of the most common use cases, where the Line Output of the 8373 is connected directly to the dry audio input on an amplifier with an input impedance between 600 Ohm and 10 kOhm. The amplifier output is then connected back to the 8373 Amp In terminals and the speaker runs get wired to Channel 1, 2 or 3.
  • Page 19 8373 Zone Paging Adapter (FW 1.7) Network Connection (Front) The 8373 provides a RJ45 jack for network connection. A cable run from the switch can be terminated to a modular jack with connection by patch cord, or terminated with a RJ45 plug.

  • Page 20: Blue Led Indicators

    A recessed reset button (RST) next to the Ethernet Jack can only be used to reset the 8373 Zone Paging Adapter at time of power up. To return all settings to a factory default, reboot or power cycle the 8373. Wait until the SIP LED flashes and then press and hold the reset button until the SIP LED begins a double flash pattern.

  • Page 21: Web Interface Status And Login

    Web Interface Status and Login Web Interface login The web interface requires a password which is ‘algo’ by default. This password can be changed using the Admin tab after logging in the first time. Web Interface is accessed by entering the 8373’s IP Address into a web browser.

  • Page 22: Status

    Status The device’s Status page will be available before and after log on. The section can be used to check 8373’s SIP Registration, Call Status, Multicast Mode/Status, Relay Status, Proxy Status, and general MAC, IP, Netmask, Date/Time, and Timezone information.

  • Page 23: Web Interface Basic Settings

    Server. Page Extension This is the SIP extension for the 8373 Zone Paging Adapter. The Page Extension uses "DTMF Selectable Zone" mode. After the Page call is answered, use DTMF to enter a zone number in order to activate the desired relay(s). As an alternative, a unique extension can be assigned per zone in Additional Features >...

  • Page 24: Basic Settings Tab - Features

    8373 Zone Paging Adapter (FW 1.7) Basic Settings Tab – Features Test Tone Select audio file to play over the associated speaker. The file may be played immediately to an associated speaker from the web interface for test purposes using the Play, Loop, and Stop buttons.
  • Page 25 Normalizes the audio level. This ensures audio level heard at the speaker is always at a consistent level, independent of the phone that is used to answer the call. Output Level The following output levels are available, allowing the 8373 to interface with a wide variety of devices: +4dBu 10k (1.23 Vrms) 0dBu 10k (0.775 Vrms)

  • Page 26: Basic Settings Tab - Channels

    Basic Settings Tab - Multicast (Master Settings) Multicast IP Addresses Each 8373 Zone Paging Adapter has its own IP address, and shares a common multicast IP and port number (multicast zone) for multicast packets. The master transmits to a configurable multicast zone, and the slave units listen to all the multicast zones assigned to them.
  • Page 27 1. Multicast IP addresses range: 224.0.0.0/4 (from 224.0.0.0 to 239.255.255.255) 2. Port numbers range: 1 to 65535 3. By default, the 8373 Zone Paging Adapter is set to use the multicast IP address 224.0.2.60 and the port numbers 50000-50008 Make sure that the multicast IP address and port number do not conflict with other services and devices on the same network.

  • Page 28: Basic Settings Tab - Multicast (Master Settings)

    IP values. Multicast Mode (Master/Sender Selected) If master is enabled the 8373 Zone Paging Adapter will broadcast an IP stream when activated in addition to playing the audio. (Note that the 8373 Zone Paging Adapter cannot be both a multicast master and slave simultaneously).

  • Page 29: Basic Settings Tab - Multicast (Slave Settings)

    Polycom Groups configured on the Algo device. If an Algo device is used as a Multicast master, a tone does not have to be set as the Algo master will provide its own tone. Polycom Group Tones can be set in Advanced Settings > Advanced Multicast tab.

  • Page 30: Web Interface Additional Features

    Extension, Authentication ID, and Authentication password. The 8373 will auto-answer any inbound calls received on these numbers and provide a voice paging path and multicast if configured. Note that only a single call can be active at a time.

  • Page 31: Web Interface Advanced Settings

    DHCP is an IP standard designed to make administration of IP addresses simpler. When selected, DHCP will automatically configure IP addresses for each 8373 Zone Paging Adapter on the network. Alternatively the 8373 Zone Paging Adapter can be set to a static IP address.
  • Page 32 8373 Zone Paging Adapter (FW 1.7) VLAN ID Specifies the VLAN to which the Ethernet frame belongs. A 12-bit field specifying the VLAN to which the Ethernet frame belongs. The hexadecimal values of 0x000 and 0xFFF are reserved. All other values may be used as VLAN identifiers, allowing up to 4094 VLANs.

  • Page 33: Advanced Settings Tab - Admin

    Password to log into the 8373 Zone Paging Adapter web interface. You should change the default password algo in order to secure the device on the network. If you have forgotten your password, you will need to perform a reset using the Reset Button in order to restore the password (as well as all other settings) back to the original factory default conditions.
  • Page 34 Log Level Use on the advice of Algo technical support only. Log Method Allows the 8373 Zone Paging Adapter to write to external Syslog server if the option for external (or both) is selected. Log Server If “Network” or “Both” is selected this is the address of the Syslog server on the network.

  • Page 35: Advanced Settings Tab - Time

    8373 Zone Paging Adapter (FW 1.7) SNMP Support Additional SNMP support is anticipated for future, but the 8373 Zone Paging Adapter will respond to a simple status query for automated supervision. Contact Algo technical support for more information. System Integrity Checking This feature verifies installed system packages to ensure they have not been tampered with by running ‘Perform Check’.

  • Page 36: Advanced Settings Tab - Provisioning

    This will prevent unauthorized re-configuration of the device if DHCP is used. Provisioning allows installers to pre-configure 8373 Zone Paging Adapter units prior to installation on a network. It is typically used for large deployments to save time and ensure consistent setups.
  • Page 37 Since all the necessary settings can be included in this file, the 8373 will be ready to work immediately after the configuration file is downloaded. The MAC address of each 8373 can be found on the back label of the unit.

  • Page 38: Advanced Settings Tab - File Manager

    Guide. Tone Files Included in Memory The 8373 Zone Paging Adapter includes several pre-loaded audio files that can be selected to play for various events. The web interface allows selection of the tone file and also the ability to play it immediately over the speaker for testing. Files may also be deleted or renamed.

  • Page 39: Advanced Settings Tab - Advanced Audio

    8373 Zone Paging Adapter (FW 1.7) Advanced Settings Tab – Advanced Audio Dynamic Range Compression (DRC) If enabled, compresses the dynamic range of page audio to increase loudness. Dynamic Range Compression Gain Higher compression gain increases distortion. Jitter Buffer Range The jitter buffer removes the jitter in arriving network packets by temporarily storing them.

  • Page 40: Advanced Settings Tab - Advanced Sip

    SIP Outbound Support (RFC 5626) Enable this option to support best networking practices according to RFC 5626. This option should generally be enabled if the Algo device is being registered with a hosted server or if TLS is being used for SIP Transportation.
  • Page 41 Backup Server #2 If backup server #1 is unreachable the 8373 Zone Paging Adapter will attempt to register with the 2nd backup server. If enabled, the 8373 will always attempt to register with the highest priority server. Document 91-00071B...
  • Page 42 8373 Zone Paging Adapter (FW 1.7) Polling Intervals (seconds) Time period between sending monitoring packets to each server. Non-active servers are always polled, and active server may optionally be polled (see below). Poll Active Server Explicitly poll current server to monitor availability. May also be handled automatically by other regular events, so can be disabled to reduce network traffic.

  • Page 43: Advanced Settings Tab - Advanced Multicast

    When using multicast with other third-party devices that have a delay in their audio path, the audio on the 8373 may be heard slightly earlier than on these other devices. By addingaudio delay up to one second, the 8373 may be synchronized with other speakers or telephones that have greater latency.
  • Page 44 Settings > Features tab. Unique paging tones may be revised for any given slave zone in the table above. Slave Mode: When an Algo device is the multicast master, a page tone will play on the slave device, so it is recommended to set the slave tone to “None”. If a page is received from a non-Algo device that doesn’t send a tone, a tone can be inserted on the slaves...
  • Page 45 Restore Configuration File Restore settings from a backup file. Restore Configuration to Defaults Resets all 8373 Zone Paging Adapter device settings to factory default values. Download Backup Zip File Saves the device settings (configuration) and all the files in File Manager: certificates, licenses, and tones to a backup zip file.
  • Page 46 How to upgrade the 8373 Zone Paging Adapter Firmware 1. From the top menu, click on System, then Maintenance. 2. In the Upgrade section, click on Choose File and select the 8373 Zone Paging Adapter firmware file to upload. Note that both the FW firmware and MD5 checksum files must be loaded.
  • Page 47 8373 Zone Paging Adapter (FW 1.7) Specifications Power Input: PoE (IEEE 802.3af Class 0) 48V, 12.95W (Max 4W - Idle nominal 2W) SIP: SIP Extensions: • 50 Page SIP Signalling/Transport Protocols: UDP, TCP, TLS, RTP, SRTP Multicast & Third-Party Compatibility:...
  • Page 48 8373 Zone Paging Adapter (FW 1.7) Weight (Product): 0.95 lbs (0.4 kg) Weight (Shipping): 1.7 lbs (0.7 kg) Compliance: RoHS, CE, FCC Class A, CISPR 22 Class A, CISPR 24, CSA/UL (USA & Canada), EN60950 FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
