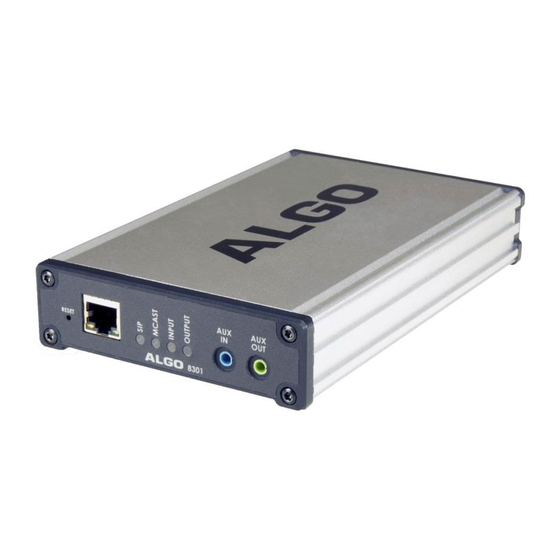

Algo 8301 User Manual

Paging adapter & scheduler fw version 1.7
Hide thumbs Also See for 8301:
Table of Contents

Advertisement

Quick Links

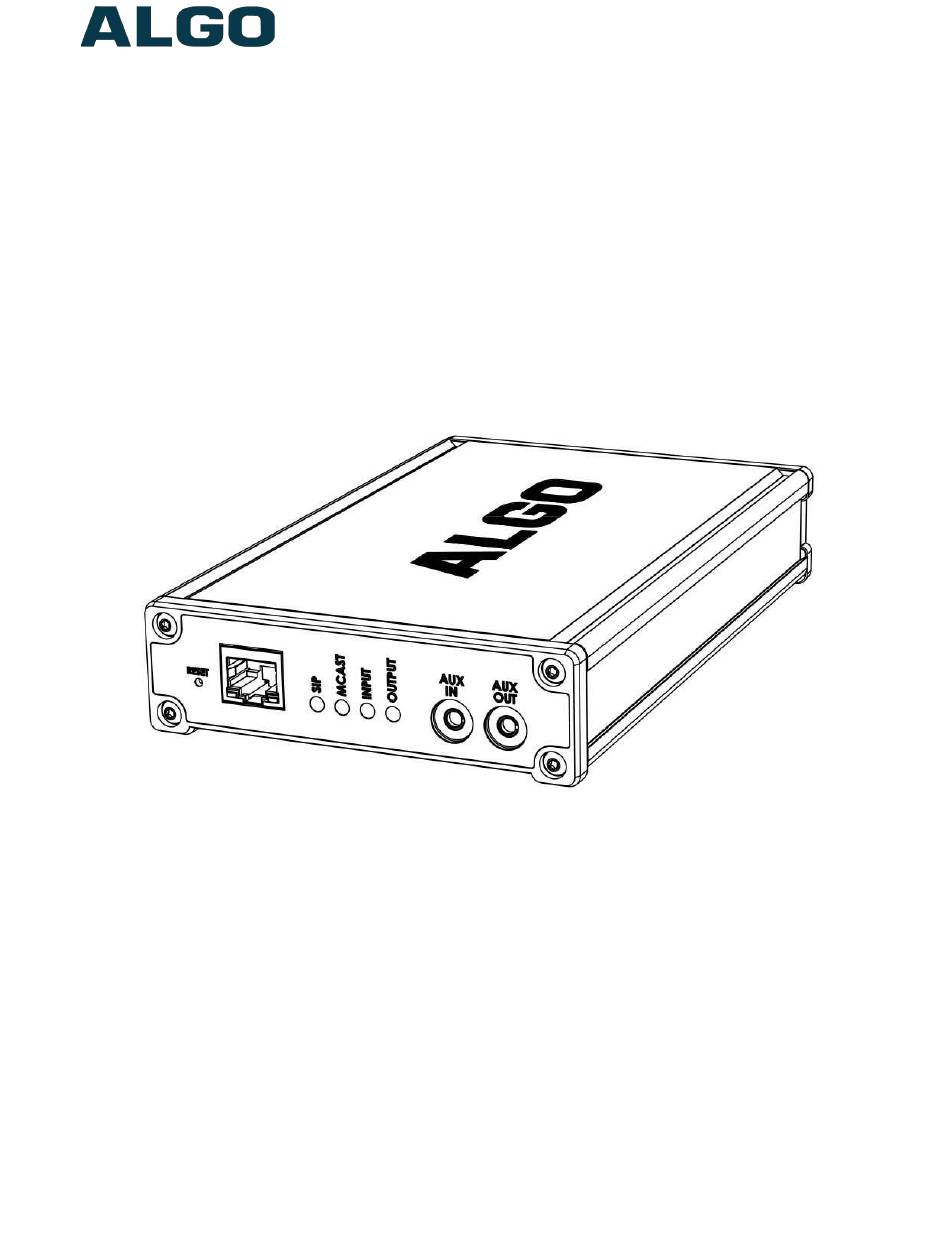

8301 Paging Adapter & Scheduler
Document 90-00070B
04/15/2020
Page 1
FW version 1.7
User Guide
Order Codes
8301
Algo Communication Products Ltd
4500 Beedie St Burnaby BC Canada V5J 5L2
www.algosolutions.com
8301 Paging Adapter & Scheduler FW 1.7
Paging Adapter & Scheduler
(604) 454-3792
support@algosolutions.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8301 and is the answer not in the manual?

Questions and answers

Related Manuals for Algo 8301

Summary of Contents for Algo 8301

  • Page 1 8301 Paging Adapter & Scheduler FW 1.7 8301 Paging Adapter & Scheduler FW version 1.7 User Guide Order Codes 8301 Paging Adapter & Scheduler Document 90-00070B Algo Communication Products Ltd (604) 454-3792 04/15/2020 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com...

  • Page 2: Table Of Contents

    8301 Paging Adapter & Scheduler FW 1.7 Table of Contents IMPORTANT SAFETY INFORMATION....................... 4 OVERVIEW..............................6 ..............................6 NTRODUCTION ..............................7 PPLICATIONS SETUP AND INSTALLATION........................8 & T ....................... 8 ETTING TARTED UICK NSTALL ..............................9 NSTALLATION ........................9 ROGRAMMING AND ONFIGURATION FEATURES..............................
  • Page 3 8301 Paging Adapter & Scheduler FW 1.7 WEB INTERFACE ADVANCED SETTINGS....................48 ........................48 DVANCED ETTINGS ETWORK – A ........................50 DVANCED ETTINGS DMIN – U ........................53 DVANCED ETTINGS SERS – T .......................... 53 DVANCED ETTINGS – P ......................54...

  • Page 4: Important Safety Information

    If the product is installed beyond the building perimeter or used in an inter-building application, the wiring connections must be protected against over voltage / transient. Algo recommends that this product be installed by a qualified electrician.
  • Page 5 Contact Algo for other methods of operational assurance. WET OR OUTDOOR ENVIRONMENTS The 8301 Paging Adapter & Scheduler is intended for dry indoor locations only. For outdoor locations Algo offers weatherproof speakers and strobe lights. CAT5 or CAT6 connection wiring to an IEEE 802.3af compliant network PoE switch must not leave the building perimeter without adequate lightning protection.

  • Page 6: Overview

    1GB of memory is available in the device to store audio files, which can be played via the 8301 Line Out and, if desired, as a multicast to other Algo speakers, paging adapters and strobes.

  • Page 7: Applications

    Algo IP speakers, strobe lights and paging adapters, in addition to multicast supported IP telephones. The Line output of the 8301 is connected directly to the dry audio input on an amplifier with an input impedance between 600 Ohm and 10 kOhm.

  • Page 8: Setup And Installation

    3. Connect the adapter Line Out to an amplifier using the mini-XLR connector or pluggable terminal block. 4. Access the 8301 Paging Adapter & Scheduler web page by entering the IP address into a browser (e.g. Chrome, Firefox or Edge) and login using the default password algo .

  • Page 9: Installation

    The 8301 is configurable using the web interface or provisioning features. After boot up, the blue lights on the front will turn off and the adapter will have obtained an IP address. If there is no DHCP server the 8301 will default to the static IP address 192.168.1.111.

  • Page 10: Features

    8301 Paging Adapter & Scheduler FW 1.7 Features SIP Paging: One 8301 The 8301 Paging Adapter & Scheduler can be registered as a third party SIP extension with a hosted or enterprise Communications Server supporting 3 party SIP endpoints. To register the adapter with the SIP server, use the Basic Settings > SIP tab in the web interface to enter the Communication Server IP address, extension, username, and password.

  • Page 11: Sip Paging : Multiple Algo Sip Endpoints (Using Individual Sip Extensions )

    Algo SIP endpoints, but each endpoint can also be called individually or generate a call when appropriately configured. An Algo SIP endpoint configured as a SIP Multicast Slave will give its highest priority to a page using its SIP extension.
  • Page 12 8301 Paging Adapter & Scheduler FW 1.7 • Zone 6 • Music There are two options for Paging to multiple zones: ‘DTMF Selectable Mode’ or via multiple page extensions. The ‘DTMF Selectable Mode’ offers a dynamic page zone selection and requires only the Master device to have a registered SIP Extension.

  • Page 13: Sip Ring Event

    Set Monitoring Mode to ‘Monitor "Ring" event on registered SIP extension’ on the Basic Settings > SIP tab. When a call is made to the SIP extension the 8301 Paging Adapter & Scheduler will play the selected audio file from memory. Often, the 8301 will be part of a hunt group or ring group to ring in conjunction with a telephone.

  • Page 14: Tls For Sip Signaling And Provisioning

    This is useful for when third-party devices or attackers may try to intercept, replicate, or alter Algo products, and try to connect to the server. TLS protocol will ensure that third parties cannot read/modify any actual data. Previously security was less of a concern because phone systems were on isolated networks, but hosted services are becoming increasingly more common.
  • Page 15 8301 Paging Adapter & Scheduler FW 1.7 HTTPS Provisioning Provisioning can be secured by setting the ‘Download Method’ to ‘HTTPS’ (under the Advanced Settings > Provisioning tab). This prevents configuration files from being read by an unwanted third-party. This resolves the potential risk of having sensitive data stolen, such as admin passwords and SIP credentials.
  • Page 16 8301 Paging Adapter & Scheduler FW 1.7 SIP Signaling (and RTP Audio) SIP signalling is secured by setting ‘SIP Transportation’ to ‘TLS’ (under the Advanced Settings > Advanced SIP tab). Setting it to ‘TLS’ ensures that the SIP traffic will be encrypted.
  • Page 17 Important: In order for a SIP server to validate the Algo device, an additional certificate has to be manually installed on the 8301. To add this user certificate file use a ‘.pem’ filetype extension and have the file named ‘sipclient’. This is done by manually adding a file named ‘sipclient.pem’, which contains a device certificate and private key, to the...

  • Page 18: Wiring Connections

    Line Output of the 8301 is connected directly to the dry audio input on an amplifier with an input impedance between 600 Ohm and 10 kOhm. The 8301 output level can be adjusted to match the amplifier’s input specification.
  • Page 19 1204 Volume Control Switch Install the 1204 by connecting a single pair twisted wire to its terminal block (not polarity sensitive) and wire it to the Relay Input on the 8301. For more details check the Algo 1204 Getting Started Sheet.
  • Page 20 8301 Paging Adapter & Scheduler FW 1.7 1205 Audio Interface Two pairs of wires connect the 1205 Audio Interface to the 8301. One pair is for balanced audio and one pair is for communicating the rotary switch position. Connect the 8301 Relay Input switch terminals of the 1205 Audio Interface to the “RELAY IN”...
  • Page 21 8301 Paging Adapter & Scheduler FW 1.7 Network Connection The 8301 provides a RJ45 jack for network connection. A cable run from the switch can be terminated to a modular jack with connection by patch cord, or terminated with a RJ45 plug.

  • Page 22: Blue Led Indicators

    A recessed reset button (RST) next to the Ethernet Jack can only be used to reset the 8301 Paging Adapter & Scheduler at time of power up. To return all the settings to the factory default for the 8301, reboot or power cycle the 8301. Wait until the SIP LED flashes and then press and hold the reset button until the SIP LED begins a double flash pattern.

  • Page 23: Web Interface Status And Login

    Web Interface Status and Login Web Interface Login The web interface requires a password which is ‘algo’ by default. This password can be changed in the Admin tab after logging in the first time. Web Interface is accessed by entering 8301’s IP Address into the web browse.

  • Page 24: Status

    The device’s Status page will be available before and after log on. The section can be used to check 8301’s SIP Registration status of the SIP extensions, Call Status, Proxy Status, Multicast Mode/Status, and general MAC, IP, Netmask, and Date/Time information.

  • Page 25: Web Interface Basic Settings

    8301 Paging Adapter & Scheduler FW 1.7 Web Interface Basic Settings Basic Settings Tab – SIP SIP Server information and Credentials should be obtained from your telephone system administrator or hosted account provider. After saving the settings, see the Status tab to confirm the registration was successful.
  • Page 26 This is the SIP extension for the 8301’s Ring parameter. Page Extension This is the SIP extension for the 8301’s Page parameter. The device will auto-answer any inbound call received on this extension and provide a voice paging path (and multicast if configured).

  • Page 27: Basic Settings Tab - Features

    8301 Paging Adapter & Scheduler FW 1.7 Basic Settings Tab – Features Ring/Alert Tone Select an audio file to play when a ring event is detected on the SIP Ring extension. The audio file may be played immediately to an associated speaker from the web interface for test purposes using the Play, Loop, and Stop buttons.
  • Page 28 8301 Paging Adapter & Scheduler FW 1.7 Ring/Alert Volume Set speaker volume for SIP Ring event. This setting is an amplifier gain control and the output level will also depend on the levels recorded into the source audio file played from memory.
  • Page 29 Normalizes the audio level. This ensures audio level heard at the speaker is always at a consistent level, independent of the phone that is used to answer the call. ‘Line Out’ Analog Output Level The following output levels are available, allowing the 8301 to interface with a wide variety of devices: +4dBu 10k (1.23 Vrms) 0dBu 10k (0.775 Vrms)

  • Page 30: Basic Settings Tab - Multicast

    1. Multicast IP addresses range: 224.0.0.0/4 (from 224.0.0.0 to 239.255.255.255) 2. Port numbers range: 1 to 65535 3. By default, the 8301 Paging Adapter & Scheduler is set to use the multicast IP address 224.0.2.60 and the port numbers 50000-50008 Make sure that the multicast IP address and port number do not conflict with other services and devices on the same network.

  • Page 31: Basic Settings Tab - Multicast (Master Settings)

    8301 Paging Adapter & Scheduler FW 1.7 Basic Settings Tab – Multicast (Master Settings) Note: See (Advanced Settings > Advanced Multicast) section for more information on populated IP values. Document 90-00070B Algo Communication Products Ltd (604) 454-3792 04/15/2020 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com...
  • Page 32 8301 Paging Adapter & Scheduler FW 1.7 Multicast Mode (Master/Sender Selected) If master mode is enabled the 8301 will broadcast an IP stream when activated in addition to playing the audio. (Note that the 8301 cannot be both a multicast Master and Slave simultaneously).
  • Page 33 8301 Paging Adapter & Scheduler FW 1.7 5. Press DTMF Extension *11 for Zone 11… Note: DTMF codes for zones 10 and higher start with an “*” Zone Selection Tone Only visible when ‘Zone Selection Mode’ is set to ‘DTMF Selectable Zone’. The tone played over the phone to prompt the user to select a zone to multicast to.

  • Page 34: Basic Settings Tab - Multicast (Slave Settings)

    Basic Settings Tab – Multicast (Slave Settings) Multicast Mode (Slave Selected) If Slave mode is enabled the 8301 will activate when receiving a multicast message. It will mimic the audio stream, but use local volume settings (‘Page Speaker Volume’ in Basic Settings >...
  • Page 35 Polycom Groups configured on the Algo device. If an Algo device is used as a Multicast master, a tone does not have to be set as the Algo master will provide its own tone. Polycom Group Tones can be set in Advanced Settings > Advanced Multicast tab.

  • Page 36: Web Interface Additional Features

    Additional Features Tab – Input/Output Relay Input Mode The input relay to the 8301 Paging Adapter & Scheduler can be activated by any normally open or normally closed switch. Algo offers the 1202 Call Button, the 1203 Call Switch, 1204 Volume Control Switch or the 1205 Audio Interface with supervision. Via supervision settings, notification actions can also be triggered if the input switch is disconnected.
  • Page 37 While the 8301 can be configured to play the audio file only once, it can also be enabled to play it continuously with just one touch on the 1202 Call Button. The action can then be stopped via the smaller oval cancel button located below the main call button on the 1202 Call Button.
  • Page 38 Call’, or ‘Make SIP Call with Tone’. Action – Play Tone When the 8301 input is triggered, a tone or a pre-recorded audio file will play over the speaker via the Line Out, or multicast if enabled. This function can be used to request support/assistance in service or retail environments, notify about an emergency at a specific location in medical or educational facilities, or sound an alarm during an intrusion.
  • Page 39 Maximum Call Duration Action – Make SIP Call with Tone When the 8301 input is triggered, a private call can be generated to a pre-configured phone extension with a pre-recorded message. For instance, a call to a supervisor’s phone notifying about an emergency or intrusion at some location.
  • Page 40 8301 Paging Adapter & Scheduler FW 1.7 Maximum Tone Duration Select the maximum tone duration. The tone will be terminated once the maximum time is reached. Can be configured if ‘Play Tone’ or ‘Make SIP Call with Tone’ actions are enabled.

  • Page 41: Additional Features Tab - Emergency Alerts

    8301 Paging Adapter & Scheduler FW 1.7 Additional Features Tab – Emergency Alerts Emergency Alerts allow for an announcement to be triggered & latched by calling a pre- configured Emergency extension and hanging up. The announcement can be chosen to play once or to play until cancel.
  • Page 42 8301 Paging Adapter & Scheduler FW 1.7 notifications (e.g. evacuation, lock down, medical emergency, etc.), allowing staff to quickly dial a pre-configured number under such circumstances. To configure an emergency alert extension click “Enable” beside the target announcement and enter the Extension, Authentication ID, and Authentication password.

  • Page 43: Additional Features Tab - More Page Extensions

    Extension, Authentication ID, and Authentication password. The 8301 will auto-answer any inbound calls received on these numbers and provide a voice paging path and multicast if configured. Note that only a single call can be active at a time.

  • Page 44: Additional Features Tab - More Ring Extensions

    8301 Paging Adapter & Scheduler FW 1.7 Additional Features Tab – More Ring Extensions Up to 10 SIP Ring extensions can be registered. To configure additional ring extensions, click “Enable” beside the target extension and enter the Extension, Authentication ID, and Authentication Password.

  • Page 45: Web Interface Scheduler

    Web Interface Scheduler Scheduler Tab – Calendar The Scheduler can be deployed along with Algo IP speakers, paging adapters and strobes to provide bell scheduling and automated announcements. Once a bell schedule has been configured in the Schedules tab (see below), it can be added to the desired dates on the calendar.

  • Page 46: Scheduler Tab - Schedules

    Specify the event Description, Time, Audio files to be played, and the Page Zone. The chosen audio file will be played locally (e.g. amplifier connected to the 8301) and/or over the network via multicast to all other Algo endpoints (e.g. 8186, 8188, 8180, 8128, etc.) or RTP multicast compatible third-party equipment that are configured as Slaves on...

  • Page 47: Scheduler Tab - Data

    8301 Paging Adapter & Scheduler FW 1.7 Scheduler Tab – Data Download Allows a back up of the schedule with events, times and calendar dates to be downloaded for backup purposes. Note that this backup is independent from the rest of the configuration backup on the device.

  • Page 48: Web Interface Advanced Settings

    Protocol DHCP is an IP standard designed to make administration of IP addresses simpler. When selected, DHCP will automatically configure IP addresses for each 8301 on the network. Alternatively, the 8301 can be set to a static IP address. Document 90-00070B...
  • Page 49 8301 Paging Adapter & Scheduler FW 1.7 VLAN Mode Enables or Disables VLAN Tagging. VLAN Tagging is the networking standard that supports Virtual LANs (VLANs) on an Ethernet network. The standard defines a system of VLAN tagging for Ethernet frames and the accompanying procedures to be used by bridges and switches in handling such frames.

  • Page 50: Advanced Settings Tab - Admin

    Password to log into the 8301 Paging Adapter & Scheduler web interface. You should change the default password algo in order to secure the device on the network. If you have forgotten your password, you will need to perform a reset using the Reset Button in order to restore the password (as well as all other settings) back to the original factory default conditions.
  • Page 51 Log Level Use on the advice of Algo technical support only. Log Method Allows the 8301 to write to external Syslog server if the option for external (or both) is selected. Log Server If “Network” or “Both” is selected this is the address of the Syslog server on the network.
  • Page 52 Syn-Apps SA-Announce paging application converts unicast streams to multicast and delivers them to the target endpoints. The feature can only be used on the 8301 when Multicast Master Mode is disabled (set to ‘None’) in the Basic Settings > Multicast tab.

  • Page 53: Advanced Settings Tab - Users

    8301 Paging Adapter & Scheduler FW 1.7 Advanced Settings Tab – Users A separate login account with limited access can be set up. The user will only be able to modify the device scheduler. Advanced Settings Tab – Time Network time is used for logging events into memory for troubleshooting.

  • Page 54: Advanced Settings Tab - Provisioning

    8301 Paging Adapter & Scheduler FW 1.7 NTP Time Server Source When “Use DHCP Option 42” is chosen, if an NTP Server address is provided via the DHCP Option 42, that NTP Server will be used instead of the 4 mentioned above.
  • Page 55 “Provisioning Server”: TFTP (Trivial File Transfer Protocol), FTP, HTTP, or HTTPS. For example, the 8301 configuration files can be automatically downloaded from a TFTP server using DHCP Option 66. This option code (when set) supplies a TFTP boot server address to the DHCP client to boot from.

  • Page 56: Advanced Settings Tab - File Manager

    8301 will be ready to work immediately after the configuration file is downloaded. The MAC address of each 8301 can be found on the back label of the unit. For more Algo SIP endpoint provisioning information, see: www.algosolutions.com/provision...

  • Page 57: Advanced Settings Tab - Advanced Audio

    Guide. Tone Files Included in Memory The 8301 Paging Adapter & Scheduler includes several pre-loaded audio files that can be selected to play for various events. The web interface allows selection of the file and also the ability to play the it immediately over the speaker for testing (available in Basic Settings >...
  • Page 58 8301 Paging Adapter & Scheduler FW 1.7 Dynamic Range Compression Gain Higher compression gain increases distortion. Jitter Buffer Range The jitter buffer removes the jitter in arriving network packets by temporarily storing them. This process corrects the inconsistent delays on the network. It is recommended to use the lowest value.

  • Page 59: Advanced Settings Tab - Advanced Sip

    8301 Paging Adapter & Scheduler FW 1.7 Advanced Settings Tab – Advanced SIP SIP Transportation Which transport layer protocol to use for SIP messages. Setting ‘SIP Transportation’ to ‘TLS’, ensures the encryption of SIP traffic. SIPS Scheme Only visible when ‘SIP Transportation’ set to ‘TLS’. Enabling SIPS Scheme requires the SIP connection from endpoint to endpoint to be secure.
  • Page 60 If enabled, the 8301 will always attempt to register with the highest priority server. Backup Server #2 If backup server #1 is unreachable the 8301 will attempt to register with the 2nd backup server. If enabled, the 8301 will always attempt to register with the highest priority server.
  • Page 61 Polling Method SIP message used to poll servers to monitor availability. Keep-alive Method If Double CRLF is selected the 8301 will send a packet every 30 seconds (recommended value) to maintain connection with the SIP Server if behind NAT. Keep-alive Interval Interval in seconds that the CRLF message should be sent.

  • Page 62: Advanced Settings Tab - Advanced Multicast

    When using multicast with other third-party devices that have a delay in their audio path, the audio on the 8301 may be heard slightly earlier than on these other devices. By adding audio delay up to one second, the 8301 may be synchronized with other speakers or telephones that have greater latency.
  • Page 63 Settings > Features tab. Unique paging tones may be revised for any given zone in the table above. Slave Mode: When an Algo device is the multicast Master, a page tone will play on the Slave device, so it is recommended to set the Slave tone to “None”. If a page is received from a non-Algo device that doesn’t send a tone, a tone can be inserted on the Slaves...

  • Page 64: Web Interface System

    Restore settings from a backup file. Restore Configuration to Defaults Resets all 8301 Paging Adapter & Scheduler device settings to factory default values. Download Backup Zip File Saves the device settings (configuration) and all the files in File Manager: certificates, licenses, and tones to a backup zip file.

  • Page 65: System Tab - System Log

    How to upgrade the 8301 Paging Adapter & Scheduler Firmware 1. From the top menu, click on System, then Maintenance. 2. In the Upgrade section, click on Choose File and select the 8301 firmware file to upload. Note that both FW firmware and MD5 checksum files must be loaded.

  • Page 66: Specifications

    Audio Memory: 1 GByte audio storage Input/Output: Relay Input: Normally open or normally closed dry contact supervision using Algo 1202 Call Button, 1203 Call Switch, 1204 Volume Control, 1205 Audio Interface or EOL resistor termination Relay Output: Max 30 V 50 mA (normally open)

  • Page 67: Fcc Compliance Statement

    8301 Paging Adapter & Scheduler FW 1.7 Relay Input Current Active Idle Tamper Draw Detection Normally Open >4mA <4mA Thresholds: Normally Open with Supervision >20mA 4-20mA <4mA Normally Closed <4mA >4mA Normally Closed with 4-20mA >20mA <4mA Supervision Nominal 12V source, current limited to 40mA Typical supervision resistor value = 1k ohm Environmental &...
