Specifications:

Signalling Output: Nominal 1.2 Vpp sinewave
8kHz +/-2% modulated 1 lb/s +/-2%
Conversion:
Off-hook, DTMF
Loop Limit:
1230 ohm loop or 24dB attenuation 8kHz
Line Current:
Limited to 38 mA maximum
Test set current:
Limited to 20mA nominal

Ordering Information:

5001-00
Adapter Only
(Includes Connector cord to test set)
5001-78
Adapter with 5 foot ABON cord
5001-79
Adapter with 5 foot ABON cord + modular "K-PLUG"
Algo Communication Products Ltd.
4500 Beedie St.reet, Burnaby, B.C. Canada V5J 5L2
Tel: (604) 438-3333
Fax: (604) 437-5726
DC500100-03
http://www.algo.ca

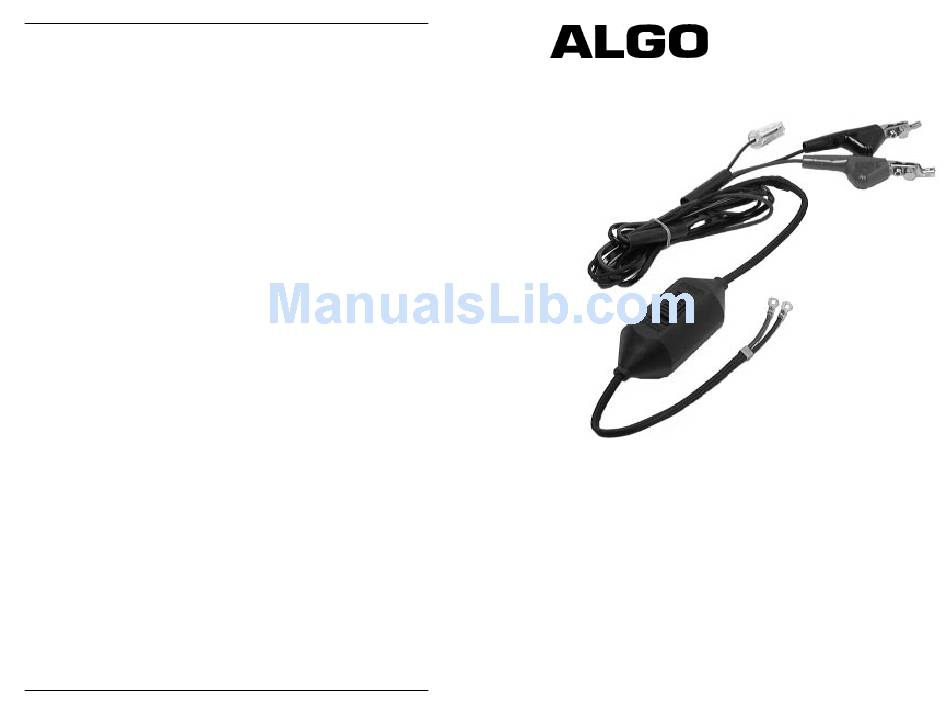

5001
P-Phone Adapter

User Guide

Algo Communication Products Ltd.
4500 Beedie Street
Burnaby, B.C. Canada V5J 5L2
Tel: (604) 438-3333
Fax: (604) 437-5726
http://www.algo.ca

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5001 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Algo 5001

  • Page 1: User Guide

    Adapter with 5 foot ABON cord 5001-79 Adapter with 5 foot ABON cord + modular "K-PLUG" 5001 P-Phone Adapter User Guide Algo Communication Products Ltd. 4500 Beedie Street Burnaby, B.C. Canada V5J 5L2 Tel: (604) 438-3333 Fax: (604) 437-5726 http://www.algo.ca Algo Communication Products Ltd.
  • Page 2 About the 5001 P-Phone Adapter Hanging Up The 5001 Adapter is line powered and enables the use of most analog test With the adapter connected to the CO, switch the test set from TALK to sets on digital centrex lines (also known as EBS, MBS, or P-Phone). When MONITOR.
