Paging Adapter Amplifier Integration Guide
Algo Support, 604-454-3792
support@algosolutions.com
1
www.algosolutions.com
2019-06-20 v1.5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8301 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Algo 8301

Summary of Contents for Algo 8301

  • Page 1 Paging Adapter Amplifier Integration Guide Algo Support, 604-454-3792 support@algosolutions.com www.algosolutions.com 2019-06-20 v1.5...

  • Page 2: Table Of Contents

    Table of Contents ➢ Paging Adapter Hardware Interface ▪ 8301 Paging Adapter & Scheduler………………….………………...5 ▪ 8373 Zone Paging Adapter………………………………….………..6 ▪ Hybrid IP & Analog Infrastructure Integration……………………...8 ➢ Paging Amplifier Wiring Diagrams AT&T/Lucent PagePal with 8301……………………………..………10 ▪ ▪ AT&T PagePac 20 PowerMate ……………………………………...…11 ▪...
  • Page 3 ➢ Paging Amplifier Wiring Diagrams (continued) ▪ Valcom V-2006a with 8301……………………………………………..18 ▪ Valcom V-9940 with 8301……………………………………………….19 ▪ Valcom V-9941A with 8301 ……………………………………………..20 ▪ Valcom V-1109RTVA with 8301……………………………..………… 21 Valcom V-1094A with 8301…………………………………….………. 22 ▪ ▪ Valcom V-2924A with 8301 ……………………………………………..23 ▪...

  • Page 4: Paging Adapter Hardware Interface

    Paging Adapter Hardware Interface...

  • Page 5: 8301 Paging Adapter & Scheduler

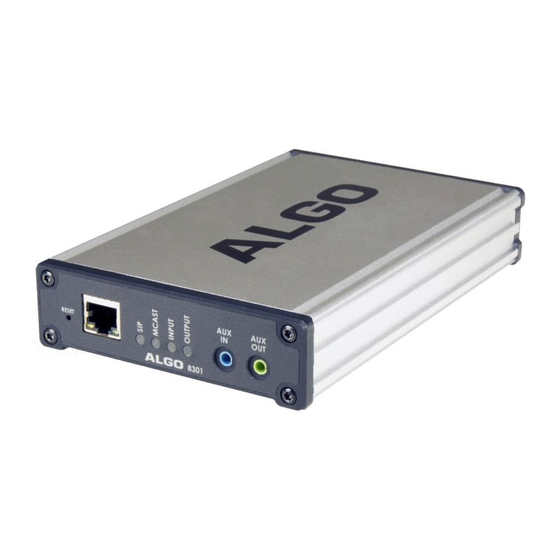

    8301 Paging Adapter & Scheduler ➢ SIP (50 Page ext., 10 Music Input Emergency Alert ext. & 10 Ring ext.) ➢ Multicast Send & Receive ➢ Scheduler for Automated Tones & Announcements ➢ 1GB Memory...

  • Page 6: 8373 Zone Paging Adapter

    8373 Zone Paging Adapter ➢ SIP (50 Page ext.) ➢ Switches up to 280W using one 70V amplifier ➢ Multicast Send & Receive...
  • Page 7 8373 Zone Paging Adapter...

  • Page 8: Hybrid Ip & Analog Infrastructure Integration

    Hybrid IP & Analog Infrastructure Integration SIP Call Simultaneous Line Level Output to Amplifier Simultaneous Multicast To Speakers, Strobes & Phones Analog Amplifier & Speakers...

  • Page 9: Paging Amplifier Wiring Diagrams

    Paging Amplifier Wiring Diagrams...

  • Page 10: At&T/Lucent Pagepal With 8301

    AT&T/Lucent PagePal Set the PagePal to DL (Dry Loop) mode using the switch in the front On the 8301 web interface, go to Basic Settings -> Features and set the 'Line Out' Analog Output Level to “0dBm 600 ohm (0.775 Vrms)”.

  • Page 11: At&T Pagepac 20 Powermate

    8301 Installation Example with AT&T PagePac 20 PowerMate On the 8301 web interface, go to Basic Settings -> Features and set the 'Line Out' Analog Output Level to “0dBm 600 ohm (0.775 Vrms)”.

  • Page 12: Bogen Tpu-35/60/100/250 With 8301

    8301 Installation Example with Bogen TPU-35/60/100/250 On the 8301 web interface, go to Basic Settings -> Features and set the 'Line Out' Analog Output Level to “0dBm 600 ohm (0.775 Vrms)”.

  • Page 13: Bogen Tpu-35/60/100/250 With 8373

    8373 Installation Example with Bogen TPU-35/60/100/250 The 8373 is designed to provide a Line Out for audio to a traditional amplifier. Loop the power of the amplifier into the 8373 to switch up to 280w into 1-3 audio channels. The speaker runs will be connected to the channel outputs on the 8373.

  • Page 14: Bogen Pcm2000 With 8301

    Before connecting, power off PCM2000 system. Set the dip switch as demonstrated above (CC switch down and P/P switch middle) On the 8301 web interface, go to Basic Settings -> Features and set the 'Line Out' Analog Output Level to “0dBm 600 ohm (0.775 Vrms)”.

  • Page 15: Bogen C35/C60/C100 With 8301

    8301 Installation Example with Bogen C35/C60/C100 On the 8301 web interface, go to Basic Settings -> Features and set the 'Line Out' Analog Output Level to “0dBm 600 ohm (0.775 Vrms)”.

  • Page 16: Valcom V-2001A With 8301

    Page R inputs on the Valcom V-2001A Amplifier via a 2- wire connection to the terminal strip. On the 8301 web interface, go to Basic Settings -> Features and set the 'Line Out' Analog Output Level to “-10dBm 600 ohm (0.245 Vrms)”.

  • Page 17: Valcom V-2003A With 8301

    10, 7, 4 in the off position (up position). SW2 in the off position. On the 8301 web interface, go to Basic Settings -> Features and set the 'Line Out' Analog Output Level to “-10dBm 600 ohm (0.245 Vrms)”. To play DTMF tones and control the zones, make sure to enable Generate In-Band DTMF...
  • Page 18 Set the he Battery Feed switch to off for Page Port access on the V2006a On the 8301 web interface, go to Basic Settings -> Features and set the 'Line Out' Analog Output Level to “-10dBm 600 ohm (0.245 Vrms)”.
  • Page 19 Ensure that only DIP Switches 1 and 8 are ON. If the device is not working try turning DIP Switch 1 OFF. On the 8301 web interface, go to Basic Settings -> Features and set the 'Line Out' Analog Output Level to “-20dBm 600 ohm (0.077 Vrms)”.
  • Page 20 8301 Installation Example with Valcom V-9941A Note there will be no talk back from the Valcom speakers. On the 8301 web interface, go to Basic Settings -> Features and set the 'Line Out' Analog Output Level to “0dBm 600 ohm (0.775 Vrms)”.
  • Page 21 8301 Installation Example with Valcom V-1109RTVA On the 8301 web interface, go to Basic Settings -> Features and set the 'Line Out' Analog Output Level to “0dBm 600 ohm (0.775 Vrms)”. To play DTMF tones and control the zones, make sure to enable Generate In-Band DTMF...
  • Page 22 8301 Installation Example with Valcom V-1094A On the 8301 web interface, go to Basic Settings -> Features and set the 'Line Out' Analog Output Level to “0dBm 600 ohm (0.775 Vrms)”.
  • Page 23 Set the he Battery Feed switch to off. Note there will be no talkback via the Valcom V-2924A On the 8301 web interface, go to Basic Settings -> Features and set the 'Line Out' Analog Output Level to “-10dBm 600 ohm (0.245 Vrms)”..
  • Page 24 Set DIP switch #4 for TALK BATTERY to the OFF position on the PA-2A to prevent damaging the SIP Paging Adapter. On the 8301 web interface, go to Basic Settings -> Features and set the 'Line Out' Analog Output Level to “0dBm 600 ohm (0.775 Vrms)”.
  • Page 25 8301 Installation Example with Viking PA-15 On the 8301 web interface, go to Basic Settings -> Features and set the 'Line Out' Analog Output Level to “0dBm 600 ohm (0.775 Vrms)”.
  • Page 26 Please contact us if there are additional amplifier models you wish to see included in this guide. Support (604) 454-3792 support@algosolutions.com...
