Page 1: User Guide

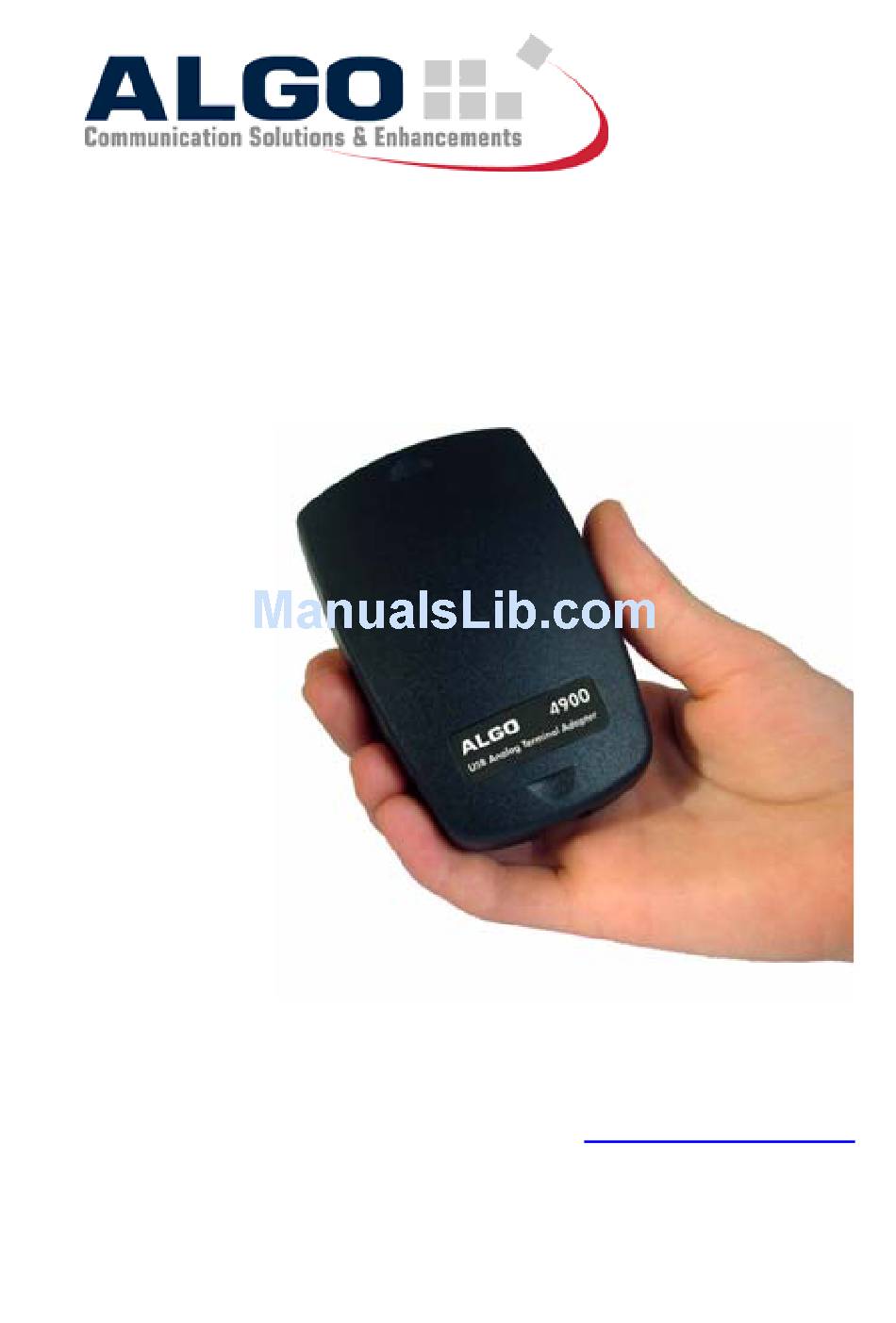

4900 USB ATA Analog Terminal Adapter for the Nortel IP Softphone 2050 User Guide Algo Communication Products Ltd. www.algosolutions.com DC4900-UG-11... - Page 2 Copyright © 2007 Algo Communication Products Ltd. All Rights Reserved. ® Algo is a registered trademark of Algo Communication Products Ltd. All other trademarks are the property of their respective owners. Document #DC4900UG-11; 24-January-2007 4900 USB Analog Terminal Adapter...
-
Page 3: Table Of Contents
4900 USB Analog Terminal Adapter Table of Contents Introduction ................4 Features.................. 5 Applications................5 Typical Connection Diagram ..........6 Package Contents..............6 Connections................7 Installation ................7 Troubleshooting ..............8 Specifications ................11 Warranty and Repair............. 12 About Algo ................13 Contact Information ............. -
Page 4: Introduction
Introduction Algo’s USB Analog Terminal Adapter enables the use of a traditional analog wired or cordless telephone, TTY/TDD terminal, fax machine (refer to footnote on page 5), or other analog device with a Nortel IP Softphone 2050 (Version 2 B254 or newer) for Business Communication Manager (BCM) or Communication Server 1000 (CS 1000). -
Page 5: Features
Fax functionality requires G.711 Codec (no T.38 Support). Fax performance may vary with PC and network capability. For this reason, Algo does not recommend the USB Analog Terminal Adapter for frequent multi-page fax traffic. Some PCs may require settings to improve audio performance necessary for fax applications. -
Page 6: Typical Connection Diagram
Typical Connection Diagram Package Contents • 4900 USB Analog Terminal Adapter • User Guide • 6 ft (1.8m) USB Cable 4900 USB Analog Terminal Adapter... -
Page 7: Connections
4900 USB Analog Terminal Adapter Connections Installation 1. Connect the 4900 USB ATA to the PC using the supplied USB cable. 2. The first time the USB ATA is plugged in, there will be a pause while Windows configures the device and locates the appropriate driver software. -
Page 8: Troubleshooting
3. Check that “USB Audio Device” appears under “Sound, video and game controllers” in the Windows Device Manager. If it does not, and the above conditions are correct, then see the troubleshooting section under USB in Windows Help. 4900 USB Analog Terminal Adapter... - Page 9 4900 USB Analog Terminal Adapter Other steps you can take to verify proper operation of the 4900: Check Equipment and Connections Lift the handset or go off-hook on your Telephone or device. Verify that IP Softphone 2050 indicates off- hook as well. If it does not, check the following: •...
- Page 10 Make a call to another Telephone. Verify that you can hear the other party, and that they can hear you. If this does not work, check that the audio settings in the IP Softphone 2050 are correct. 4900 USB Analog Terminal Adapter...
-
Page 11: Specifications
4900 USB Analog Terminal Adapter Specifications Dimensions and Weight Dimensions Width - 2-5/8" (67mm); Length - 4-3/16" (106mm); Height - 1-1/8" (29mm) Weight 100g (3.5 oz.) Telephony Ring voltage 60 Vrms Sinewave CLID Type GR-30-CORE (North American Standard) Analog Port... -
Page 12: Warranty And Repair
Warranty and Repair The Algo 4900 USB ATA is warranted to be free of defects in material and workmanship for a period of 18 months from the date of manufacture. A label on the bottom of the unit identifies the manufacturing code in the year and week format (0620YYXXXX for the twentieth week of 2006). -
Page 13: About Algo
4900 USB Analog Terminal Adapter About Algo Algo is a leading developer and manufacturer of professional quality telecom products available globally through telecom distributors and business telephone equipment resellers. Algo products include: • Desktop single-channel call recorders • Multi-user centralized call recording solutions •... -
Page 14: Sales
North American Support Toll Free: 1.877.884.2546 Email: support@algosolutions.com Europe, Middle East, Africa: Support Email: EMEAsupport@algosolutions.com Sales Email: EMEAsales@algosolutions.com Product Registration Register your Algo 4900 USB ATA for news, developments, updates, and support. To register, please visit: www.algosolutions.com/register 4900 USB Analog Terminal Adapter... - Page 15 4900 USB Analog Terminal Adapter User Guide...
-
Page 16: Related Products
IP Softphone 2050 V2. With the CCR2050, call records can be retrieved for playback and email, commented, searched, and sorted via an easy- to-use yet powerful software interface. www.algosolutions.com/2050 Algo Communication Products Ltd Toll-free (USA/Canada) 1.877.884.2546 Tel: 604.454.3790 Fax: 604.437.5726 sales@algosolutions.com support@algosolutions.com 4900 USB Analog Terminal Adapter...
