SETUP AND INSTALLATION

Important
Read thoroughly to understand essential safety information before installing the product permanently.
What is Included
The following items are included with this device:
8305 Multi-Interface IP Paging Adapter
Wall mount bracket and screws
Network cable
Two (2) pluggable terminal blocks
Flat head screwdriver
Quick Start Guide
2.1
Hardware Setup & Installation
Mounting Instructions
Use the supplied bracket to mount the 8305 horizontally. The following instructions can be used to install the 8305 on
a 1/2" drywall:
1. Use appropriate drywall anchors for #8 screws and pre-drill per
anchor manufacturer's instructions.
2. Insert 4 anchors into the wall, and then attach the bracket to the
wall anchors using #8 screws.
3. Snap the 8305 into the bracket.
UG-8305-030524
By default, these terminals provide a contact closure when the 8305 IP Paging Adapter
is active. Note this is a normally open relay only.
support@algosolutions.com
8305 Multi-Interface IP Paging Adapter

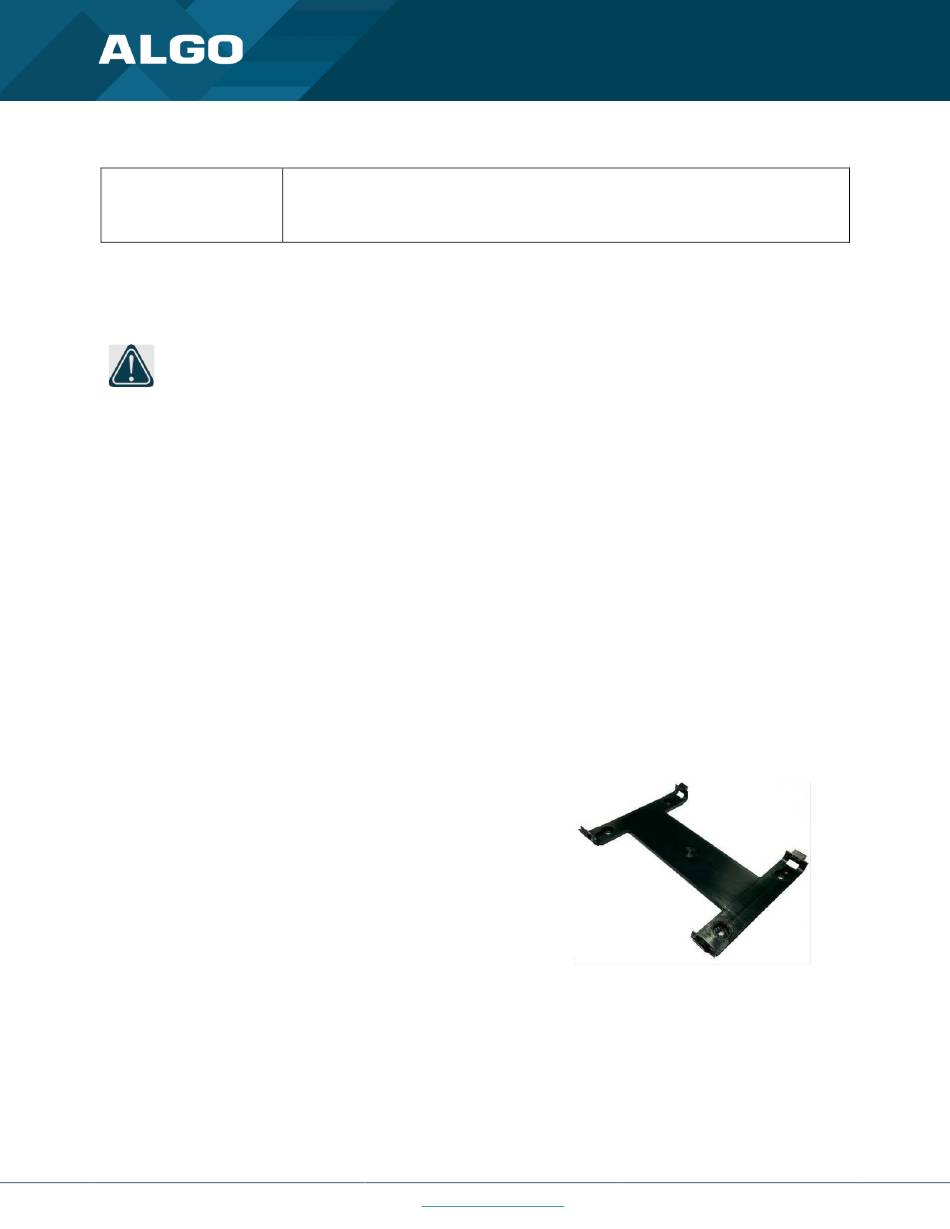

Figure 3: 8305 wall mount.
