Rubber Mallet
Carpenters Level
Tape Measure
Cordless Drill
Phillips & Robertson Drill Bits
2" hole Saw
It is highly recommended to view the assembly video prior to starting assembly!
Click here to View the assembly process or scan the QR code.
Manufactured by:
tel: 888-923-9813 | info@leisurecraft.com| web: www.leisurecraft.com

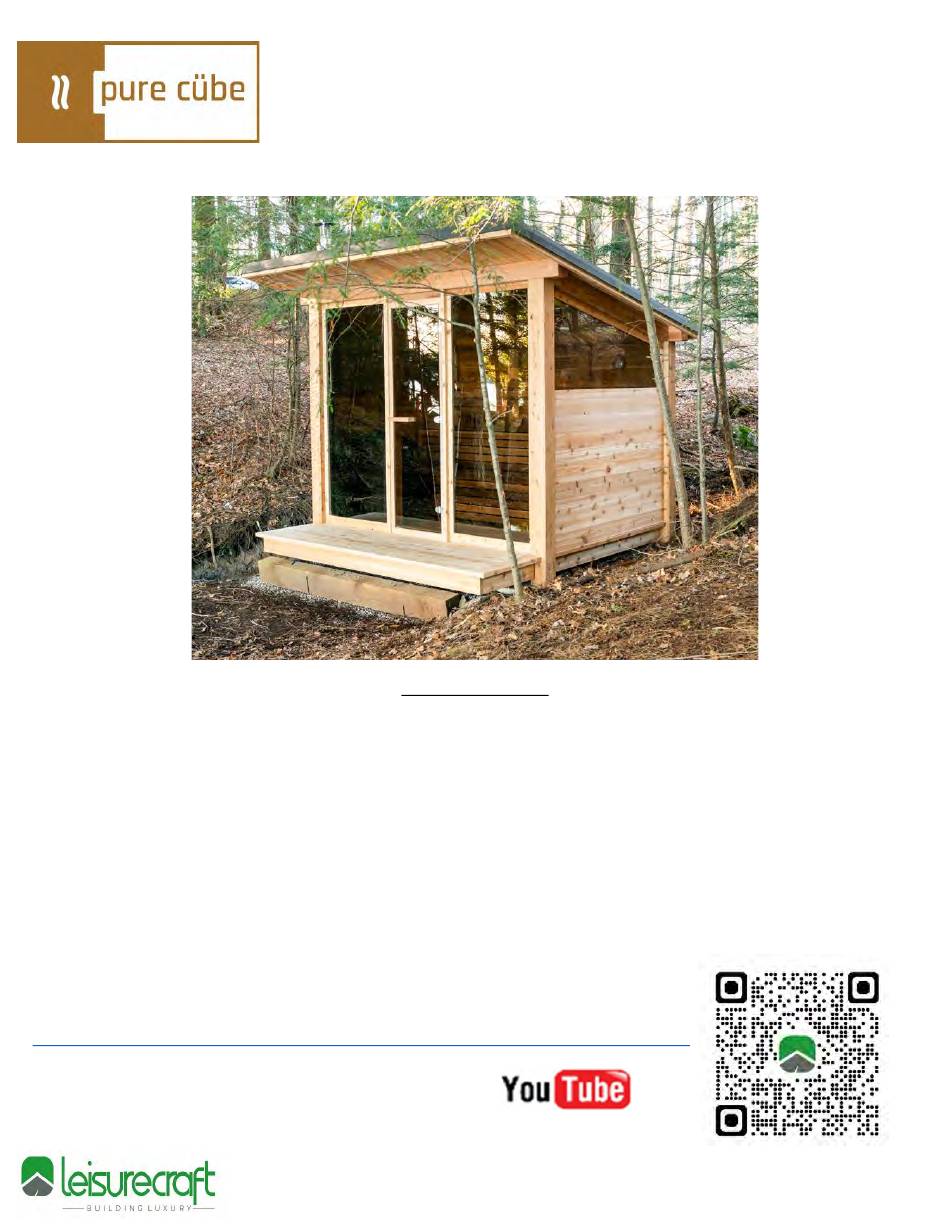

Mountain View
Outdoor Pure Cube
Assembly Instructions
Requirements:
2 People (recommended)
¼" Nut Driver
Step Ladder
Tin Snips
Jig Saw
Hammer
06/2024
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Dundalk LeisureCraft Pure Cube Mountain View
Summary of Contents for Dundalk LeisureCraft Pure Cube Mountain View
- Page 1 Mountain View 06/2024 Outdoor Pure Cube Assembly Instructions Requirements: 2 People (recommended) Rubber Mallet ¼” Nut Driver Carpenters Level Step Ladder Tape Measure Tin Snips Cordless Drill Jig Saw Phillips & Robertson Drill Bits Hammer 2” hole Saw It is highly recommended to view the assembly video prior to starting assembly! Click here to View the assembly process or scan the QR code.
- Page 2 Mountain View Outdoor Pure Cube Assembly Instructions Sauna Base Preparation Ensure the base for your sauna is level with a slight slope to the back for drainage. A solid base for your sauna is recommended and can be made from the following. Concrete Pad Wood Deck Crushed Stone...
- Page 3 Mountain View Outdoor Pure Cube Assembly Instructions Start the assembly of your Mountain View Sauna by locating the back and side floor joists. The L shaped joist will be for the back. Secure the back joist to the side joists using 2 – 3 ½” (89mm) screws ensuring the joists are flush to each other.
- Page 4 Mountain View Outdoor Pure Cube Assembly Instructions The final middle floor joists will be 2 joists back-to- back. Ensure the center of the joists is 16 ½” (42cm) from the previous joist. Only secure the joist closest to the front of the sauna at this time.
- Page 5 Mountain View Outdoor Pure Cube Assembly Instructions Also secure the joists on the end through the side with 2 - 2 ½” (64mm) screws ensuring the joists are flush to the side joist. Place the last middle floor that was left unsecured earlier.
- Page 6 Mountain View Outdoor Pure Cube Assembly Instructions Secure the posts using 2 – 3 ½” (89mm) screws from the side joists. Repeat for the opposite back corner post . Center the front posts (longer) on the seam between the double middle joists with the grooves facing the side and front walls.
- Page 7 Mountain View Outdoor Pure Cube Assembly Instructions Begin placing the floorboards ensuring the tongues are tight into the groove of the previous floorboard. (Use a rubber mallet to finesse into the grooves if needed) Secure the floorboard with 6 – 2 ½” (64mm) screws through the groove into the middle floor joists.
- Page 8 Mountain View Outdoor Pure Cube Assembly Instructions Begin placing the porch floorboards ensuring the tongues are tight into the groove of the previous floorboard using a rubber mallet to finesse into the grooves if needed. Secure the floorboards with 7 – 2 ½” (64mm) screws through the groove into the middle floor joists.
- Page 9 Mountain View Outdoor Pure Cube Assembly Instructions Place the first side crossbeam. Ensure the notch is facing the inside and the deeper part of the notch faces the front of the sauna. (see picture on right) Secure the side beam using 2 – 3 ½” (89mm) screws at each end of the beam.
- Page 10 Mountain View Outdoor Pure Cube Assembly Instructions Secure the back posts to the floor using 2 – 3 ½” (89mm) screws on an angle through the grooves on each side of the post. Begin placing the short wall boards in between the back posts ensuring the grooves are tight into the wall board beneath it.
- Page 11 Mountain View Outdoor Pure Cube Assembly Instructions Place the side wall boards in between the front & back posts on both sides of sauna ensuring the grooves are tight into the wall board beneath it. Secure the wall boards to the posts at either end using 2 –...
- Page 12 Mountain View Outdoor Pure Cube Assembly Instructions Place the back cross beam back onto the posts. Use a rubber mallet to ensure cross beam is tight to the posts. Slide the side window panels into the grooves on the front & back posts on either side. Place the side crossbeams back on the posts.
- Page 13 Mountain View Outdoor Pure Cube Assembly Instructions Secure the end of the cross beam to the post using an 8” (203mm) screw. Repeat for all 4 corners. Secure the back cross beam to the middle posts using an 8” (203mm) screw in each. Place the middle cross beam into the notches of the side beams ensuring the angle faces the back of the sauna.
- Page 14 Mountain View Outdoor Pure Cube Assembly Instructions Slide the front glass panels into the grooves on the front beam and the posts. Use the rubber mallet to ensure they are tight into the grooves of the post if necessary. Place the door panel between the 2 glass panels ensuring that the door opens to the outside.
- Page 15 Mountain View Outdoor Pure Cube Assembly Instructions Locate the center roof board. It will have a groove on both sides. Place the board on top of the roof ensuring it is perfectly centered and that it overhangs 6” (15cm) over the back of the sauna. Secure the roof board to the beams using a 3 ½”...
- Page 16 Mountain View Outdoor Pure Cube Assembly Instructions The final board will only have a tongue and no groove. Secure with a 3 ½” (89mm) screw into each beam. Repeat the process for the other side of the roof. Place the trim piece on the side of the roof. Ensure they are flush to the top of the roof boards and the ends and secure with 6 –...
- Page 17 Mountain View Outdoor Pure Cube Assembly Instructions Place the metal trim piece on the side of the roof. Secure with 5 of the provided black screws. (Note: You may need to cut the trim shorter if it is not flush on each end.) Repeat on other side.
- Page 18 Mountain View Outdoor Pure Cube Assembly Instructions Continue adding the roof panels in the same manner ensuring the ribs of the panel lock into the previous panel. Cut the final panel to fit and snap it onto the previous panel. Slide the side cap piece over the metal side trim and roof panel.
- Page 19 Mountain View Outdoor Pure Cube Assembly Instructions Secure the 4 corner posts to the sauna with 2 – 8” (203mm) screws. Bring the bench support brackets into the sauna. Mark the top of the angled piece of the bench supports, one each post on the back wall. Place the bench wall supports above the marks and secure with 3 –...
- Page 20 Mountain View Outdoor Pure Cube Assembly Instructions Place the top bench on the bench supports and mark the top of the bench on the back posts. Remove the top bench. Place the bench wall supports below the marks and secure with 3 – 2 ½” (64mm) screws. Repeat for the other 2 back wall sections.
- Page 21 Mountain View Outdoor Pure Cube Assembly Instructions Place the remaining bench supports under the supports of the top bench and secure the supports to the top bench from underneath using 2 – 2 ½” (64mm) screws per support. Place the lower bench onto the supports and repeat the process for attaching the supports to the bench from underneath.
- Page 22 Mountain View Outdoor Pure Cube Assembly Instructions Place the backrest 8” (20cm) above the top bench on the back wall. Secure it to the back wall with 2 ½” (64mm) screws. Screw between the slats of the support to make the screws less visible.
- Page 23 MAINTAINING YOUR SAUNA AFTER INSTALLATION Interior It is recommended to vacuum or sweep out the inside of your sauna frequently to remove dirt and other debris. Under normal conditions, a slight wash of the floor and benches with warm soapy water several times a year will maintain its cleanliness. Leisurecraft offers a sauna room cleaner that can be used pure or diluted at a 4-1 ratio.
- Page 24 Exterior Depending on the humidity and weather conditions in your area, the cedar will either shrink or expand based on the amount of moisture absorption. The desired effect is to have the cedar expand into the bands therefore making the sauna staves much tighter. Over time the lumber will weather naturally as a result of sun and rain, it will change into a weathered grey colour.
-
Page 25: Warranty
WARRANTY LeisureCraft warrants our saunas against defects in materials and workmanship under normal/residential use for a period of five (5) years, as applicable, from the date of receipt of the product by the original end-user consumer. This warranty does not apply to normal wear and tear and/or natural weather conditions.
