Ver. 3.2

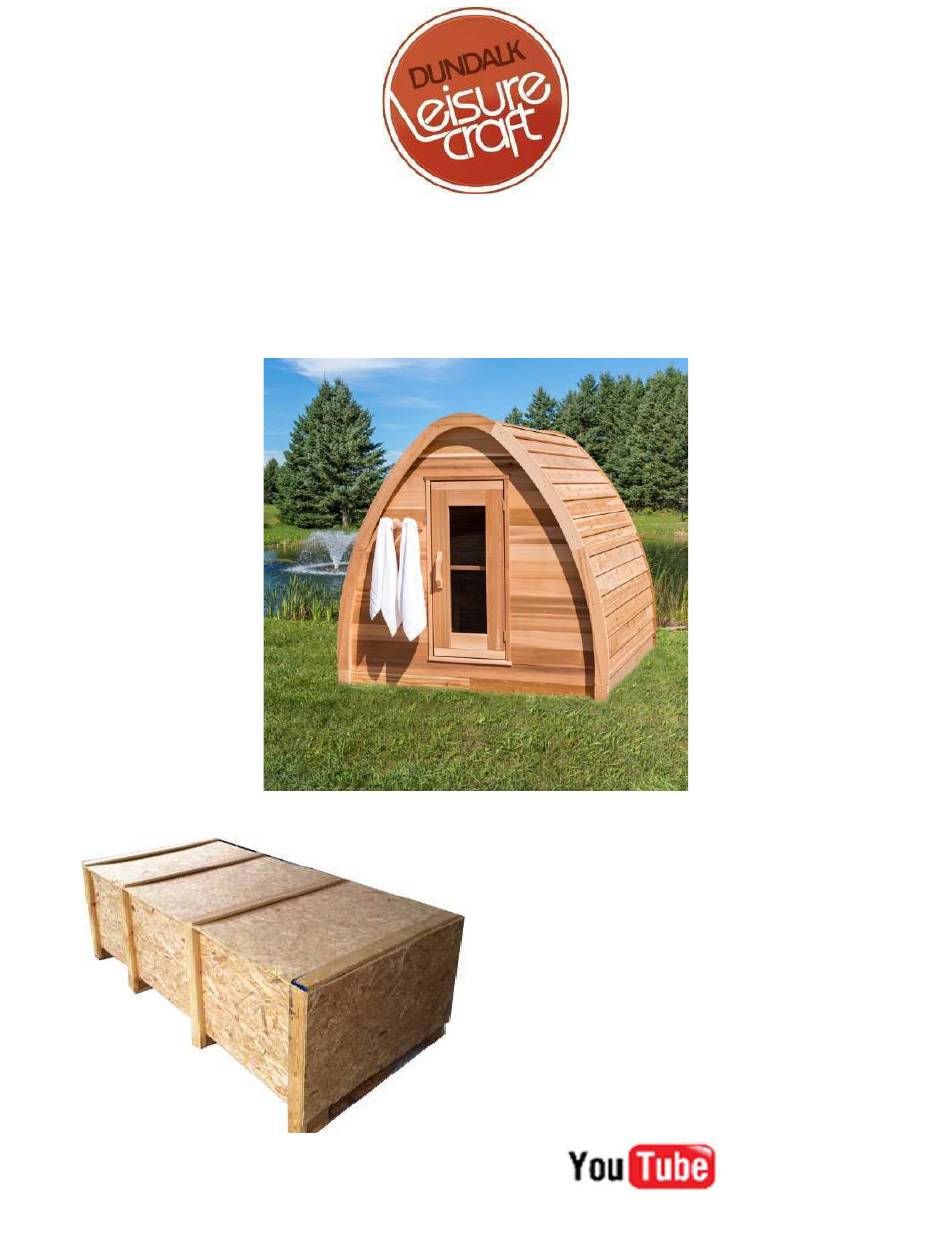

Dundalk LeisureCraft Cedar Mini Pod Sauna
Assembly Instructions
Please read and understand the complete instructions prior to assembly and use of your sauna. Customer agrees not to hold
Dundalk LeisureCraft Inc. and any of its authorized dealers liable for improper installation, maintenance and repair of this product
Requirements:
2 People (recommended)
* Carpenter's Hammer
* Step Ladder
* Cordless Drill (we supply the bit)
* Tape Measure
Carpenter's Level
* Impact Driver
* 7/16" open end, socket or crescent wrench
* Crowbar
* 1 ½" or less staples or nails to fasten bevel siding
View the assembly process on
ph: 519-923-9813 | info@dundalkleisurecraft.com| web: www.dundalkleisurecraft.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Dundalk LeisureCraft Mini Pod
Summary of Contents for Dundalk LeisureCraft Mini Pod
- Page 1 Please read and understand the complete instructions prior to assembly and use of your sauna. Customer agrees not to hold Dundalk LeisureCraft Inc. and any of its authorized dealers liable for improper installation, maintenance and repair of this product Requirements: 2 People (recommended) * Carpenter’s Hammer...
- Page 2 Index Sauna Base Preparation (Standard) – Page 3 Cedar Mini Pod Sauna Assembly (Standard) – Page 4 to 13 Bench Installation – Page 14 & 15 Electric Heater Installation – Page 16 to 18 Sauna Vent Kit – Page 19 Sauna Light –...
- Page 3 Dundalk LeisureCraft Cedar Mini Pod Sauna Assembly Instructions Sauna Base Preparation A solid base for your pod sauna is recommended and can be made from any of the following. Concrete Pad Wooden Deck Patio Stones/Paver Blocks It is recommended to build your base larger than required to provide a sitting area for cooling off during your sauna session.
- Page 4 Dundalk LeisureCraft Cedar Mini Pod Sauna Assembly Instructions Lay the floor pieces upside down on your level base. Note what sides have the tongue and groove on them and slide them into each other Secure floor pieces together using 2 ½” (64mm) screws.
- Page 5 Dundalk LeisureCraft Cedar Mini Pod Sauna Assembly Instructions The wall should overhang ½” (13mm) on each side of the floor assembly. Ensure the back wall is flush to edge, attach wall to floor with 2 ½” (64mm) screws using the pre drilled holes.
- Page 6 Dundalk LeisureCraft Cedar Mini Pod Sauna Assembly Instructions Install a stave across the walls for support. Make sure both walls are square and then secure the stave with a 2 ½” (64mm) screw at each end. *This is temporary and will be removed later.
- Page 7 Dundalk LeisureCraft Cedar Mini Pod Sauna Assembly Instructions Slide the front top wall piece over the door and onto the side wall panels. Secure the top wall panel on both sides with 2 ½” (64mm) screws. Install the top back wall panel in the same manner as the front.
- Page 8 Dundalk LeisureCraft Cedar Mini Pod Sauna Assembly Instructions Pre place 2 ½” (64mm) screws into the pocket holes. Ensuring the ends are flush, fasten the two halves of the roof top board together using 2½” (64mm) screws. Using the markings on the front and back top walls, center the assembled top stave.
- Page 9 Dundalk LeisureCraft Cedar Mini Pod Sauna Assembly Instructions Continue adding staves working down the sauna. When you come to the support staves, remove the screws from the support stave, tap it tightly into place and then secure with 2 ½” (64mm) screws.
- Page 10 Dundalk LeisureCraft Cedar Mini Pod Sauna Assembly Instructions Peel off the rest of the backing, and smooth the entire piece onto the wall. Continue applying the membrane to the sauna in the same manner, overlapping the reflective part on the lower membrane.
- Page 11 Dundalk LeisureCraft Cedar Mini Pod Sauna Assembly Instructions Using 2 ½” (64mm) screws, install the top middle trim piece centered on the end of the staves. If installed correctly, the trim pieces should be about 1” (25mm) under the bottom of the stave.
- Page 12 Dundalk LeisureCraft Cedar Mini Pod Sauna Assembly Instructions Use the spacer block for consistent spacing between the bevel siding pieces. For easier installation, you can cut or break spacer in half to use at both ends at the same time.
- Page 13 Install towel hooks at the desired height on outer wall using 1 ½” (38mm) screws. Install the thermometer centered above the door using a 1 ½“ (38mm) screw. Congratulations! Sauna The main structure of your Cedar Mini Pod is complete. ph: 519-923-9813 | info@dundalkleisurecraft.com| web: www.dundalkleisurecraft.com...
- Page 14 Dundalk LeisureCraft Cedar Mini Pod Sauna Assembly Instructions Bring in the back wall bench and the 2 back wall bench supports and position roughly where they will be on the back wall. Place the bench on top, and adjust the positon of the supports so that they are directly under the bench cross members, flush with the front trim.
- Page 15 Dundalk LeisureCraft Cedar Mini Pod Sauna Assembly Instructions Pre place 2 ½” (64mm) screws into the wall bench supports. Ensure the bench is level and then secure the bench supports to the wall with the pre placed screws. Secure the bench to the support from the top using 1 ½”...
- Page 16 Dundalk LeisureCraft Cedar Mini Pod Sauna Assembly Instructions Using the 2 headrests put together as in the picture as a guide for the heater to sit on, Measure the proper distances for the heater template according to the heater manufacturers instructions.
- Page 17 Dundalk LeisureCraft Cedar Mini Pod Sauna Assembly Instructions Hang the heater on the two upper screws. Install the two ¼" x 1" hex head lag screws (supplied with the heater) into the two lower mounting holes. Ensure heater is level, tighten all 4 hex head lag screws to lock the heater in place.
- Page 18 Dundalk LeisureCraft Cedar Mini Pod Sauna Assembly Instructions Center the heater guard around the heater and ensure it is level. Screw the heater guard into the wall using the pre placed screws. Rinse the rocks with water before placing in the heater.
- Page 19 Dundalk LeisureCraft Cedar Mini Pod Sauna Assembly Instructions In most cases, venting is not required for proper sauna function, however it increases air flow circulation as well as ventilation when the sauna is not in use. Many people prefer not to install vents in pre fabricated saunas.
- Page 20 We cannot supply any other electrical components needed to wire up the light.. For the mini pod sauna, you can use weatherproof boxes, conduit and light switches. Weatherproof Light Switch (purchased separately) Weatherproof Conduit &...
-
Page 21: Product Maintenance
Dundalk LeisureCraft Cedar Mini Pod Sauna Assembly Instructions You can also install the light on the ceiling. ( Do not install light where you may hit your head on it) Installing the light under one of the benches can create a relaxing ambiance within the sauna to enjoy. - Page 22 Congratulations on the assembly of your new Red Cedar Mini Pod Sauna! For assistance in the assembly of your Cedar Pod sauna please visit our support page at: https://www.dundalkleisurecraft.com/support/ Or to view the assembly process got to: https://www.youtube.com/watch?v=cbRF0HzPpAU&t=44s ph: 519-923-9813 | info@dundalkleisurecraft.com| web: www.dundalkleisurecraft.com...
- Page 23 This natural weathering will not harm the wood or impair the sauna’s performance. If you wish to retain the natural color of your Dundalk Leisurecraft Sauna, there are many cedar stains on the market and almost as many opinions as to which is best.
-
Page 24: How To Take A Sauna
Children must be supervised by an adult. WARRANTY Dundalk LeisureCraft Inc. warrants our saunas against defects in materials and workmanship under normal/residential use for a period of five (5) years, as applicable, from the date of receipt of the product by the original end-user consumer.
