Dundalk LeisureCraft Indoor Cabin Sauna Assembly Instructions Manual

Western red cedar
Hide thumbs Also See for Indoor Cabin Sauna:

Advertisement

Dundalk LeisureCraft

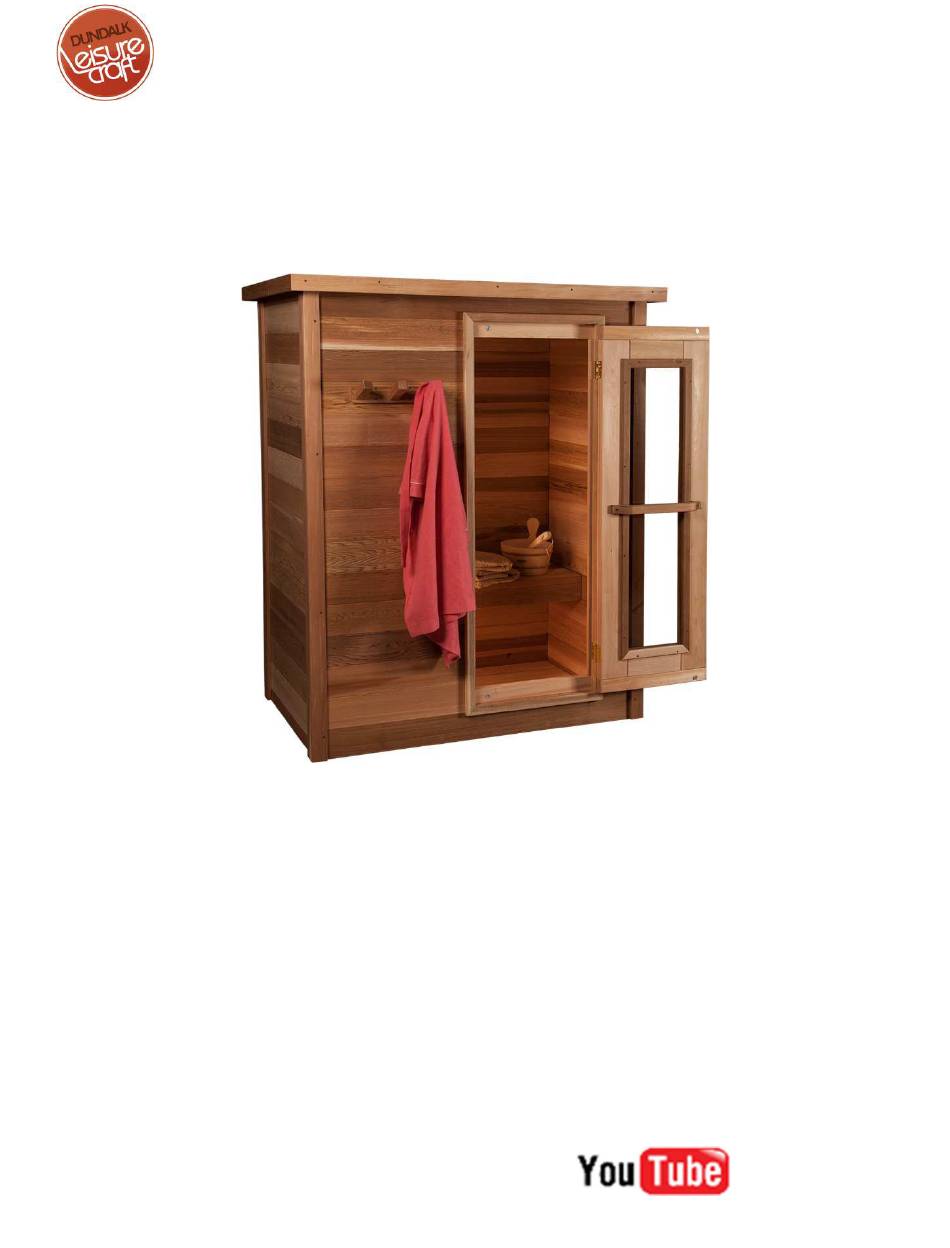

Western Red Cedar Indoor Cabin Sauna

Assembly Instructions

Please read and understand the complete instructions prior to assembly and use of your sauna. Customer agrees not to hold
Dundalk LeisureCraft Inc. and any of its authorized dealers liable for improper installation, maintenance and repair of this product
Requirements:
* 2 People (recommended)
*Rubber Mallet
*Carpenter's Hammer
*6' Step Ladder
*Cordless Drill (we supply the bit)
*Hammer
*7/16" Wrench
*Tape Measure
View the assembly process on
Ph: 519-923-9813 | Fax: 866-458-7583 | Web: www.dundalkleisurecraft.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the Indoor Cabin Sauna and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Dundalk LeisureCraft Indoor Cabin Sauna

  • Page 1: Assembly Instructions

    Please read and understand the complete instructions prior to assembly and use of your sauna. Customer agrees not to hold Dundalk LeisureCraft Inc. and any of its authorized dealers liable for improper installation, maintenance and repair of this product Requirements:...
  • Page 2 Dundalk LeisureCraft Cedar Indoor Cabin Sauna Assembly Instructions Lay out and organize all of the sauna pieces. Locate the 2 pieces marked “Bottom Side” Using the provided 4 - “T-Nuts”, tap them into the holes on the bottom of the side stave with a hammer.
  • Page 3 Dundalk LeisureCraft Cedar Indoor Cabin Sauna Assembly Instructions Note that the grooves in the bottom staves are to face inwards towards each other. Be sure to wash your hands to prevent grease from the threaded rods getting on any of your wood sauna pieces.
  • Page 4 Dundalk LeisureCraft Cedar Indoor Cabin Sauna Assembly Instructions In the same method, place side wall staves on either side. Organize your pieces, front, back and sides. You will want to have many of each ready and nearby for easier installation.
  • Page 5 Dundalk LeisureCraft Cedar Indoor Cabin Sauna Assembly Instructions Once the fronts and back are installed, insert another side stave on both sides. Repeat this order all the way to the top. Front, Back ,Sides! When you reach this stage, its time to install the pre hung door.
  • Page 6 Dundalk LeisureCraft Cedar Indoor Cabin Sauna Assembly Instructions When you have the walls built around halfway to the top you can install the outer door handle. Place 2” screws into the pre drilled holes. Measure 32” from top of door to middle of handle and then center handle and secure with the 2”...
  • Page 7 Dundalk LeisureCraft Cedar Indoor Cabin Sauna Assembly Instructions The top staves will be “labelled”. Install them on the walls they are labelled for. Locate the 4 washers, 4 nuts and the wrench. Place the washer then the nut on the threaded rods and tighten with wrench.
  • Page 8 Dundalk LeisureCraft Cedar Indoor Cabin Sauna Assembly Instructions Find one of the roof trim pieces. It will have a hole in end like in picture. Place the roof trim on top of the side wall. The holes will go over the threaded rods.
  • Page 9 Dundalk LeisureCraft Cedar Indoor Cabin Sauna Assembly Instructions Tap the other roof trim piece flush into position using the rubber mallet. Screw the roof staves into the front and back walls using 2 ½” screws. Screw the roof trim piece into side wall in same manner as other side.
  • Page 10 Dundalk LeisureCraft Cedar Indoor Cabin Sauna Assembly Instructions Using 1 ½” screws, attach towel hanger in desired location. Measure to the middle of the inside of the door and secure the inside handle/towel hanger with 2 ½” screws ensuring it is centered and level.
  • Page 11 Dundalk LeisureCraft Cedar Indoor Cabin Sauna Assembly Instructions Line up the remaining brackets to the supports on bottom of the bench. Secure benches to the brackets using 1 ½” screws making sure to screw between the slats of the bench.
  • Page 12 Dundalk LeisureCraft Cedar Indoor Cabin Sauna Assembly Instructions Place the duckboard floor in front of the benches on floor. Grab your interior trim pcs. Measure each of the 4 corners inside your sauna and cut the trim pieces accordingly. Place interior trim pieces flush in corners and secure with supplied nails.
  • Page 13 Dundalk LeisureCraft Electric Heater Installation Instructions To install the electric heater, Place heater on top Mark the placement of the heater brackets. of the included box of sauna rocks to get the correct height for installation. Place heater on wall brackets.
  • Page 14 Dundalk LeisureCraft Electric Heater Installation Instructions Assemble remaining front support to the 2 ends Stand the 2 sides of the heater guard on edge in the same manner as previous step. with pre-drilled holes on the bottom. Screw front guard support to either side using (2) –...
  • Page 15 Dundalk LeisureCraft Electric Heater Installation Instructions Secure the vent cover pieces with 1 ½” screws as Using supplied screws, secure vent on the shown. inside of sauna. Ensure the vent cover slides freely before screwing in tightly Ph: 519-923-9813 | Fax: 866-458-7583 | Web: www.dundalkleisurecraft.com...
  • Page 16 Congratulations on the assembly of your new Cedar Indoor Cabin Sauna ! For assistance in the assembly of your cedar indoor cabin sauna please visit our support page at: https://www.dundalkleisurecraft.com/support/ Or to view the assembly process got to: https://www.youtube.com/watch?v=67c-o20fKCo Ph: 519-923-9813 | Fax: 866-458-7583 | Web: www.dundalkleisurecraft.com...
  • Page 17: Warranty

    7. Do NOT use commercial wood sealers from local lumberyards or hardware stores. These are not designed to withstand the sauna temperatures or humidity! 8. Contact your local dealer or Dundalk LeisureCraft directly if you have questions or concerns regarding your product.
