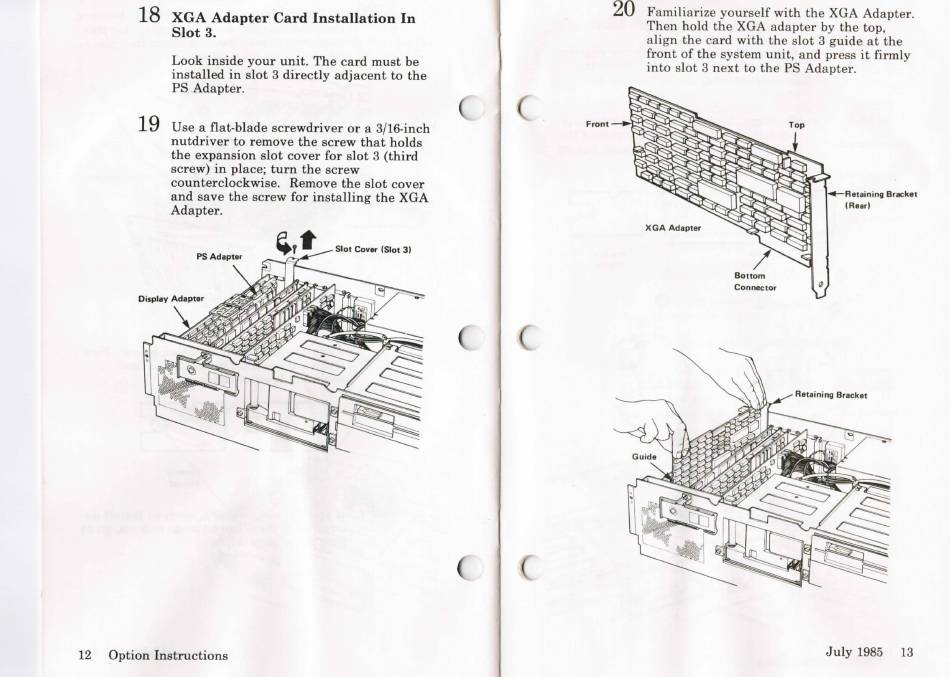

XGA Adapter Card Installation In
Slot 3.
Look inside your unit. The card must be
installed in slot 3 directly adjacent to the
PS Adapter.
19
Use a flat-blade screwdriver or a 3/l6-inch
nutdriver to remove the screw that holds
the expansion slot cover for slot 3 (third
screw) in place; turn the screw
counterclockwise. Remove the slot cover
and save the screw for installing the XGA
Adapter.
Stot Cover (Stot 3)
12 Option Instructions
20
Familiarize yourself with the XGA Adapter.
Then hold the XGA adapter by the top,
align the card with the slot 3 guide at the
front of the system unit, and press it firmly
into slot 3 next to the PS Adapter.
XGA Adapter
Connector
'-Retaining Bracket
(Rear)
Retaining Bracket
