23

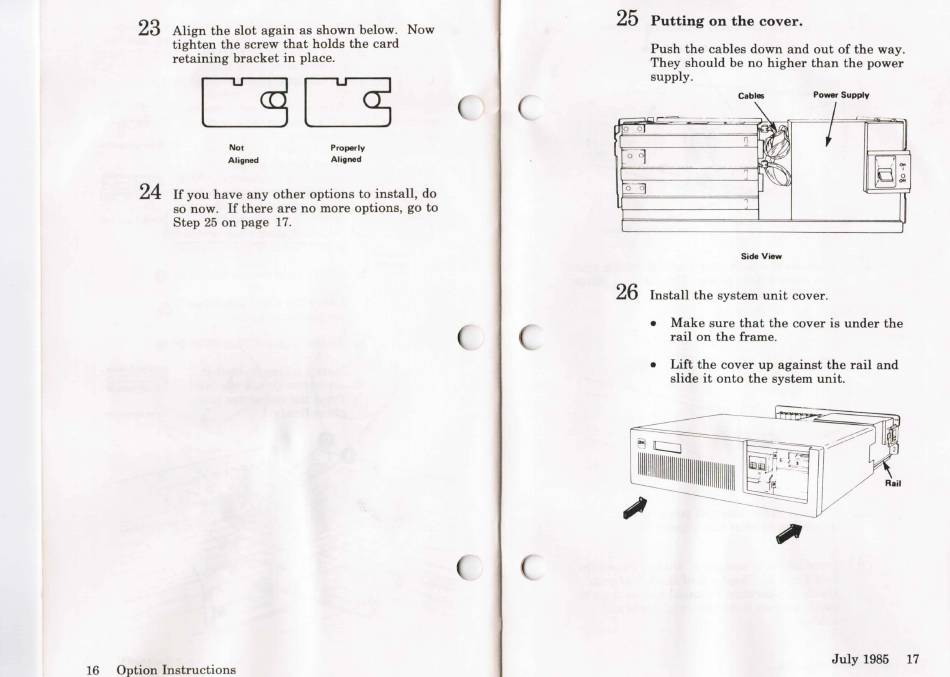

Align the slot again as shown
below.
Now
tighten the screw that holds the card
retaining bracket in
place.
Not
Aligned
Properly
Aligned
24
If you have any other options to
install,
do
so
now.
If there are no more options, go to
Step 25 on page 17.
16
Option Instructions
25
Putting on the cover.
Push the cables down and out of the way.
They should be no higher than the power
supply.
Cables
Power Supply
Side View
26
Install the system unit
cover.
•
Make sure that the cover is under the
rail on the frame.
•
Lift the cover up against the rail and
slide it onto the system unit.
~
rr:::::J
IIIII!IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII
R.il
,jIt
July 1985
17
