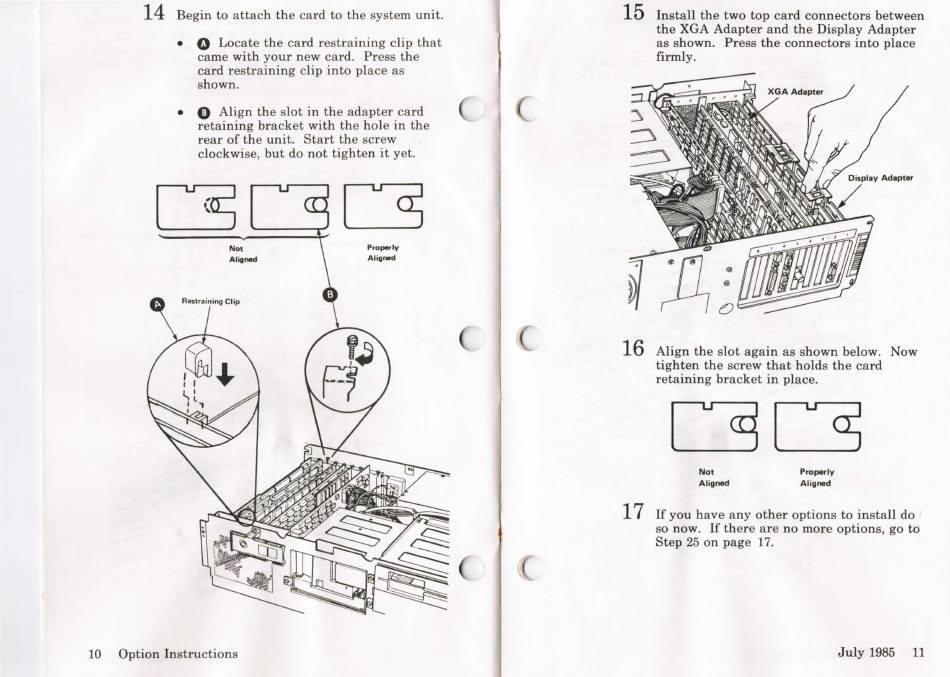

14
Begin to attach the card to the system unit.
• 0
Locate the card restraining clip that
came with your
new
card. Press the
card restraining clip into place as
shown.
• 0
Align the slot in the adapter card
retaining bracket with the hole in the
rear of the unit. Start the screw
clockwise, but
do
not tighten it yet.
Not
Aligned
10
Option Instructions
Properly
Aligned
15
Install the two
top
card connectors between
the XGA Adapter
and
the Display Adapter
as
shown.
Press the connectors
into
place
firmly.
16
Align the slot again as shown
below. Now
tighten the screw
that holds the
card
retaining bracket in
place.
Not
Aligned
Properly
Aligned
17
If you have any
other
options to install do
so
now.
If there are
no more
options, go to
Step
25
on
page
17.
July 1985
11
