IBM Extended Graphics Adapter Instructions Manual page 7

11

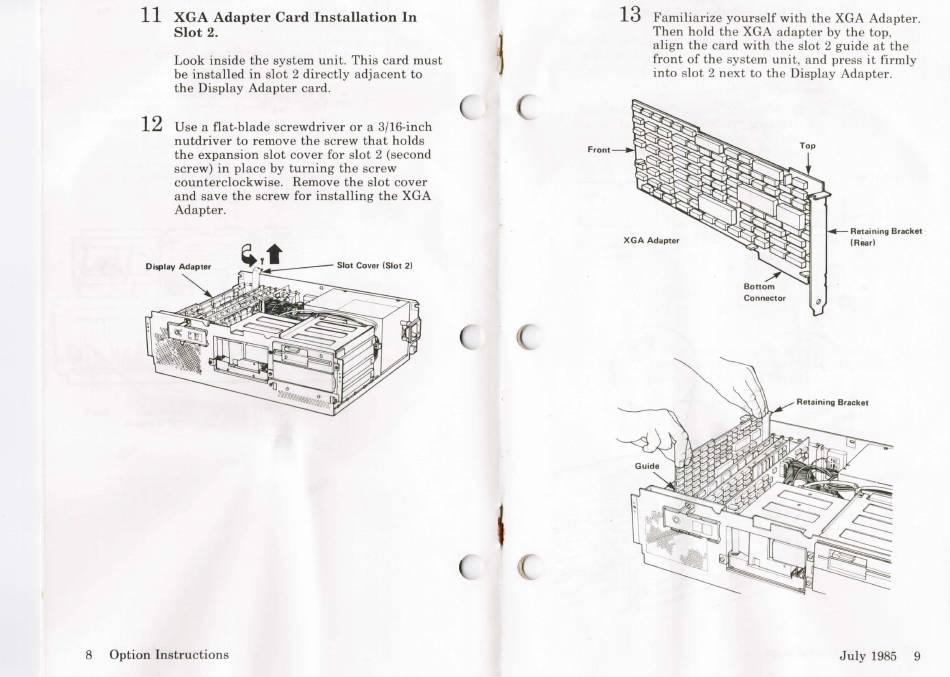

XGA Adapter Card Installation In
Slot 2.
Look inside the system unit. This card must
be installed in slot 2 directly adjacent to
the Display Adapter card.
12
Use a flat-blade screwdriver or a 3/16-inch
nutdriver to remove the screw that holds
the expansion slot cover for slot 2 (second
screw) in place by turning the screw
coun terclockwise. Remove the slot cover
and save the screw for installing the XGA
Adapter.
Display Adapter
~r_----
Slot Cover (Slot 2)
8 Option Instructions
Front
13
Familiarize yourself with the XGA Adapter.
Then hold the XGA adapter by the top,
align the card with the slot 2 guide at the
front of the system unit, and press it firmly
into slot 2 next to the Display Adapter.
XGA Adapter
Connector
Retaining B.racket
(Rear)
Retaining Bracket
July 1985 9
